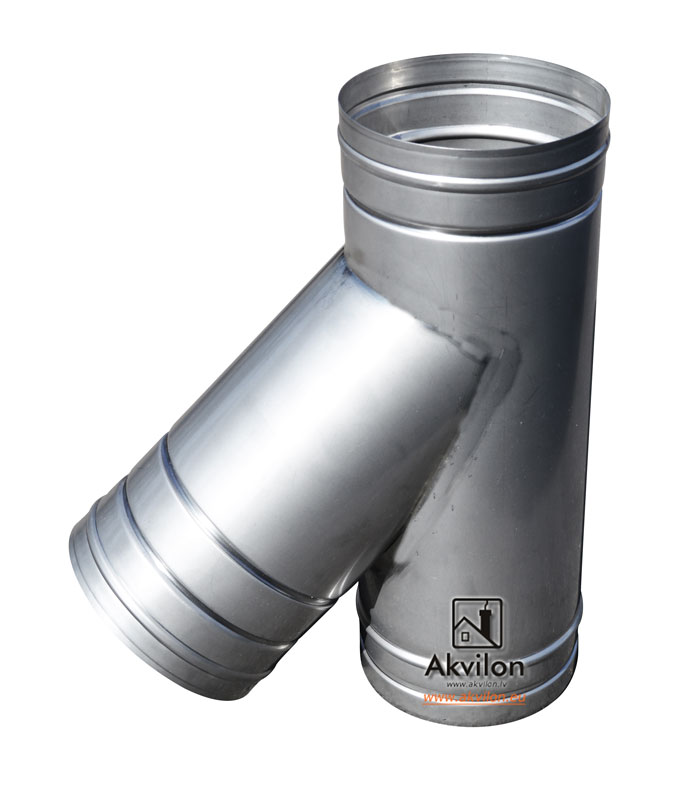

Flue T-piece 45°
The indicated price is valid ordering till 05.09.2025.
The T-piece (T-type tee) is used to connect the heating appliance or the horizontal section of the chimney to the vertical flue. It can also serve as an access point for inspecting and cleaning the vertical chimney section, promoting safe and efficient chimney operation.
Main advantages:
- Adaptability: Perfect for various heating systems and chimney configurations.
- Complete Set: When constructing a chimney system, it is typically used in conjunction with a cleaning hatch (T-connector with inspection hatch) and condensate drain, ensuring full functionality.
- Better draught: A 45° T-piece with a smooth rise improves the draught of the flue compared to a traditional 90° T-piece, thus improving system efficiency and reducing flue gas accumulation.
Choose the right T-piece for your needs!
Thanks to its universal design and adaptability to different installation solutions, the T-piece is an important part of your flue system.
Ordering options:
On request, we can manufacture not only 45° T-pieces, but also any other angle according to the customer's specific needs. These custom components ensure a personalized approach and optimal fit for your chimney system.

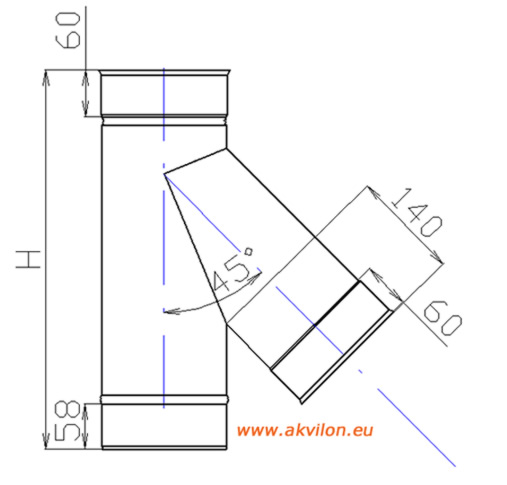

| D (mm) | 80 | 100 | 115 | 120 | 130 | 150 | 160 | 180 | 200 | 225 | 250 | 300 | 350 | 400 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| H | 280 | 305 | 315 | 330 | 350 | 380 | 400 | 415 | 450 | 450 | 450 | 450 | 450 | 450 |
| Article | DVPV45080 | DVPV45100 | DVPV45115 | DVPV45120 | DVPV45130 | DVPV45150 | DVPV45160 | DVPV45180 | DVPV45200 | DVPV45225 | DVPV45250 | DVPV45300 | DVPV45350 | DVPV45400 |
| On stock | on request | available | on request | available | available | available | available | available | available | on request | on request | on request | on request | on request |
Diameters over 200mm can be produced within 3-10 working days upon request
Manufacturer: SIA Akvilon
Material: Stainless steel AISI 304L/316L, wall thickness from 0,6mm
Standard lengths (mm): see table
Diameter range (mm): 80-800
Certificate: CE
