Flue T-piece with removable branch
The indicated price is valid ordering till 05.09.2025.

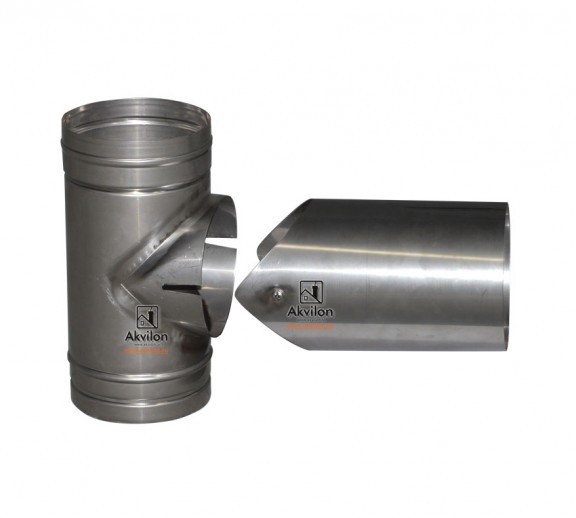

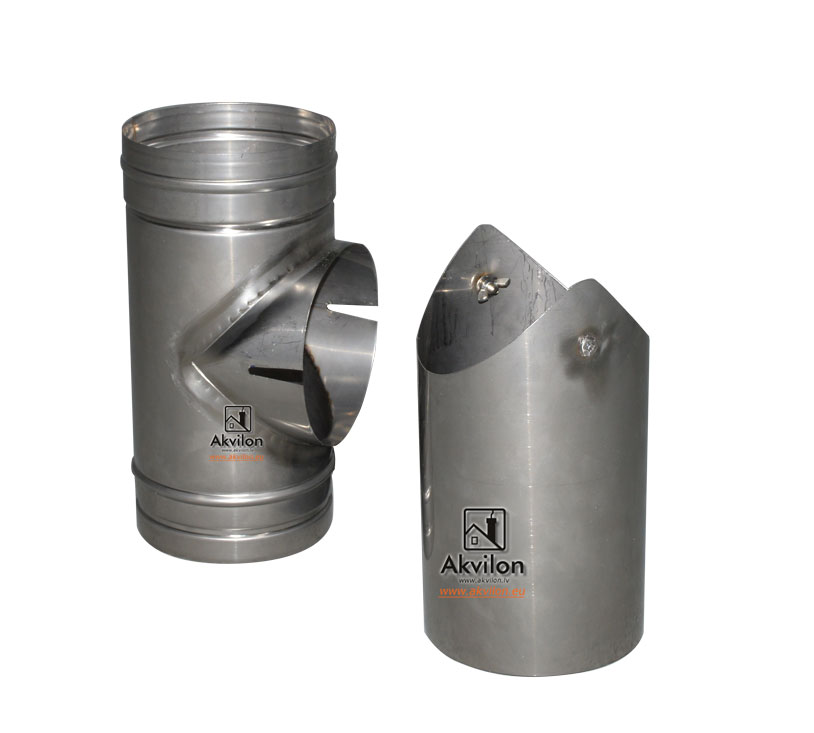

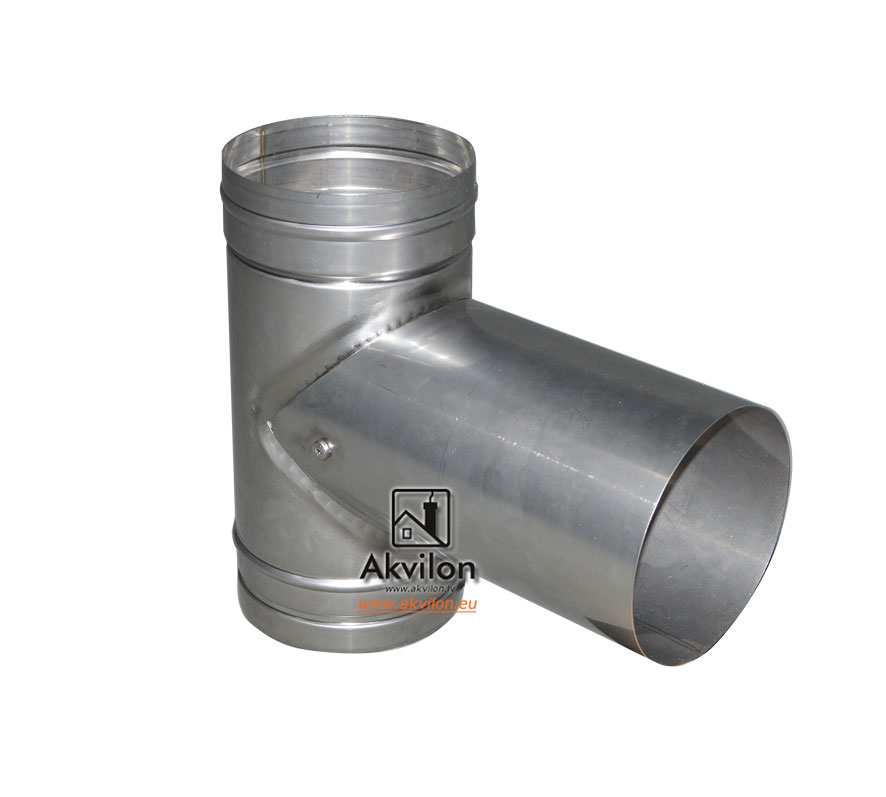

The T-piece with removable side connection branch (Stainless Steel Chimney Tee Connector) is designed for efficient and easy installation of chimneys. This solution consists of two parts:
- The vertical part – the main part of the T-piece that connects the vertical and horizontal flue sections.
- The snout or horizontal part – a removable part that is added after the installation of the tee.
Main advantages:
- Easy mounting: Due to the removable side connection of the T-piece, mounting can be done by dropping the T-Piece through the flue channel from top to bottom.
- Minimal hole required: This design allows the size of the hole to be made in the chimney to be minimised, making installation more visually attractive and efficient.
- Adaptability: The tee is suitable for a wide range of flue systems and heating appliances.
Comparison with the classic T-piece:
The installation of a classic T-piece requires a hole in the brick chimney that is larger than the height of the T-piece, which can cause inconvenience and extra work. The T-piece with removable side connection eliminates this problem by offering a modern and practical alternative.
Order the T-piece with removable side connection!
Choose an efficient solution that will ensure a fast and high-quality mounting while keeping the aesthetic appearance of your chimney.
| D (mm) | 80 | 100 | 115 | 120 | 130 | 150 | 160 | 180 | 200 | 225 | 250 | 300 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Article | DVPVN90080 | DVPVN90100 | DVPVN90115 | DVPVN90120 | DVPVN90130 | DVPVN90150 | DVPVN90160 | DVPVN90180 | DVPVN90200 | DVPVN90225 | DVPVN90250 | DVPVN90300 |
| Availability | available | available | on request | available | available | available | available | available | available | on request | on request | on request |
Diameters over 200mm can be produced within 3-10 working days upon request
Manufacturer: SIA Akvilon
Material: Stainless steel AISI 304L/316L, wall thickness from 0,6 mm
Diameter range (mm): 80-800
Certificate: CE
