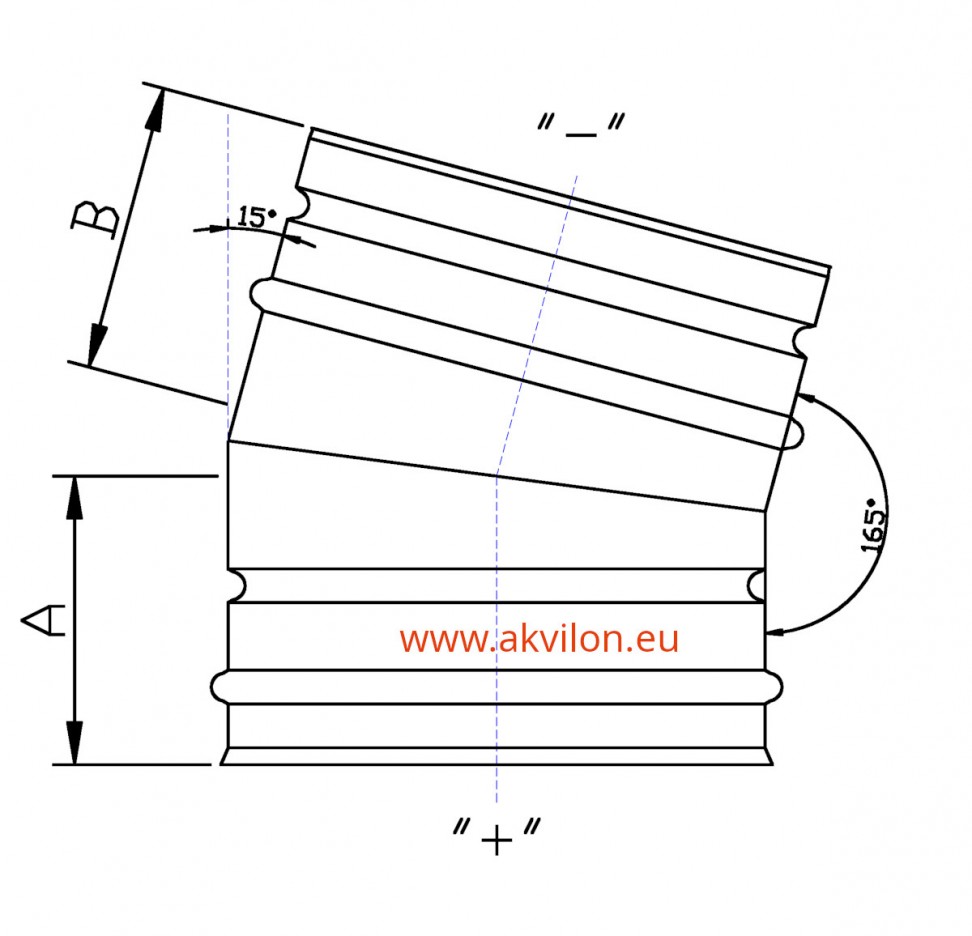

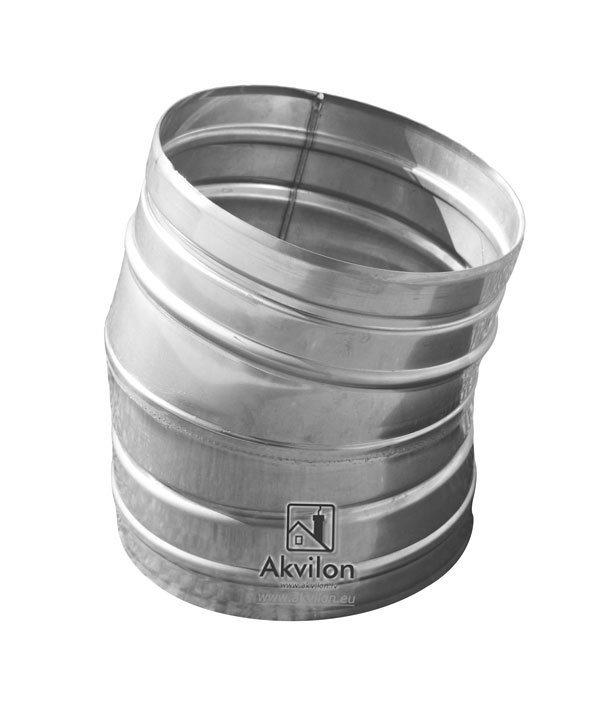

The flue pipe elbow 15° is an essential component of chimney systems, designed for even smoother directional changes than 30° or 45° elbows. Its gentle angle makes it ideal for small adjustments in the flue pipe's direction, ensuring optimal flow and minimizing resistance. When combined with 30° and 45° elbows, it allows for the creation of complex configurations to bypass obstacles during chimney system installation.

Key Features

15° Angle for Precise Adjustments:

• Gentle Directional Changes: The 15° elbow is designed for situations where minimal directional changes are required, ensuring smooth gas flow with virtually no turbulence.
• Flexible Use: Perfect for fine-tuning flue pipe configurations during installation.

High-Quality Material:

• Manufactured from AISI 304/316 stainless steel, offering superior resistance to corrosion, high temperatures, and mechanical stress.
• Wall thickness starting from 0.6 mm, providing durability and reliable performance.

Wide Range of Sizes:

• Available in diameters from 80 mm to 800 mm, with custom sizes available upon request to meet specific installation needs.

Compatibility and Versatility:

• Fully compatible with Renofast single wall systems and Izokompakt double wall insulated systems.
• Can be combined with other elbows (30° and 45°) to create intricate configurations for bypassing obstacles.

Applications of the Flue Pipe Elbow 15°

• Small Directional Changes: Ideal for minor adjustments in flue pipe alignment.
• Obstacle Bypass: Perfect for situations requiring precise configurations to navigate structural elements like beams or walls.
• Complex Installations: Enables advanced system setups when combined with other components, such as 30° and 45° elbows.

Technical Specifications

• Type: Flue pipe bend from stainles steel 15 degrees
• Material: Stainless steel AISI 304/316
• Wall Thickness: From 0.6 mm
• Diameters: 80 mm to 800 mm (custom sizes available upon request)
• Compatibility: Renofast single wall and Izokompakt double wall systems
• Certification: CE, compliant with EN-1856-2

Manufacturer: SIA Akvilon

Material: Stainless steel AISI 304L/316L, wall thickness from 0,6mm

Diameter range: 80-800

Certificate: CE, EN-1856-2
