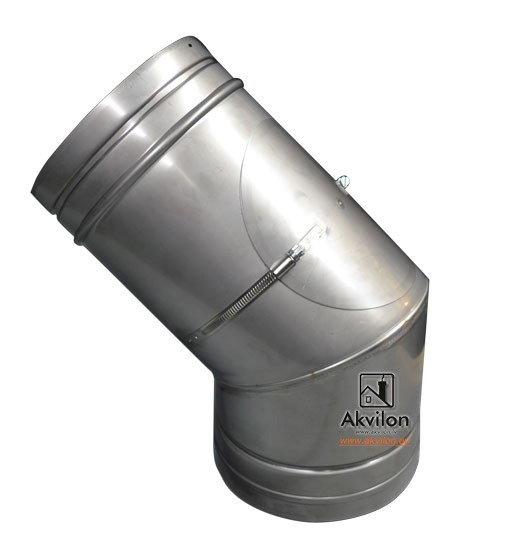

Chimney flue pipe bend 45° with cleaning hatch is a component of the Renofast stainless steel single wall flue pipe system. Designed to provide smooth redirection of flue gases while ensuring easy access for cleaning and maintenance, this bend is fully compatible with both Renofast single wall flue pipe systems and Izokompakt double wall flue pipe systems

Single wall stainless steel pipe is typically used to connect stoves or other heating appliances to the chimney liners or a twin wall insulated chimney system.

Key Features of Single wall elbow 45 with Door

Efficient and Functional Design:

• The 45-degree bend ensures precise redirection of flue gases
• An integrated inspection door allows for quick and easy maintenance, making cleaning hassle-free.

Stainless Steel Construction:

• Built from stainless steel AISI 304/316, providing excellent resistance to heat, corrosion, and wear.
• Wall thickness starting from 0.6 mm, ensuring durability and long-lasting performance.

Flexible Size Options:

• Available in diameters from 80 mm to 800 mm, with custom sizes available upon request for unique installations.

Single wall stainless steel pipes are ideal for connecting heating appliances, such as stoves, to chimney stacks or twin wall insulated systems.

Technical Specifications

• Type: Single wall Flue Pipe Elbow 45° with Inspection Door
• Material: Stainless steel AISI 304/316
• Compatibility: Renofast single wall and Izokompakt double wall systems
• Diameters: 80 mm to 800 mm (custom sizes available)
• Wall Thickness: From 0.6 mm
• Access Door: Integrated for easy cleaning and maintenance
• Certification: CE-certified, compliant with EN-1856-2

Diameters over 200mm can be produced within 3-10 working days upon request

Manufacturer: SIA Akvilon

Material: Stainless steel AISI 304L/316L, wall thickness from 0,6 mm

Diameter range (mm): 80-800

Certificate: CE
