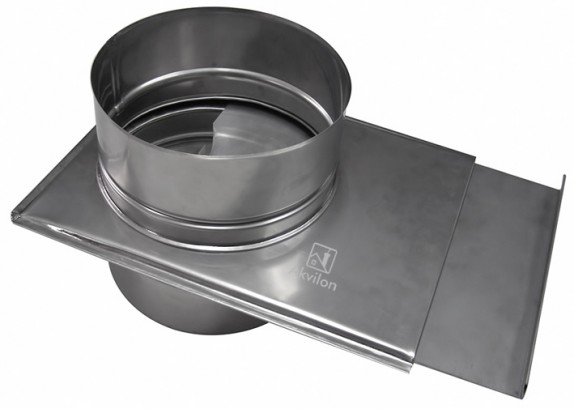

The stainless steel flue damper, also referred to as a chimney damper or draft damper, flue gate valve - is a component in modern single wall stainless steel chimney system Renofast. It regulates airflow by partially closing the flue channel, optimizing combustion, reducing heat loss, and improving the overall efficiency of heating systems.

Features and Benefits

Precise Draft Control:

• The flue damper enables adjustments to the flue channel, allowing for regulated airflow to enhance combustion and minimize fuel consumption..

Safety with Limiting Bolt:

• Includes a limiting bolt to prevent complete closure of the flue, maintaining continuous airflow and reducing the risk of carbon monoxide buildup.
• For systems requiring complete closure, the limiting bolt can be removed, offering flexible usage options.

High-Quality Stainless Steel Construction:

• Made from stainless steel AISI 304/316, providing excellent durability, heat resistance, and corrosion protection.
• Wall thickness from 0.6 mm to 1.0 mm, ensuring longevity and reliable performance even under high-stress conditions.

Installation Guidelines for Optimal Performance:

• It is important to install the flue damper in a way that prevents other chimney components from applying pressure on it, as this could hinder its proper operation.
• Support brackets fotr other flue elements are recommended to reduce mechanical stress and ensure smooth operation over time.

Applications

• Ideal for regulating airflow in fireplaces, wood-burning stoves, and heating appliances.
• Can be used in ventilation systems as well

We can manufacture a custom draught regulator specifically designed to meet your system’s unique requirement

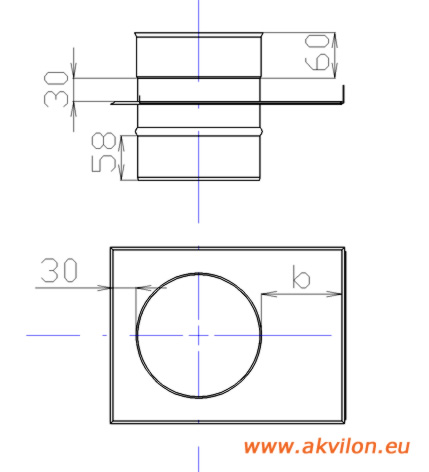

Technical Specifications

• Type: Stainless Steel Flue Damper (Chimney Damper, Draft Damper)
• Material: Stainless steel AISI 304/316
• Wall Thickness: From 0.6 mm to 1.0 mm
• Available Diameters: 80 mm to 800 mm (custom sizes available on request)
• Safety Feature: Limiting bolt for secure operation, removable for complete closure
• Standards Compliance: CE certified, conforms to EN-1856-2

Chimney system components with a diameter over 200 mm are manufactured within 3-10 working days upon request

Manufacturer: SIA Akvilon

Material: Stainless steel AISI 304L/316L, wall thickness from 0.6mm

Diameter range: 80-800

Certificate: CE, EN-1856-2
