Adjustable grille JR3/2
Choose a size
Price includes VAT 21%.
The indicated price is valid ordering till 05.09.2025.
The indicated price is valid ordering till 05.09.2025.
Indoor grilles

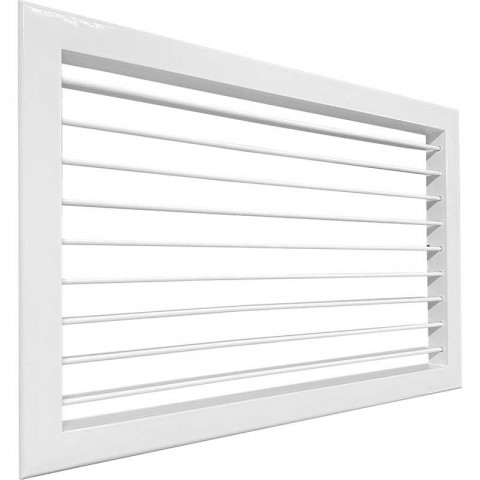

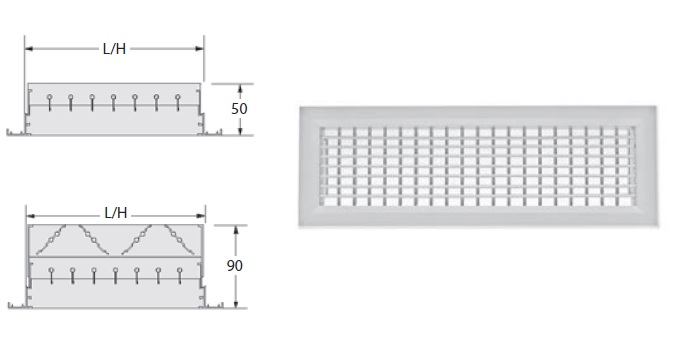

Steel grilles with adjustable horizontal and horizontal/vertical slats for supply and extract air. Standard colour: RAL9010 (white). The grille connects to a junction box or to a duct with side connection in the wall. Control valve/throttle valve available separately on request.
Optionally we can offer on request in aluminium, stainless steel, powder coating in RAL/RR tone, and also in other visual designs.

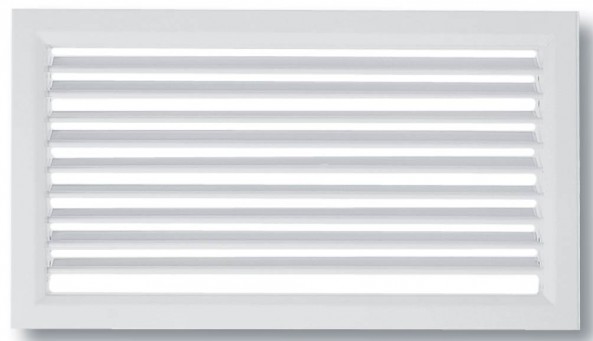

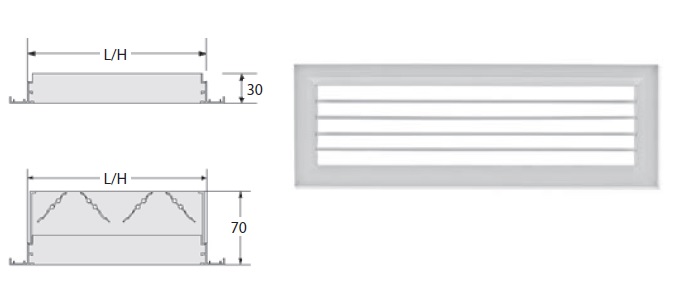

Grilles with horizontal (single row) slats JR3/2:
| LxH (mm) | 200x100 | 300x200 | 300x300 | 400x150 | 400x200 | 400x300 | 500x150 | 500x400 | 600x500 | 800x500 | 1000x500 | 1200x500 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Article | VRJR3/202010 | VRJR3/203020 | VRJRAVR3030 | VRJRAVR4015 | VRJRAVR4020 | VRJR3/204030 | VRJRAVR5015 | VRJR3/205040 | VRJR3/206050 | VRJR3/208050 | VRJR3/210050 | VRJR3/212050 |
| In stock | on request | on request | available | available | available | on request | available | on request | on request | on request | on request | on request |

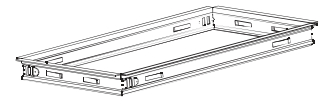

Throttle valve:
| LxH (mm) | 200x100 | 300x200 | 400x300 | 500x400 | 600x500 | 800x500 | 1000x500 | 1200x500 |
|---|---|---|---|---|---|---|---|---|
| Article | VRJRDR1020 | VRJRDR2030 | VRJRDR3040 | VRJRDR4050 | VRJRDR5060 | VRJRDR5080 | VRJRDR50910 | VRJRDR50912 |
| In stock |
Other sizes on request. Order lead time 5-30 working days.
Manufacturer: other
Material and main features:
-
Material: steel, aluminium, stainless steel, powder coated
-
Connection: in tube, in box.
Standard lengths (mm): 200x100 - 1200x500 mm or other on request.
