BFN4 exhaust hood without grease filters
Choose a size
Price includes VAT 21%.
The indicated price is valid ordering till 05.09.2025.
The indicated price is valid ordering till 05.09.2025.

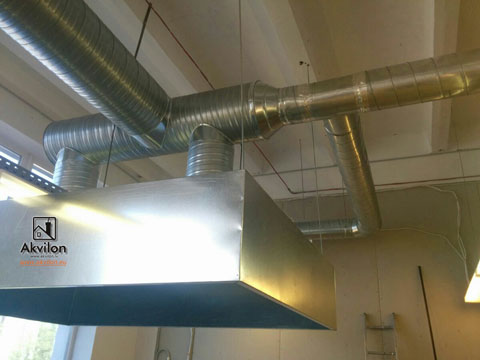

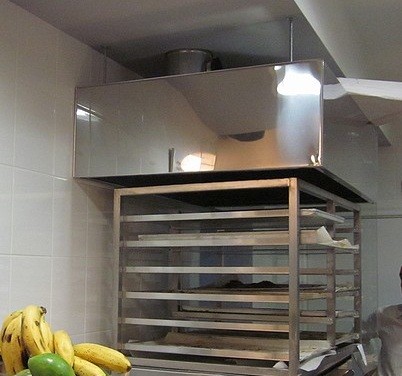

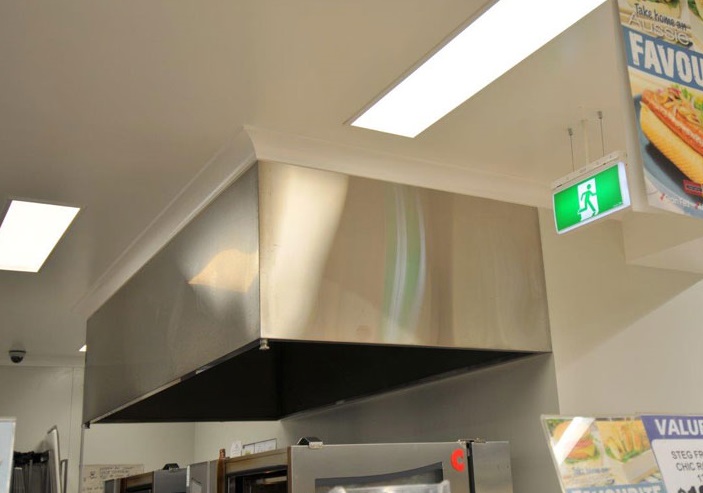

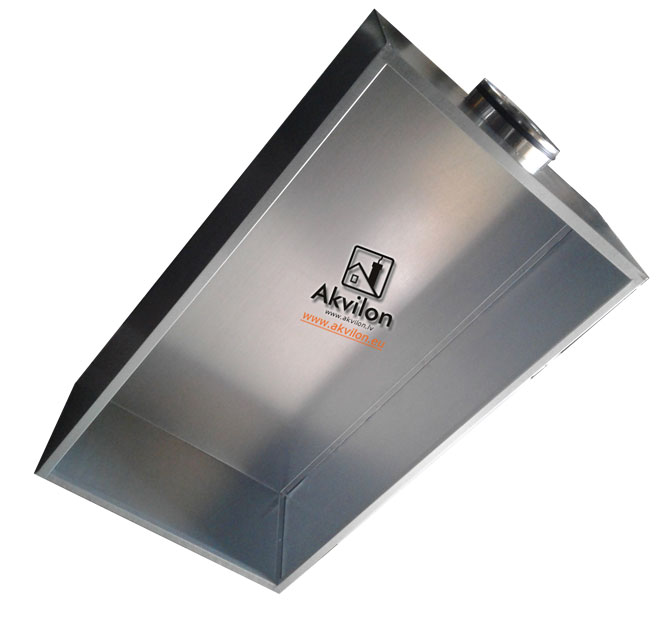

Exhaust hood BFN4 - central or wall-mounted local ventilation system element without built-in filters for exhausting contaminated air and smoke. The standard hood is manufactured from EN 1.4016/AISI430 steel 0,6-0,8 mm (ground surface No. 4) with PVC protective film or DX51+Z275 galvanised steel. Application areas: kitchens (cafeterias, bars, restaurants), process plants, workshops, above welding machines, grills, fire places, etc.
| Width B, mm | 600 | 800 | 1000 | 1200 | 1400 | |
| Length L, mm | Outlet, mm (diameter) | Article | Article | Article | Article | Article |
| 600 | 160 | GNBFN010606*BFN4 | GNBFN010806*BFN4 | |||
| 800 | 200 | GNBFN020608*BFN4 | GNBFN020808*BFN4 | GNBFN021008*BFN4 | GNBFN021208*BFN4 | GNBFN021408*BFN4 |
| 1000 | 200 | GNBFN040610*BFN4 | GNBFN040810*BFN4 | GNBFN041010*BFN4 | GNBFN041210*BFN4 | GNBFN041410*BFN4 |
| 1200 | 250 | GNBFN050612*BFN4 | GNBFN050812*BFN4 | GNBFN051012*BFN4 | GNBFN051212*BFN4 | GNBFN051412*BFN4 |
| 1400 | 250 | GNBFN060614*BFN4 | GNBFN060814*BFN4 | GNBFN061014*BFN4 | GNBFN061214*BFN4 | GNBFN061414*BFN4 |
| 1600 | 2x160 | GNBFN070616*BFN4 | GNBFN070816*BFN4 | GNBFN071016*BFN4 | GNBFN071216*BFN4 | GNBFN071416*BFN4 |
| 1800 | 2x160 | GNBFN080618*BFN4 | GNBFN080818*BFN4 | GNBFN081018*BFN4 | GNBFN081218*BFN4 | GNBFN081218*BFN4 |
| 2000 | 2x200 | GNBFN090620*BFN4 | GNBFN090820*BFN4 | GNBFN091020*BFN4 | GNBFN091220*BFN4 | GNBFN091420*BFN4 |
| 2200 | 2x200 | GNBFN100622*BFN4 | GNBFN100822*BFN4 | GNBFN101022*BFN4 | GNBFN101222*BFN4 | GNBFN101422*BFN4 |
| 2400 | 2x250 | GNBFN110624*BFN4 | GNBFN110824*BFN4 | GNBFN111024*BFN4 | GNBFN111224*BFN4 | GNBFN111424*BFN4 |
| 2600 | 2x250 | GNBFN120626*BFN4 | GNBFN120826*BFN4 | GNBFN121026*BFN4 | GNBFN121226*BFN4 | GNBFN121226*BFN4 |
| 2800 | 3x250 | GNBFN130628*BFN4 | GNBFN130828*BFN4 | GNBFN131028*BFN4 | GNBFN131228*BFN4 | GNBFN131428*BFN4 |
| 3000 | 3x315 | GNBFN140630*BFN4 | GNBFN140830*BFN4 | GNBFN141030*BFN4 | GNBFN141230*BFN4 | GNBFN141430*BFN4 |
Manufacturer: SIA Akvilon
Material and main characteristics:
- Material: AISI430, AISI304, AISI316, DX51+Z275 galvanized steel, powder coated
- Thickness: 0,6-1,0 mm
- Optional accessories on request: LED luminaires IP65, exhaust ventilators and elements of the ventilation system

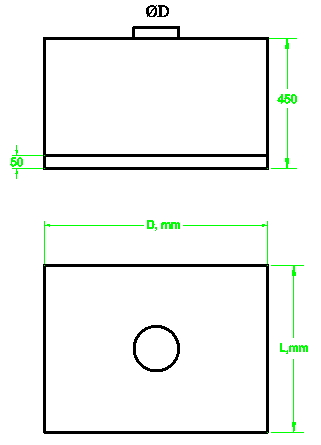

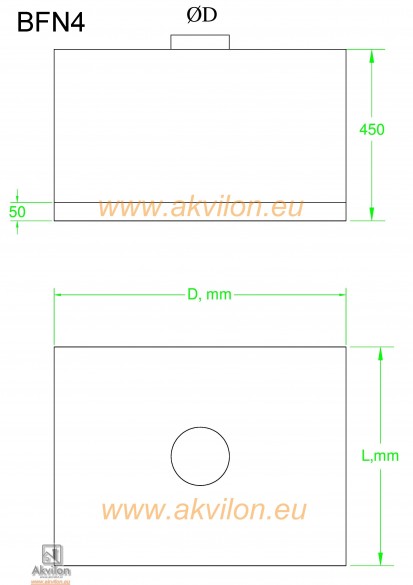

Standard lengths (mm): 600x600-3000x1400, H(height)=450 mm or any other size/configuration on request.
Certificates: CE, EN 1505:2000 ; EN 1506:2007
