BFN2 exhaust hood without grease filters
Choose a size
Price includes VAT 21%.
The indicated price is valid ordering till 23.09.2026.
The indicated price is valid ordering till 23.09.2026.
All sizes
BNF2
BNF2
BNF2
BNF2
BNF2
BNF2
BNF2
BNF2
BNF2
BNF2
BNF2
BNF2
BNF2
BNF2

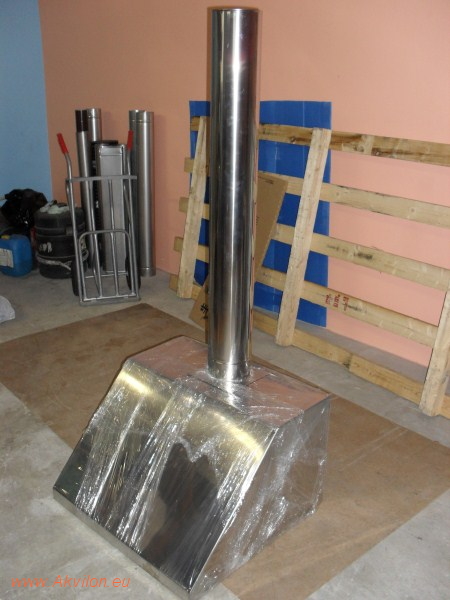

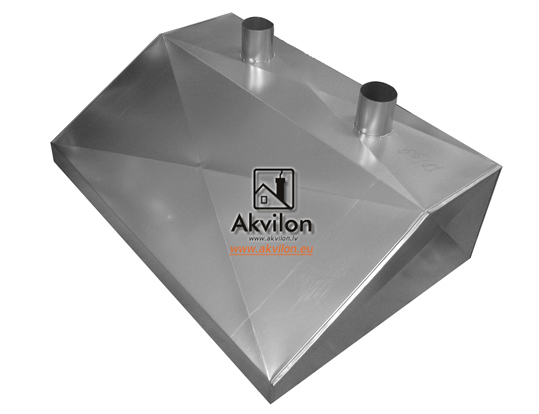

Exhaust hood BFN2 - wall-mounted local ventilation system element without built-in filters for exhausting contaminated air and smoke. The standard hood is manufactured from EN 1.4016/AISI430 steel 0,6-0,8 mm (ground surface No. 4) with PVC protective film or DX51+Z275 galvanised steel. Application areas: kitchens (cafeterias, bars, restaurants), process plants, workshops, over welding machines, grills, fire places, etc.

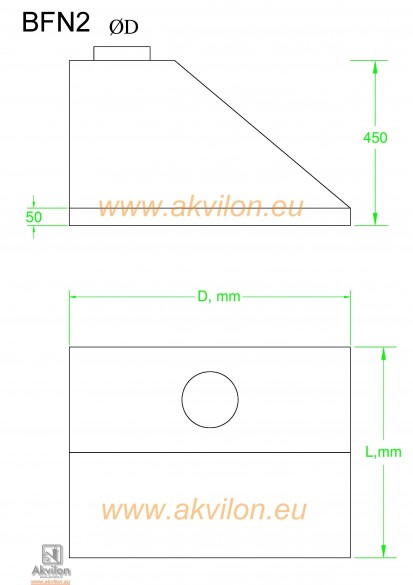

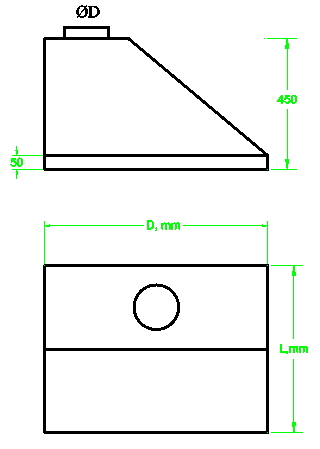

| Width B, mm | 600 | 800 | 1000 | 1200 | 1400 | |
| Length L, mm | Outlet, mm (diameter) | Article | Article | Article | Article | Article |
| 600 | 160 | GNBFN010606*BFN2 | GNBFN010806*BFN2 | |||
| 800 | 200 | GNBFN020608*BFN2 | GNBFN020808*BFN2 | GNBFN021008*BFN2 | GNBFN021208*BFN2 | GNBFN021408*BFN2 |
| 1000 | 200 | GNBFN040610*BFN2 | GNBFN040810*BFN2 | GNBFN041010*BFN2 | GNBFN041210*BFN2 | GNBFN041410*BFN2 |
| 1200 | 250 | GNBFN050612*BFN2 | GNBFN050812*BFN2 | GNBFN051012*BFN2 | GNBFN051212*BFN2 | GNBFN051412*BFN |
| 1400 | 250 | GNBFN060614*BFN2 | GNBFN060814*BFN2 | GNBFN061014*BFN2 | GNBFN061214*BFN2 | GNBFN061414*BFN2 |
| 1600 | 2x160 | GNBFN070616*BFN2 | GNBFN070816*BFN2 | GNBFN071016*BFN2 | GNBFN071216*BFN2 | GNBFN071416*BFN2 |
| 1800 | 2x160 | GNBFN080618*BFN2 | GNBFN080818*BFN2 | GNBFN081018*BFN2 | GNBFN081218*BFN2 | GNBFN081418*BFN2 |
| 2000 | 2x200 | GNBFN090620*BFN2 | GNBFN090820*BFN2 | GNBFN091020*BFN2 | GNBFN091220*BFN2 | GNBFN091420*BFN2 |
| 2200 | 2x200 | GNBFN100622*BFN2 | GNBFN100822*BFN2 | GNBFN101022*BFN2 | GNBFN101222*BFN2 | GNBFN101422*BFN2 |
| 2400 | 2x250 | GNBFN110624*BFN2 | GNBFN110824*BFN2 | GNBFN111024*BFN2 | GNBFN111224*BFN2 | GNBFN111424*BFN2 |
| 2600 | 2x250 | GNBFN120626*BFN2 | GNBFN120826*BFN | GNBFN121026*BFN2 | GNBFN121226*BFN | GNBFN121426*BFN2 |
| 2800 | 3x250 | GNBFN130628*BFN2 | GNBFN130828*BFN2 | GNBFN131028*BFN2 | GNBFN131228*BFN2 | GNBFN131428*BFN2 |
| 3000 | 3x315 | GNBFN140630*BFN2 | GNBFN140830*BFN2 | GNBFN141030*BFN2 | GNBFN141230*BFN2 | GNBFN141430*BFN2 |
Manufacturer: SIA Akvilon
Material and main characteristics:
- Material: AISI430, AISI304, AISI316, DX51+Z275 galvanized steel, powder coated
- Thickness: 0,6-1,0 mm
- Optional accessories on request: LED luminaires IP65, exhaust ventilators and elements of the ventilation system
Standard lengths (mm): 600x600-3000x1400, H(height)=450 mm or any other size/configuration on request.
Certificares: CE, EN 1505:2000 ; EN 1506:2007
