AFP1 inflow-outflow (air input) hood with grease filters, stainless steel
The indicated price is valid ordering till 05.09.2025.

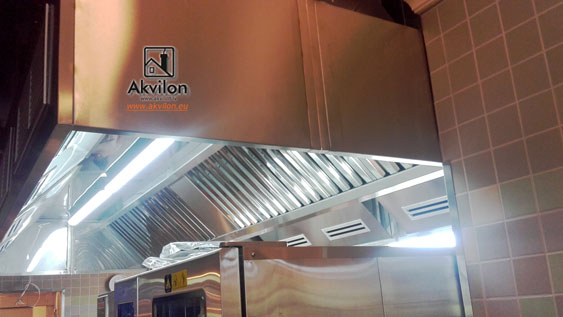

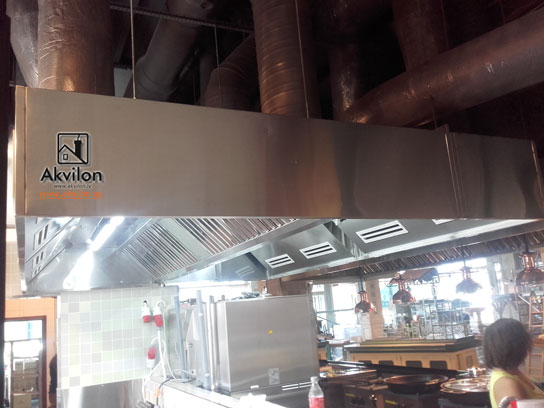

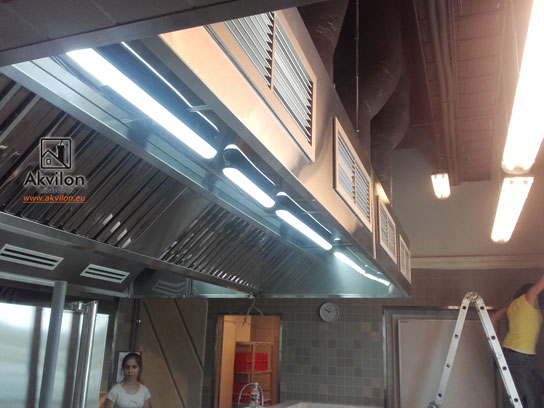

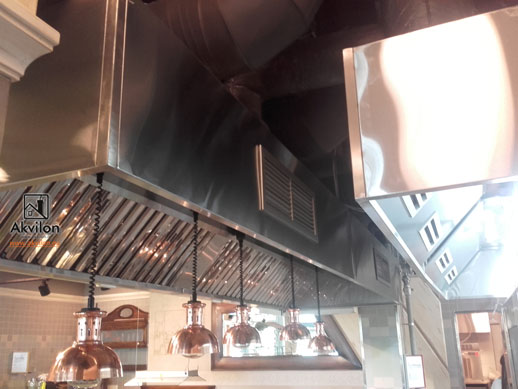

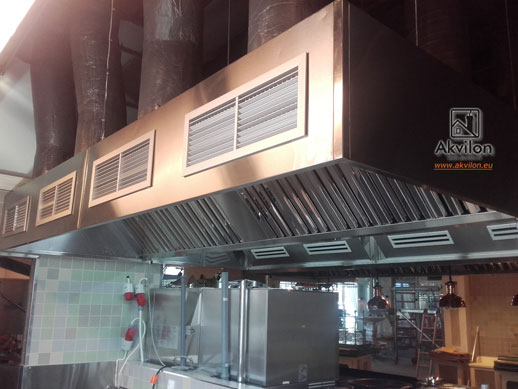

AFP1 inflow-outflow (air input) hood - central or wall-mounted hood for exhausting contaminated air (steam, grease) from rooms and supplying fresh air. The standard hood is made of EN 1.4016/AISI430 steel 0,6-0,8 mm (ground surface No. 4) with PVC protective film, complete with stainless steel labyrinth type grease filters and welded condensate bath with condensate stopcock. Application sectors: restaurants, bars, cafés, catering establishments, burger, kebab and pizza kitchens.
AFP1 inflow-outflow hood with stainless steel filters

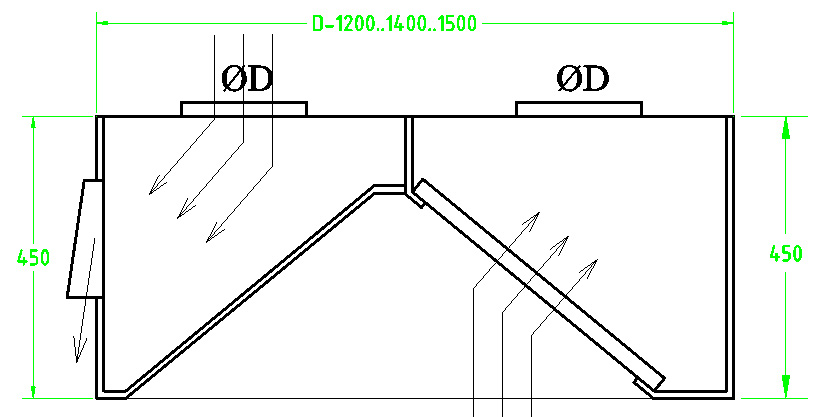

| Width B, mm | 1200 | 1400* | 1600 | 1800 | 2000 | |||
| Length L, mm | Filters, pcs | Connection diameter, mm | Max productivity, m3/h | Article | Article | Article | Article | Article |
| 800 | 1-2 | 250 | 650-1000 | GNAFP021208045 | GNAFP021408045 | GNAFP021608045 | GNAFP021808045 | GNAFP022008045 |
| 1000 | 1-4 | 315 | 800-1800 | GNAFP041210045 | GNAFP041410045 | GNAFP041610045 | GNAFP041810045 | GNAFP042010045 |
| 1200 | 2-4 | 315 | 1000-1800 | GNAFP051212045 | GNAFP051412045 | GNAFP051612045 | GNAFP051812045 | GNAFP052012045 |
| 1400 | 3-6 | 315 | 1000-1800 | GNAFP061214045 | GNAFP061414045 | GNAFP061614045 | GNAFP061814045 | GNAFP062014045 |
| 1600 | 3-6 | 2x250 | 1200-2000 | GNAFP071216045 | GNAFP071416045 | GNAFP071616045 | GNAFP071816045 | GNAFP072016045 |
| 1800 | 4-8 | 2x250 | 1200-2000 | GNAFP081218045 | GNAFP081418045 | GNAFP081618045 | GNAFP081818045 | GNAFP082018045 |
| 2000 | 4-8 | 2x315 | 1500-2500 | GNAFP091220045 | GNAFP091420045 | GNAFP091620045 | GNAFP091820045 | GNAFP092020045 |
| 2200 | 4-8 | 2x315 | 1500-2500 | GNAFP101222045 | GNAFP101422045 | GNAFP101622045 | GNAFP101822045 | GNAFP102022045 |
| 2400 | 5-10 | 3x315 | 1800-3000 | GNAFP111224045 | GNAFP111424045 | GNAFP111624045 | GNAFP111824045 | GNAFP112024045 |
| 2600 | 5-10 | 3x315 | 2000-3000 | GNAFP121226045 | GNAFP121426045 | GNAFP121626045 | GNAFP121826045 | GNAFP122026045 |
| 2800 | 6-12 | 3x315 | 2500-3500 | GNAFP131228045 | GNAFP131428045 | GNAFP131628045 | GNAFP131828045 | GNAFP132028045 |
| 3000 | 6-12 | 400x2 | 3000-4000 | GNAFP141230045 | GNAFP141430045 | GNAFP141630045 | GNAFP141830045 | GNAFP142030045 |
* Hoods with a width (B) up to 1400 mm are manufactured with one row of labyrinth grease filters (wall type), unless otherwise specified in the work order. From 1400 mm and above with two rows of labyrinth grease filters (island type).
Manufacturer: SIA Akvilon
Material and main characteristics:
- Material: AISI430, AISI304, AISI316, DX51+Z275 galvanized steel, powder coated
- Thickness: 0,6-1,0 mm
- Capacity (outflow): 650-4000 m3/h (depending on selected width (B) and number of grease filters)
- Productivity (inflow): 650-4000 m3/h (depending on the selected width (B) and the number of grease filters) or other, according to your task.
- Filters: labyrinth grease filter, mesh-type filters
- Labyrinth filter starting resistance: 70 Pa at V=1 m/s
- Optional extras on request: LED luminaires IP65, exhaust fans and ventilation elements, stainless steel plates for wall decoration.
Certificates: CE, EN 1505:2000 ; EN 1506:2007
