AFC1 island-type exhaust hood with grease filters, stainless steel
Choose a size
Price includes VAT 21%.
The indicated price is valid ordering till 05.09.2025.
The indicated price is valid ordering till 05.09.2025.

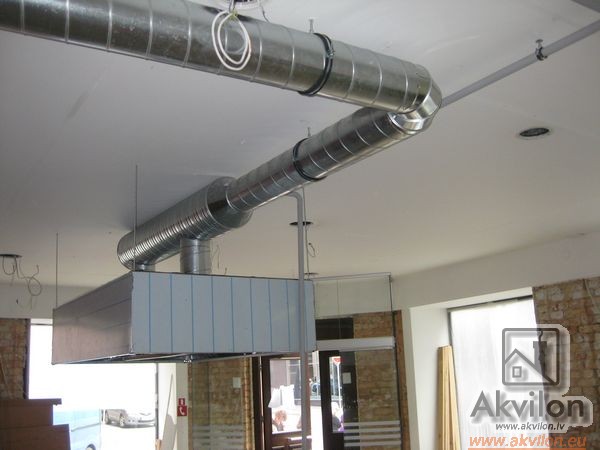

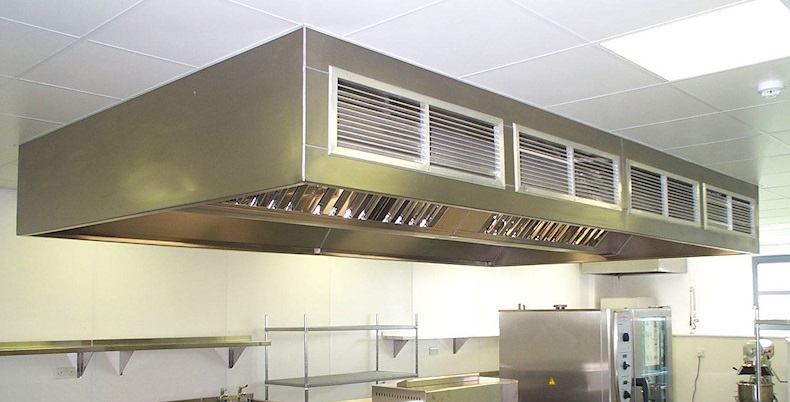

AFC1 "island" hood - central, ceiling-mounted hood for exhausting polluted air (steam, grease) from rooms, especially suitable for above powerful heating appliances. The standard hood is made of EN 1.4016/AISI430 steel 0,6-0,8 mm (ground surface No. 4) with PVC protective film, complete with stainless steel labyrinth type grease filters and welded condensate bath with condensate tap. Application sectors: restaurants, bars, cafes, catering establishments, burger, kebab and pizza kitchens.
| Width B, mm | 1200 | 1400 | 1600 | 1800 | 2000 | |||
| Length L, mm | Filters, pcs | Connection diameter, mm | Max productivity, m3/h | Article | Article | Article | Article | Article |
| 800 | 2 | 250 | 1000 | GNAFC021208045 | GNAFC021408045 | GNAFC021608045 | GNAFC021808045 | GNAFC022008045 |
| 1000 | 4 | 315 | 1800 | GNAFC041210045 | GNAFC041410045 | GNAFC041610045 | GNAFC041810045 | GNAFC042010045 |
| 1200 | 4 | 315 | 1800 | GNAFC051212045 | GNAFC051412045 | GNAFC051612045 | GNAFC051812045 | GNAFC052012045 |
| 1400 | 6 | 315 | 1800 | GNAFC061214045 | GNAFC061414045 | GNAFC061614045 | GNAFC061814045 | GNAFC062014045 |
| 1600 | 6 | 2x250 | 2000 | GNAFC071216045 | GNAFC071416045 | GNAFC071616045 | GNAFC071816045 | GNAFC071916045 |
| 1800 | 8 | 2x250 | 2000 | GNAFC081218045 | GNAFC081418045 | GNAFC081618045 | GNAFC081818045 | GNAFC082018045 |
| 2000 | 8 | 2x315 | 2500 | GNAFC091220045 | GNAFC091420045 | GNAFC091620045 | GNAFC091820045 | GNAFC092020045 |
| 2200 | 8 | 2x315 | 2500 | GNAFC101222045 | GNAFC101422045 | GNAFC101622045 | GNAFC101822045 | GNAFC102022045 |
| 2400 | 10 | 3x315 | 3000 | GNAFC111224045 | GNAFC111424045 | GNAFC111624045 | GNAFC111824045 | GNAFC112024045 |
| 2600 | 10 | 3x315 | 3000 | GNAFC121226045 | GNAFC121426045 | GNAFC121626045 | GNAFC121826045 | GNAFC122026045 |
| 2800 | 12 | 3x315 | 3500 | GNAFC131228045 | GNAFC131428045 | GNAFC131628045 | GNAFC131828045 | GNAFC132028045 |
| 3000 | 12 | 400x2 | 4000 | GNAFC141030045 | GNAFC141430045 | GNAFC141630045 | GNAFC141830045 | GNAFC142030045 |
Manufacturer: SIA Akvilon
Material and main features:
- Material: AISI430, AISI304, AISI316, DX51+Z275 galvanized steel, powder coated
- Thickness: 0,6-1,0 mm
- Productivity: 1000-4000 m3/h
- Filters: labyrinth grease filter, mesh-type filters
- Labyrinth filter starting resistance: 70 Pa at V=1 m/s
- Optional accessories on request: LED luminaires IP65, exhaust ventilators and ventilation system elements, stainless steel sheet for wall finishing.

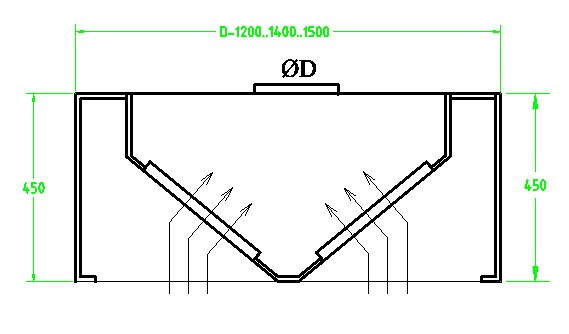

Standard lengths (mm): 800x1200-3000x2000, H(height)=450 mm or any other size on request
Certificates: CE, EN 1505:2000 ; EN 1506:2007
