AFS1 wall mounted extract hood with grease filters, stainless steel
Choose a size
Price includes VAT 21%.
The indicated price is valid ordering till 05.09.2025.
The indicated price is valid ordering till 05.09.2025.

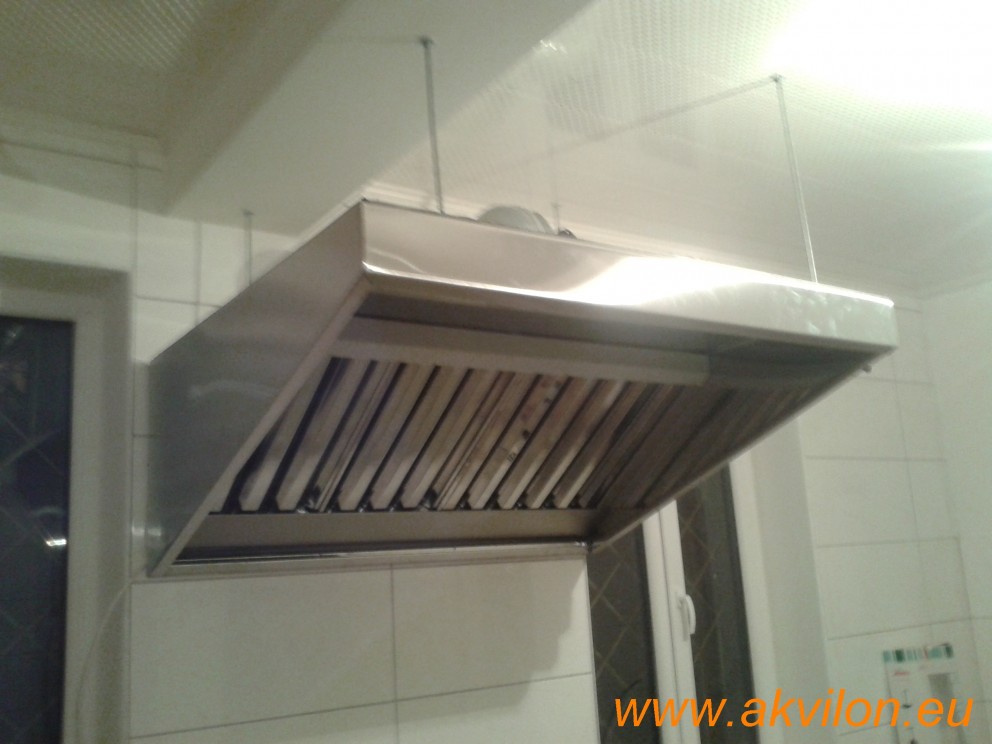

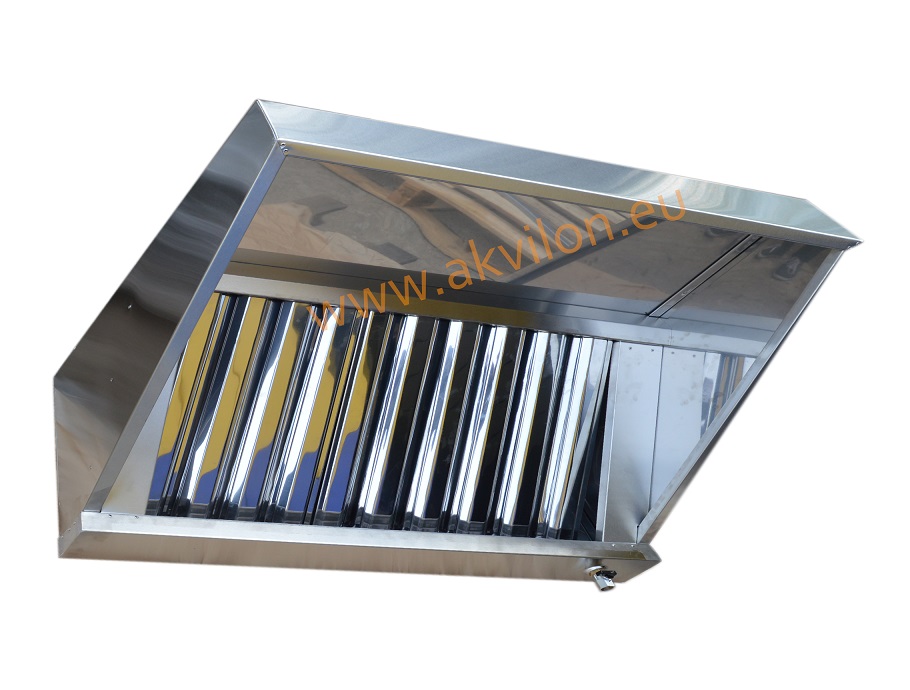

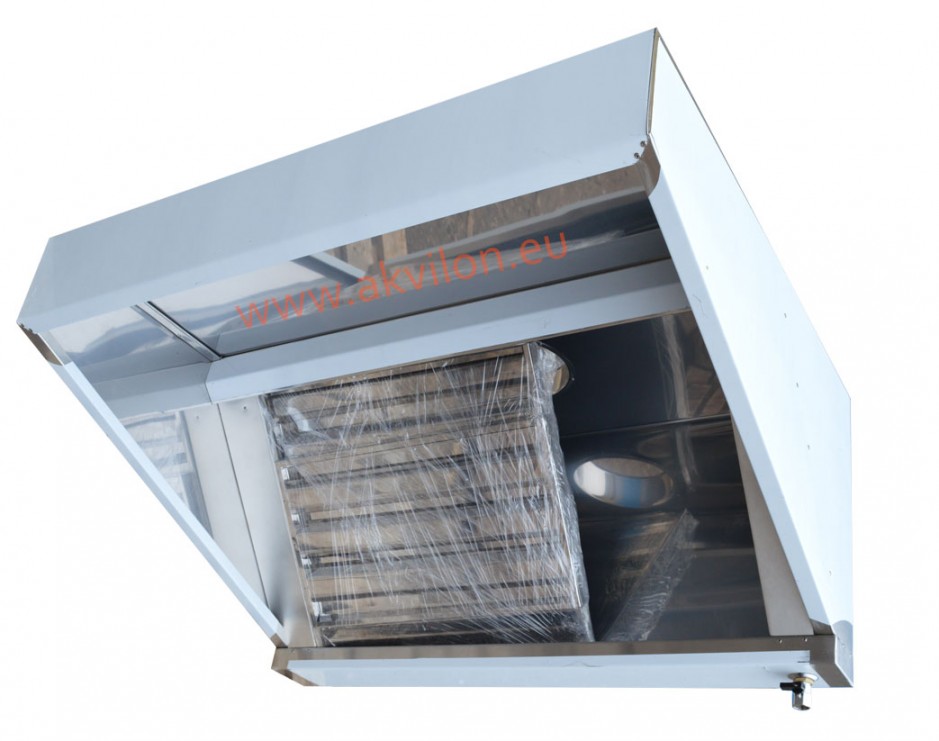

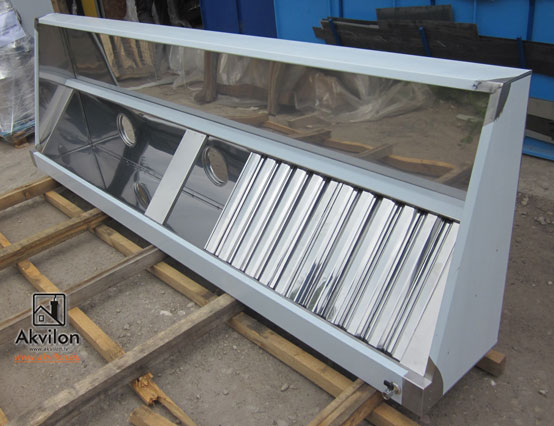

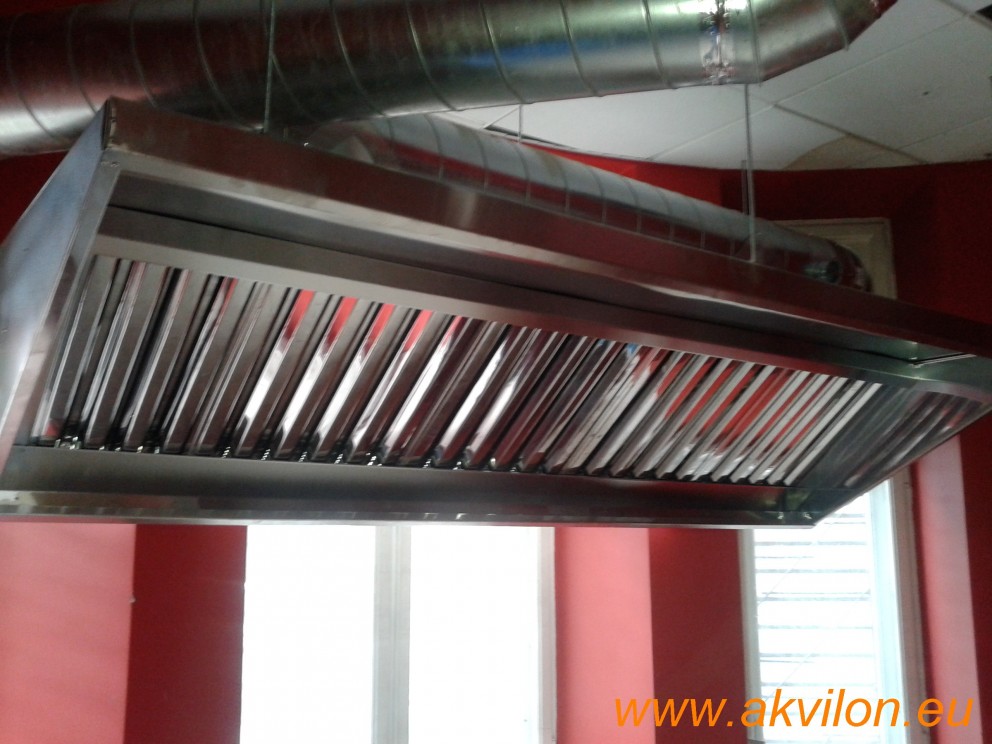

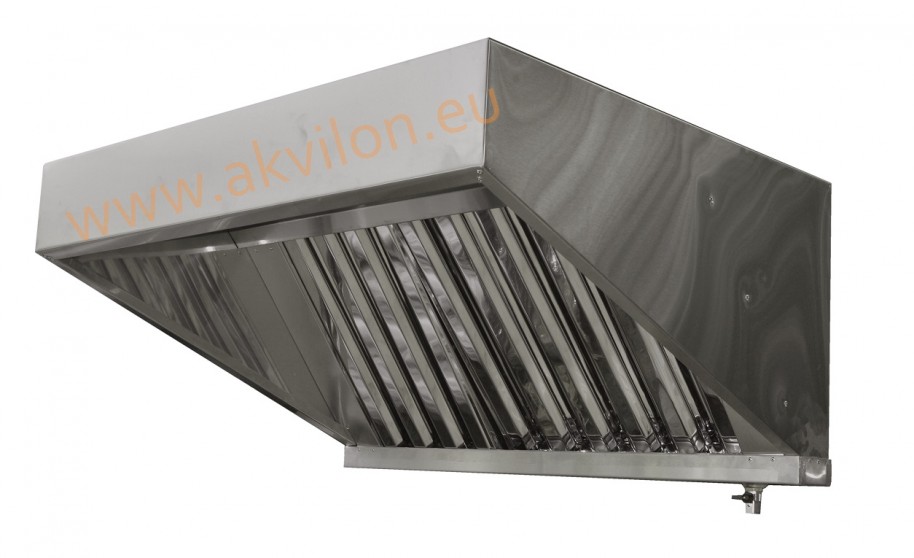

AFS1 "triangular" hood - wall-mounted hood for exhausting contaminated air (steam, grease) from rooms. The standard hood is made of EN 1.4016/AISI430 steel 0,6-0,8 mm (ground surface No. 4) with PVC protective seal, complete with stainless steel labyrinth type grease filters and welded condensate bath with condensate tap. Application sectors: restaurants, bars, cafés, catering establishments, burger, kebab and pizza kitchens.
Own production of hoods.
| Width B, mm | 600 | 800 | 1000 | 1200 | |||
| Length L, mm | Filters, pcs | Connection diameter, mm | Max productivity, m3/h | Article | Article | Article | Article |
| 600 | 1 | 160 | 500 | GNAFS010606045 | GNAFS010806045 | GNAFS011006045 | GNAFS011206045 |
| 800 | 1 | 200 | 650 | GNAFS020608045 | GNAFS020808045 | GNAFS021008045 | GNAFS021208045 |
| 1000 | 2 | 200 | 800 | GNAFS040610045 | GNAFS040810045 | GNAFS041010045 | GNAFS041210045 |
| 1200 | 2 | 250 | 1000 | GNAFS050612045 | GNAFS050812045 | GNAFS051012045 | GNAFS051212045 |
| 1400 | 3 | 250 | 1000 | GNAFS060614045 | GNAFS060814045 | GNAFS061014045 | GNAFS061214045 |
| 1600 | 3 | 2x160 | 1200 | GNAFS070616045 | GNAFS070816045 | GNAFS071016045 | GNAFS071216045 |
| 1800 | 4 | 2x160 | 1200 | GNAFS080618045 | GNAFS080818045 | GNAFS081018045 | GNAFS081218045 |
| 2000 | 4 | 2x200 | 1500 | GNAFS090620045 | GNAFS090820045 | GNAFS091020045 | GNAFS091220045 |
| 2200 | 4 | 2x200 | 1500 | GNAFS100622045 | GNAFS100822045 | GNAFS101022045 | GNAFS101222045 |
| 2400 | 5 | 2x250 | 1800 | GNAFS110624045 | GNAFS110824045 | GNAFS111024045 | GNAFS111224045 |
| 2600 | 5 | 2x250 | 2000 | GNAFS120626045 | GNAFS120826045 | GNAFS121026045 | GNAFS121226045 |
| 2800 | 6 | 3x250 | 2500 | GNAFS130628045 | GNAFS130828045 | GNAFS131028045 | GNAFS131228045 |
| 3000 | 6 | 3x315 | 3000 | GNAFS140630045 | GNAFS140830045 | GNAFS141030045 | GNAFS141230045 |
Manufacturer: SIA Akvilon
Material and main characteristics:
- Material: AISI430, AISI304, AISI316, DX51+Z275 galvanized steel, powder coated
- Thickness: 0,6-1,0 mm
- Productivity: 500-3000 m3/h
- Filters: labyrinth grease filter, mesh filters
- Labyrinth filter starting resistance: 70 Pa at V=1 m/s
- Optional extras on request: LED luminaires IP65, exhaust fans and ventilation elements, stainless steel plates for wall decoration.

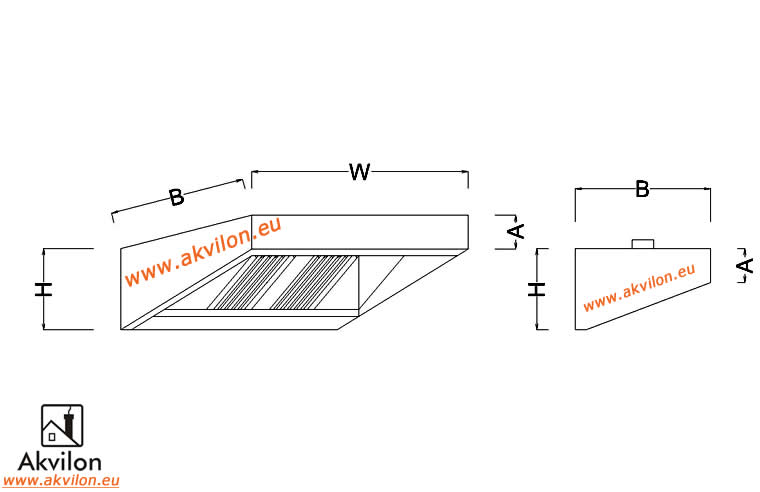

Standard lengths (mm): 600x600-3000x1200, H(height)=450 mm or any other size on request (L,B,H,A,d)
Certificates: CE, EN 1505:2000 ; EN 1506:2007
