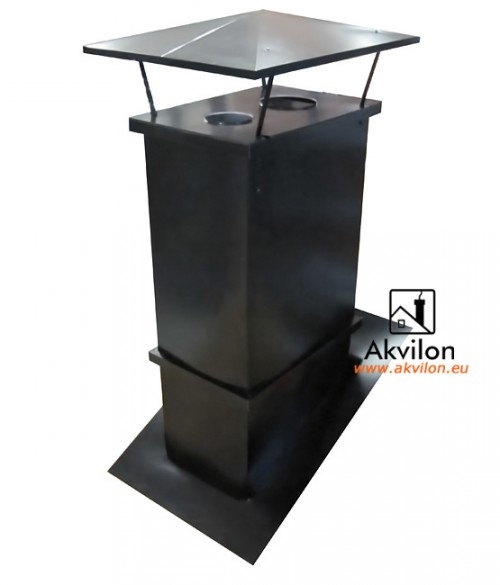

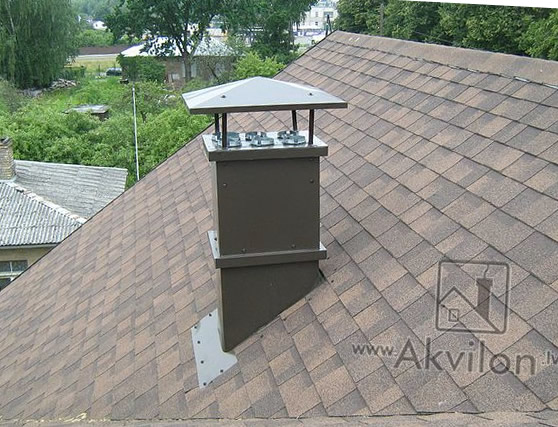

Roof outlet box with canopy

Used as a decorative protective cover for the chimney and the connection to the roof. All connection points are rolled, the roof legs are made of metal strip. The standard roof outlet box with canopy consists of:

• Roof outlet, rolled in tin plate

• Roof decorative box high H-700 mm or according to your dimensions

• Canopy

• Cover plate

If the roof outlet box with roofing is intended for heating, we additionally offer a protective plate (screen) made of stainless steel inside the roofing to prevent corrosion of the roofing.

Outlet box PE (painted tin):

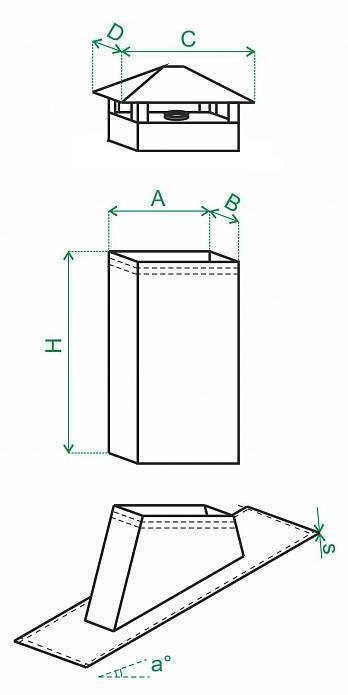

Size
A x B

380x380

520x520

660x660

800x800

940x940

Article

VJIPK3838

VJIPK5252

VJIPK6666

VJIPK8080

VJIPK9494

In stock

on request

on request

on request

on request

on request

Other sizes, versions, solutions - on request, configurations - as required. Lead time 5-10 working days.

When ordering ventilation outlets, it is necessary to know the dimensions of the ventilation outlet and the pitch of the roof.

Manufacturer: SIA Akvilon

Material and main features:

• Material: DX51+Z275 galvanized steel, PE/PUR/PUR-MATT/PVC tin

• Thickness: 0,45-0,6 mm

Standard dimensions (mm): 380x380 - 940x940 mm or other sizes on request.

Certificates: CE, EN 14783:2013
