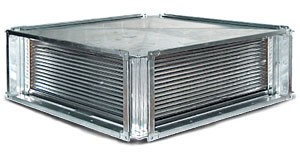

Plate recuperator section RPK
Plate recuperator section RPK
USAGE:
RPK duct plate recuperators are designed for heat recovery of exhaust air in ventilation and air-conditioning systems.
- Recuperators are directly connected to rectangular ducts.
- The exhaust air shall be free of aggressive contaminants.
- The housing of the recuperator is made of galvanised steel sheet.
- The heat exchanger surface is made as a package of special aluminium plates with a thickness of 0,2 mm, which ensures a very efficient heat transfer.
- Recuperators have the possibility to collect small amounts of condensate (which may form on the outlet surfaces of the heat exchanger) on the bottom removable panel.
- The standard RPK recuperator set includes a condensate drain short pipe which can be mounted on the bottom panel.
| Title | Dimentions | Price, Euro without VAT | Price, Euro with VAT | ||
| RPK 40-20 | 400x200 | 251,99 | 304,91 | ||
| RPK 50-25 | 500x250 | 310,15 | 375,28 | ||
| RPK 50-30 | 500x300 | 335,99 | 406,55 | ||
| RPK 60-30 | 600x300 | 374,76 | 453,46 | ||
| RPK 60-35 | 600x350 | 387,68 | 469,09 | ||
| RPK 70-40 | 700x400 | 484,61 | 586,38 | ||
| RPK 80-50 | 800x500 | 633,22 | 766,20 | ||
| RPK 90-50 | 900x500 | 678,45 | 820,92 | ||
| RPK 100-50 | 1000x500 | 839,98 | 1016,38 | ||
