Electrically operated throttle valves
€17217Without VAT 142.29 €
Price includes VAT 21%.
The indicated price is valid ordering till 05.09.2025.
The indicated price is valid ordering till 05.09.2025.

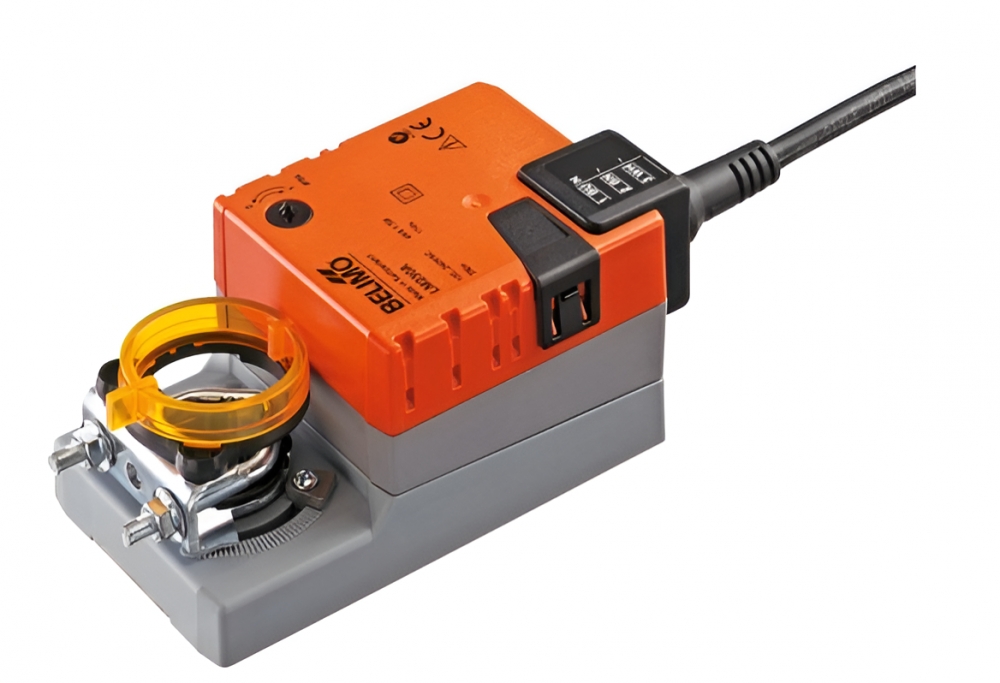

Electric actuator
The electric actuator is used to control throttle valves in technical building installations.
Technical parameters for stock models:
Title |
Operating torque |
Control options |
Motor running time |
Spring |
Article |
In stock |
|---|---|---|---|---|---|---|
LM 230A |
5 Nm (~1 m2) |
On / off |
150 s / 90° |
not available |
|
|
NM 230A |
10 Nm (~2 m2) |
On / off |
150 s / 90° |
not available |
|
|
SM 230A |
20 Nm (~4 m2) |
On / off |
150 s / 90° |
not available |
|
|
Models with spring, higher torque (up to 40 Nm) and more precise control options in the 0-90° range on request. For custom orders, lead time 5-10 working days.
Manufacturer: Belimo
Material and main features:
-
Material: plastic
-
Power supply: 100...240 V
-
Protection class: IP54
Standard models: 2 Nm - 40 Nm.
