Pocket type filter

Air filters - an element of a ventilation system designed to remove dust and dirt from the air, providing a cleaner and safer indoor environment.

Filter box with cassette type filter - filters are designed to clean the supply air of circular ventilation and air conditioning systems from solid particles of dirt. The filters have a cleaning class G3/G4, diameters from D100 to D630 mm.

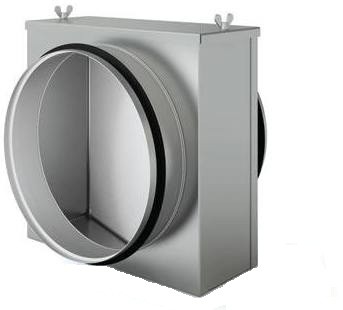

Filter box with pocket type filter - designed for round and canted ventilation and air-conditioning systems for cleaning supply/exhaust air from particulate matter. Pocket filters comply with ISO16890 and EN779 standards, offering a range of cleaning classes from G3 to F9. Filter diameters from D100 to D630 mm, duct connections are available in sizes from 300x150 mm to 1000x500 mm.

Filter box with PAINTSTOP filter - the paint retention filter is a glass fibre filter mat most commonly used in paint shops, factories and the automotive painting industry. The filter has a temperature resistance of up to 180°C and complies with cleaning class G3 (EN 779).

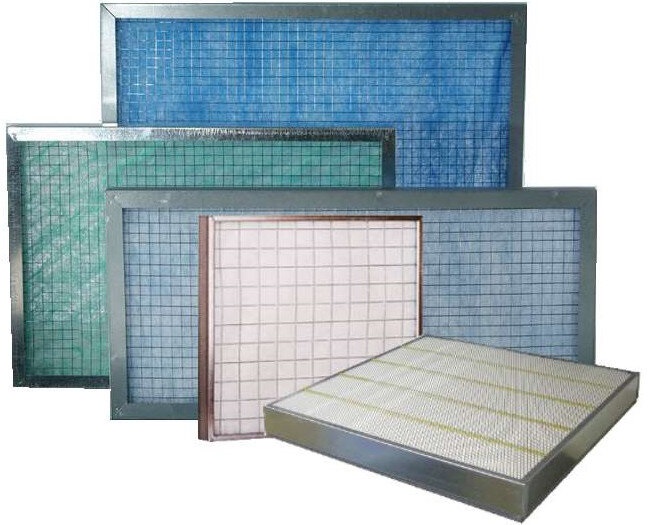

The internal filters can be purchased separately and replaced when they are completely clogged.

Pocket type filter:

*square dimensions for pocket filters - on request.


Ordering: 5-20 working days

Manufacturer: SIA Akvilon or other

Material and main characteristics:

• Material: DX51+Z275 galvanized steel (standard)

• Thickness: 0,5-1,0 mm

• Operating temperature: -40 to +70°C

• Connection: in pipe, one inside the other.

• Recommended end pressure drop: 250-450 Pa

Certificate: CE, EN 1505:2000 ; EN 1506:2007
