Round regulating valves/throttling valves

Used to adjust the air flow control in the system. Available in two versions, manual and motorised control, with/without internal sealing rubber (level C - air leakage class).

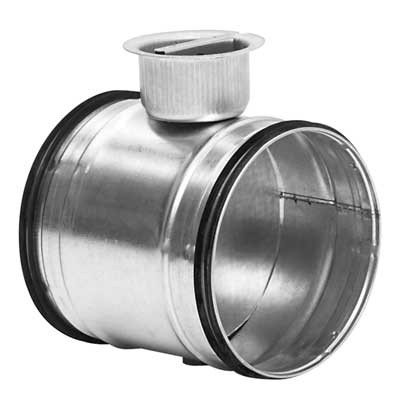

Round throttling valves (manual) - manually operated round throttling valves with diameters from 100 to 1000 mm.

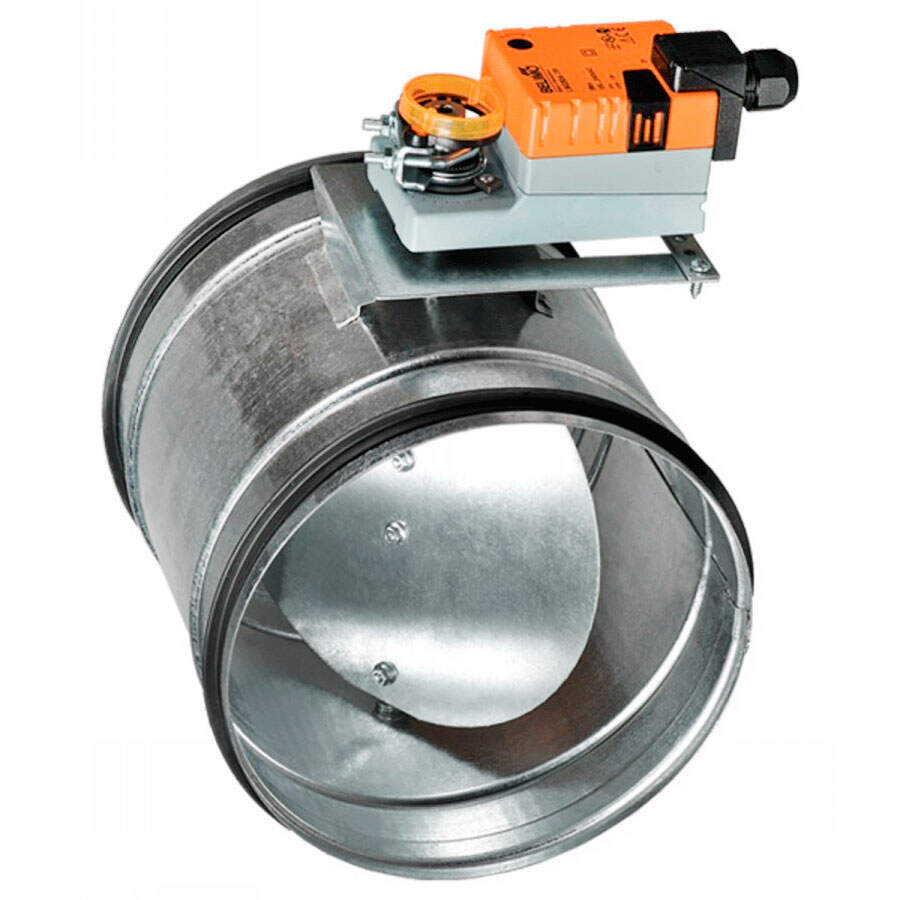

Round throttle valves (motorised control) - electrically operated throttle valves with diameters from 100 to 1000 mm. Electric actuator not included!

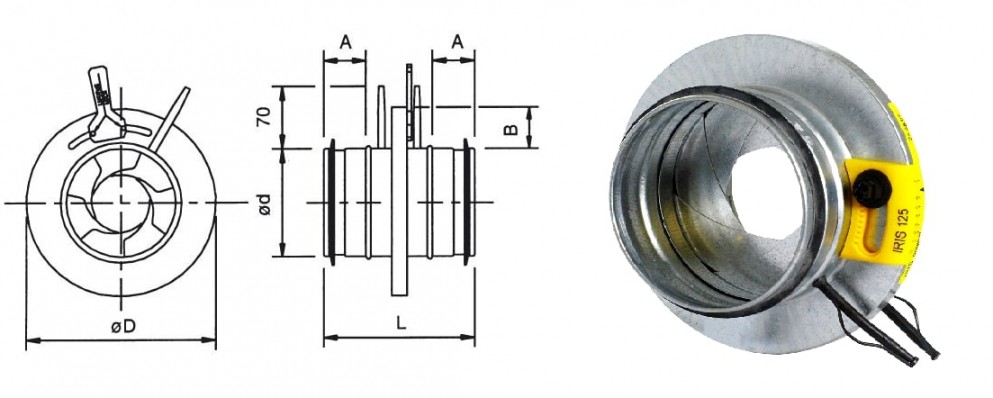

IRIS round throttle valves - provide easy control of air flow by varying the diameter of the internal structure evenly. Available diameters from 100 to 630 mm.

Throttle valve ( motorised control)

D (mm)

100

125

160

200

250

315

355

400

450

500

560

630

Dimention (mm)

156

156

156

156

196

246

293

330

370

397

457

507

Article

VASDRM100

VASDRM125

VASDRM160

VASDRM200

VASDRM250

VASDRM315

VASDRM355

VASDRM400

VASDRM450

VASDRM500

VASDRM560

VASDRM630

In stock

on request

on request

on request

on request

on request

on request

on request

on request

on request

on request

on request

on request

Ordering: 3-10 working days.

Manufacturer: SIA Akvilon

Material and main features:

• Material: DX51+Z275 galvanised steel (standard), AISI304*, AISI316*, powder coated*

• Thickness: 0,5-1,0 mm

• Connection: in pipe, one inside the other.

Certificates: CE, EN 1505:2000 ; EN 1506:2007

**Special ordering.
