Concetric (central) reducer
The indicated price is valid ordering till 05.09.2025.
Ventilation transition (reducer)
Used in ventilation systems to provide a transition between circular ducts of different diameters while maintaining optimum airflow.
Can be made in different versions:

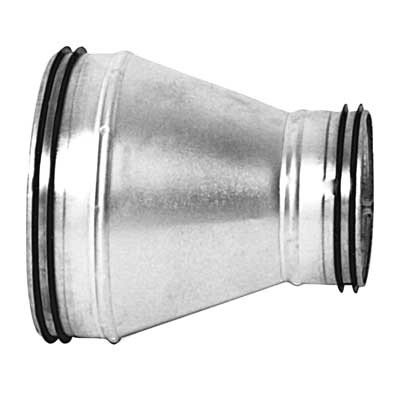

- without and with rubber , with + and "-" connections

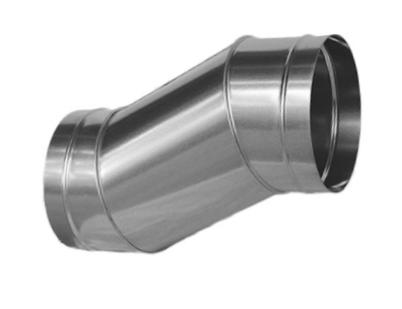

- concetric and eccentric transitions
- in the required length and with the required offset

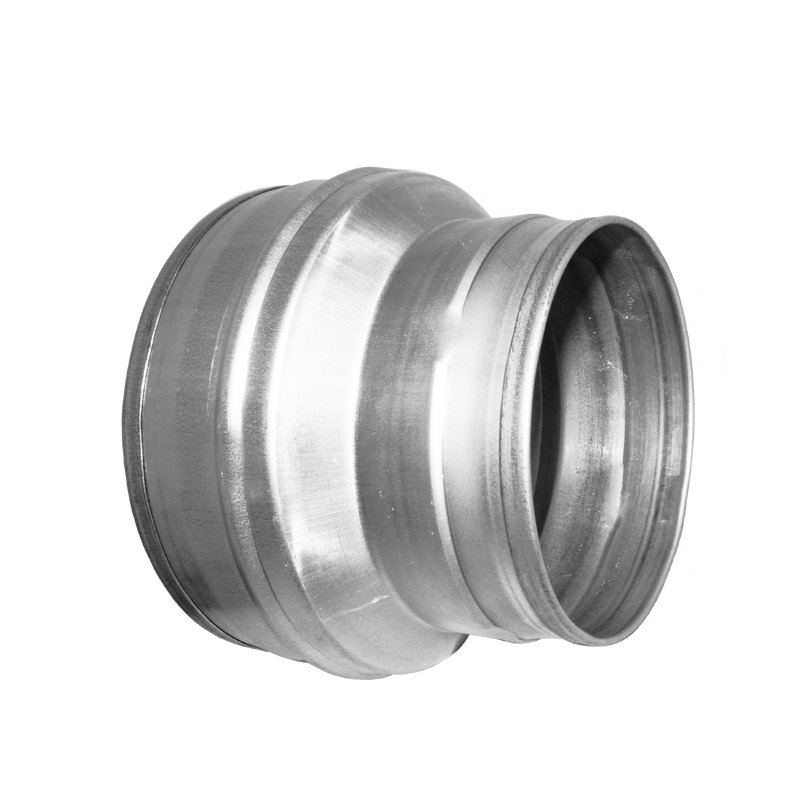

- short extruded
- we also produce offsets ( utcas).
It is possible to order the product according to your work assignment, choosing the length, steel thickness, eccentric offset and other technical requirements according to your drawing/design.

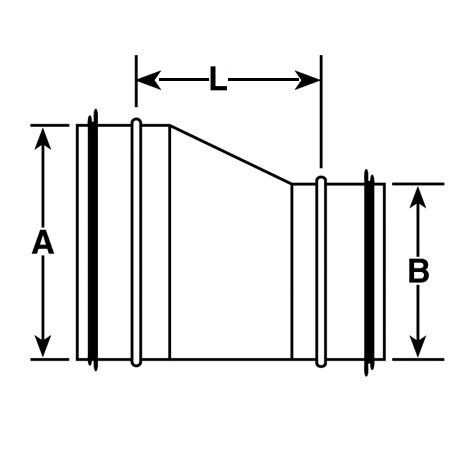

Concetric (central) transition:
| D (mm) | 125/100 | 160/125 | 200/125 | 200/160 | 250/125 | 250/160 | 250/200 | 315/160 | 315/200 | 315/250 | 400/160 | 400/200 | 500/250 | 500/400 | 630/315 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Length (mm) (provisional) |
100 | 110 | 165 | 150 | 150 | 180 | 150 | 260 | 210 | 160 | 385 | 335 | 395 | 180 | 475 |
| Article | VASPAG 125100 |
VASPAG 1612 |
VASPAG 2012 |
VASPAG 2016 |
VASPAG 2512 |
VASPAG 2516 |
VASPAG 2520 |
VASPAG 3116 |
VASPAG 3120 |
VASPAG 3125 |
VASPAG 4016 |
VASPAG 4020 |
VASPAG 5025 |
VASPAG 5040 |
VASPAG 6331 |
| In stock | available | available | available | available | available | available | available | available | available | available | available | available | available | available | available |
Other non-standard sizes from D100 to D1250 mm on request.
Order lead time: 3-10 working days
Manufacturer: SIA Akvilon
Material and main characteristics:
-
Material: DX51+Z275 galvanized steel (standard), AISI430*, AISI304*, AISI316*, powder coated*
-
Thickness: 0,5-0,9 mm
-
Connection: in tube, one inside the other.
Certificate: CE, EN 1505:2000 ; EN 1506:2007
*on request.
