Round rolled ducts
The indicated price is valid ordering till 05.09.2025.
Round rolled ducts

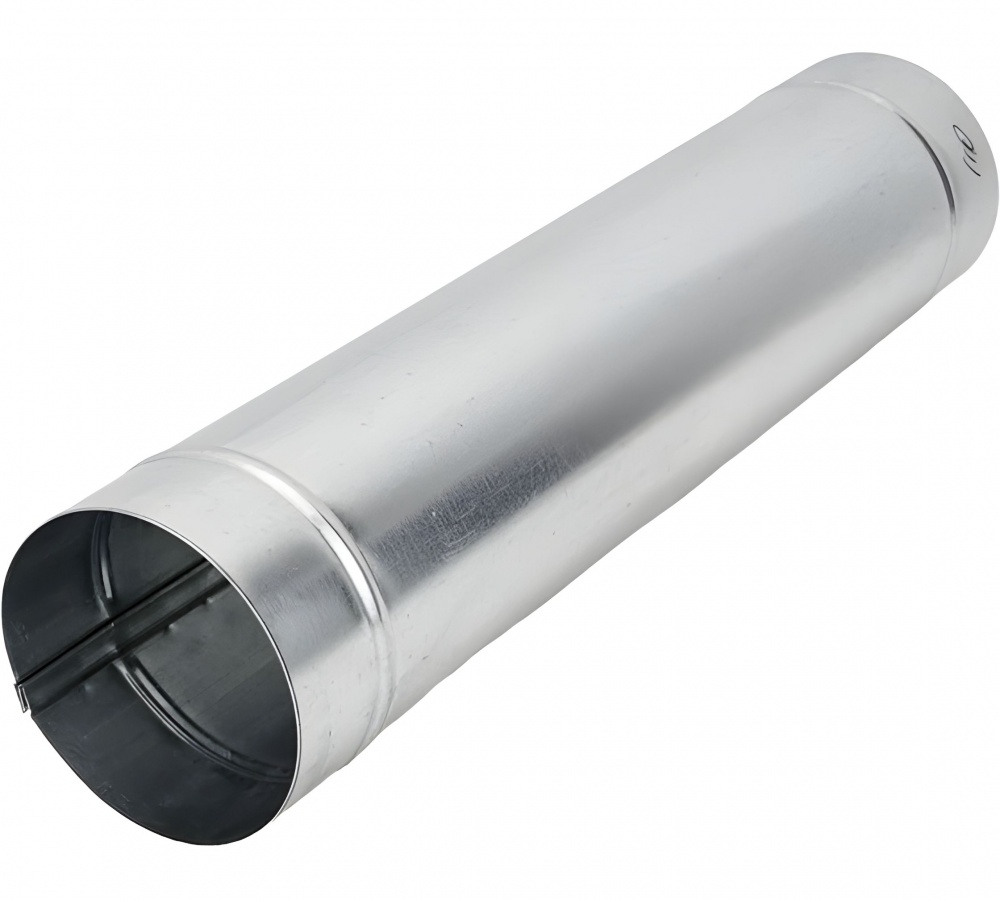

Ventilation ducts manufactured from smooth steel sheet. The standard length is 1250 mm (possible for 1500 and 2000 mm diameters from D-200 mm) and the diameters range from 100 to 1250 mm. Longitudinal seam - rolled or TIG welded* (tig welding only for low zinc galvanised steel).
Round rolled ventilation ducts:

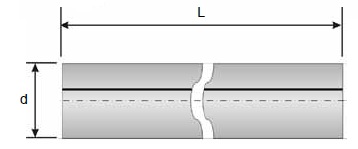

| D (mm) | 100 | 125 | 160 | 200 | 250 | 315 | 355 | 400 | 450 | 500 | 560 | 630 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Length (mm) | 1250 | 1250 | 1250 | 1250 | 1250 | 1250 | 1250 | 1250 | 1250 | 1250 | 1250 | 1250 |
| Article | VASGV100 | VASGV125 | VASGV160 | VASGV200 | VASGV250 | VASGV315 | VASGV355 | VASGV400 | VASGV450 | VASGV500 | VASGV560 | VASGV630 |
| In stock | on request | on request | on request | on request | on request | on request | on request | on request | on request | on request | on request | on request |
Other lengths from D100 to D1250 mm on order: 3-10 working days.
Manufacturer: SIA Akvilon or other
Material and main characteristics:
-

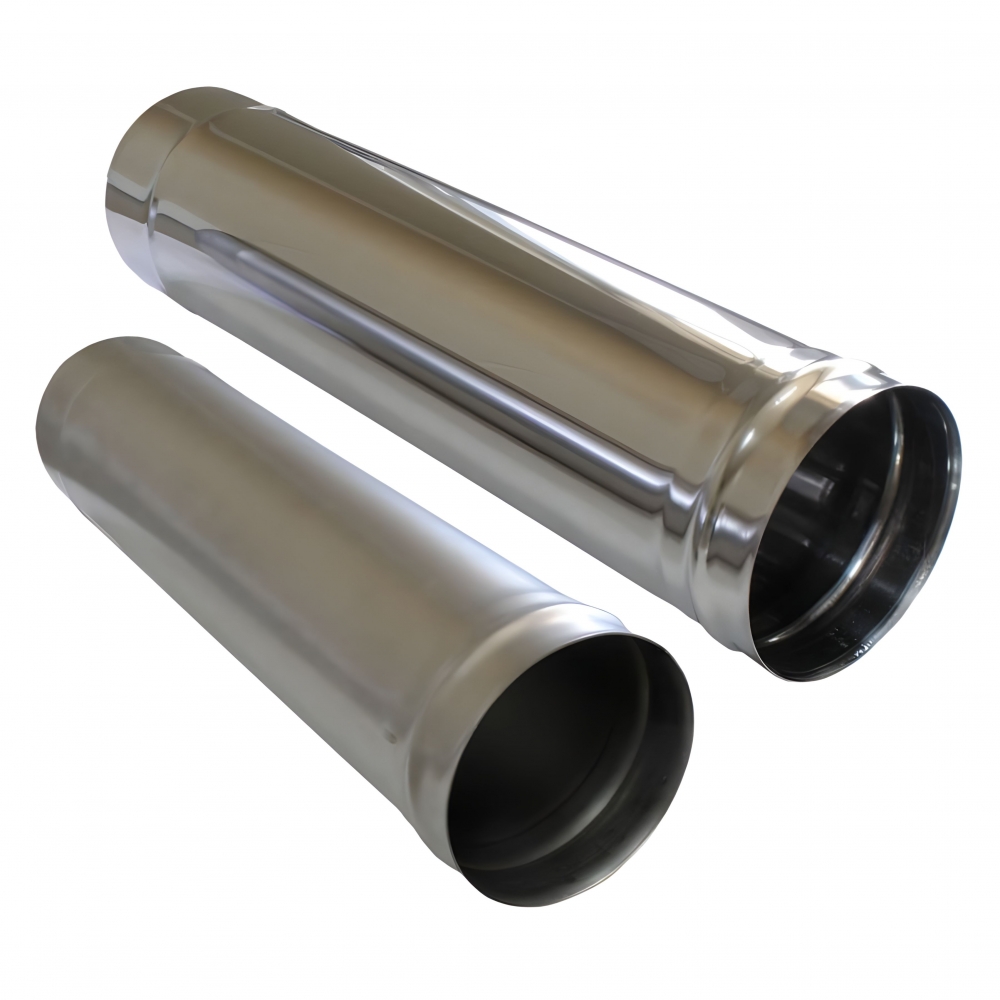

Material: DX51+Z275 galvanized steel (standard), AISI430**, AISI304*, AISI316*, powder coated*
-
Thickness: 0,5-0,9 mm
-
Connection: with nipples or facings, tube in tube* (with flared end).
Standard lengths (mm): For rolled ducts 1250 mm or other length/diameter on request.
Certificates: CE, EN 1505:2000 ; EN 1506:2007
*On request.
**Only applicable to air ducts with rolled or TIG welded longitudinal seam.
