Ventilation connection (nippel)
€315Without VAT 2.60 €
Choose a size
Price includes VAT 21%.
The indicated price is valid ordering till 05.09.2025.
The indicated price is valid ordering till 05.09.2025.
Ventilation duct connections and fitting connections

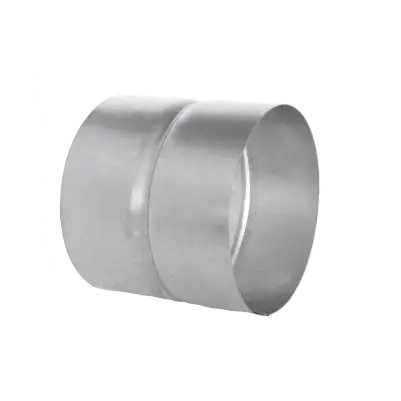

Connection nippel - internal connection for hermetically joining circular ducts of the same diameter.
The nippel connections can be:

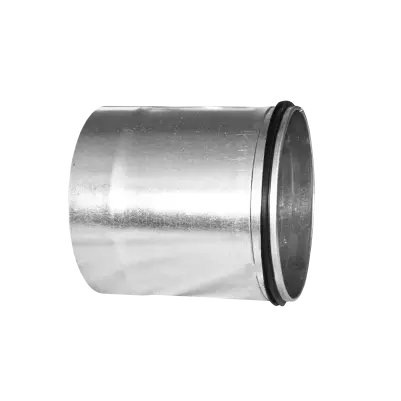

- with rubber,
- without rubbers,

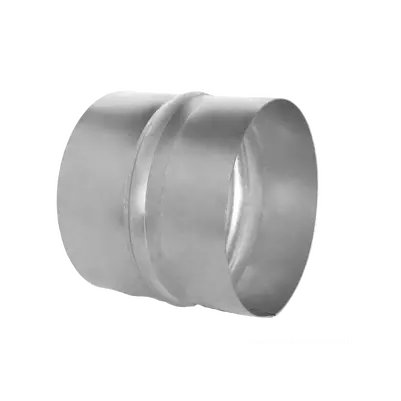

- extended couplings,
- non-standard connections.
Nippel (internal connection, -/- or "papa")

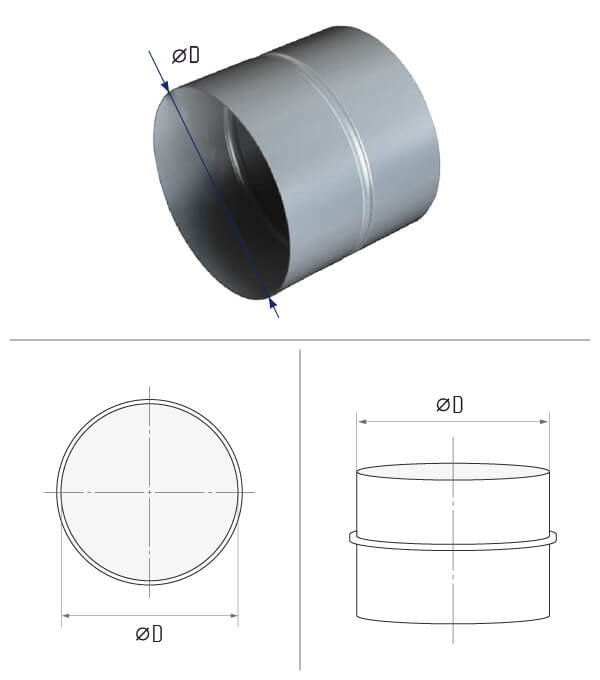

| D (mm) | 100 | 125 | 160 | 200 | 250 | 315 | 355 | 400 | 450 | 500 | 560 | 630 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Article | VASMU100 | VASMU125 | VASMU160 | VASMU200 | VASMU250 | VASMU315 | VASMU355 | VASMU400 | VASMU450 | VASMU500 | VASMU560 | VASMU630 |
| In stock | available | available | available | available | available | available | on request | available | on request | on request | on request | on request |
Other non-standard sizes from D100 to D1250 mm on request.
Order lead time: 3-10 working days.
Manufacturer: SIA Akvilon
Material and main features
-
Material: DX51+Z275 galvanized steel (standard), AISI430*, AISI304*, AISI316*, powder coated*
-
Thickness: 0,5-0,9 mm
-
Connection: in pipe, for fascia elements.
Certificates: CE, EN 1505:2000 ; EN 1506:2007
*on request.
