Ventilation round end cap with net
€3025Without VAT 25.00 €
Choose a size
Price includes VAT 21%.
The indicated price is valid ordering till 05.09.2025.
The indicated price is valid ordering till 05.09.2025.

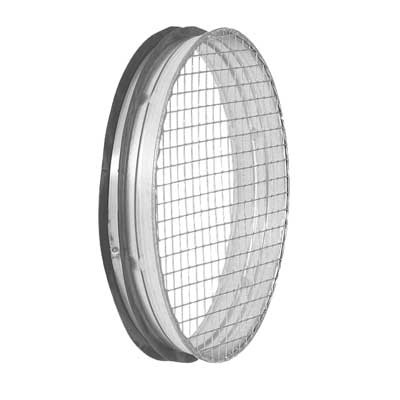

Ventilation (end) cover with mesh
Used as an interior grille at the end of the duct, it protects the system from foreign objects ( for example birds) entering the system.
The ventilation cover with mesh can be made of: rubber, non-rubber, non-standard mesh.
| D (mm) | 100 | 125 | 160 | 200 | 250 | 315 | 355 | 400 | 450 | 500 | 560 | 630 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Mesh size | 13x13 | 13x13 | 13x13 | 13x13 | 13x13 | 13x13 | 13x13 | 13x13 | 13x13 | 13x13 | 13x13 | 13x13 |
| Article | VASN0S100 | VASN0S125 | VASN0S160 | VASN0S200 | VASN0S250 | VASN0S315 | VASN0S355 | VASN0S400 | VASN0S450 | VASN0S500 | VASN0S560 | VASN0S630 |
| In stock | on request | on request | on request | on request | on request | on request | on request | on request | on request | on request | on request | on request |
Other non-standard sizes from D100 to D1250 mm on request.
Order lead time: 3-10 working days.
Other sizes from D100 to D1250 mm on order: 3-10 working days.
Manufacturer: SIA Akvilon
Material and main characteristics
-
Material: DX51+Z275 galvanized steel (standard), AISI430*, AISI304*, AISI316*, powder coated*
-
Thickness: 0,5-0,9 mm
-
Mesh size: 13x13 or other
-
Connection: with sockets or pipes, one inside the other.
Certificates: CE, EN 1505:2000 ; EN 1506:2007
*on request.
