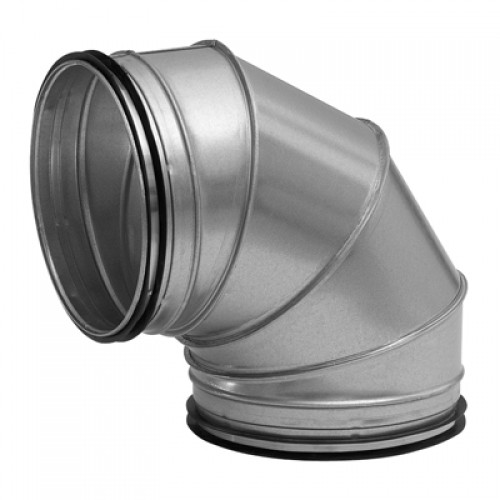

Ventilation bend 90°
- Used to reverse the direction of the ventilation system. The turning radius of the standard element is equal to the diameter of the bend.
Bends can be: rubberised, rubberless, segmented, pressed (for small diameters).
| D (mm) | 100 | 125 | 160 | 200 | 250 | 315 | 355 | 400 | 450 | 500 | 560 | 630 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Article | VASLI90100P | VASLI90125P | VASLI90160P | VASLI90200P | VASLI90250 | VASLI90315 | VASLI90355 | VASLI90400 | VASLI90450 | VASLI90500 | VASLI90560 | VASLI90630 |
| In stock | available | available | available | available | available | available | on request | available | on request | on request | on request | on request |
Other sizes from D100 to D1250 mm on request: 3-10 working days.
Order lead time: 3-10 working days
Manufacturer: SIA Akvilon
Material and main characteristics:
-
Material: DX51+Z275 galvanized steel (standard), AISI430*, AISI304*, AISI316*, powder coated*
-
Thickness: 0,5-0,9 mm
-
Connection: with socket or pipe, one inside the other.
Standard angle: 90° or other on request.
Certificates: CE, EN 1505:2000 ; EN 1506:2007
*on request.
