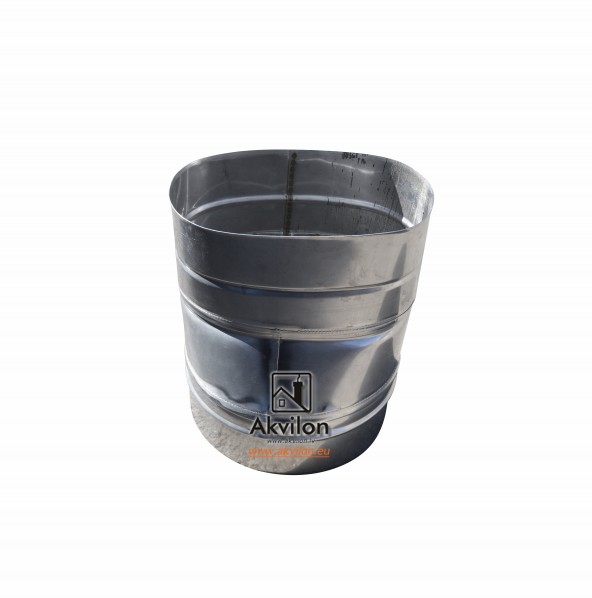

Oval-to-Round Section Adapter (Ellipse-Round) RENOFAST

The RENOFAST oval-to-round adapter is a specialized connector designed to solve a common challenge: how to neatly connect a round pipe to an oval one. Most frequently, it is required when a modern oval stainless steel pipe is inserted into an old brick chimney to protect the brickwork from deterioration. The adapter allows for a simple and airtight connection of a boiler, stove, or fireplace with a standard round outlet to an oval system. As a result, flue gases are discharged efficiently, excellent draft is maintained in the house, and the walls are protected from moisture and soot stains.

The component is made of high-quality stainless steel grades AISI 304L or AISI 316L. This is a special heat-resistant material that withstands high temperatures and resists aggressive condensate produced during fuel combustion. Thanks to precise factory shaping, the adapter ensures long-lasting service and does not deform from heat.

Advantages

• Excellent draft without smoke backflow. The transition shape is smoothly contoured, allowing flue gases to exit freely. No air turbulence forms inside the pipe, which could otherwise push smoke back into the room.
• Protection against rust and burn-through. The specialized stainless steel is highly resistant to the acidic environment of chimney condensate. This means the adapter will not rust through and won't require replacement after just a couple of seasons.
• Simple installation without extra adjustments. All dimensions are maintained with millimeter precision. The elements fit together tightly and easily like a construction set—ensuring no gaps, looseness, or misalignments during assembly.

Technical Specifications

Installation Recommendations

• Reliable sealing. The joint between the round and oval pipe experiences the highest thermal loads. During assembly, be sure to use a special heat-resistant sealant (withstanding up to 1200 °C) and additionally secure the connection with rivets or self-tapping screws.
• Full compatibility. The oval side of the adapter perfectly fits the rest of the system components. It connects seamlessly without gaps to the RENOFAST oval pipe or a tee. No cutting or adjusting on-site will be necessary.
