Stainless steel chimney end plate for oval flue – protection against moisture and weather exposure

The chimney end plate is a protective component installed at the top of an oval flue system. It prevents rain, debris, and moisture from entering the chimney channel, helping to protect the chimney walls and extend the overall service life of the flue system.

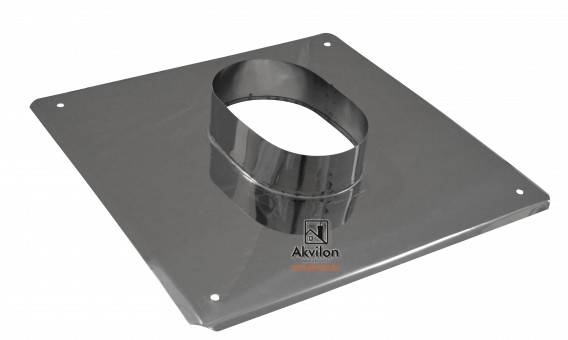

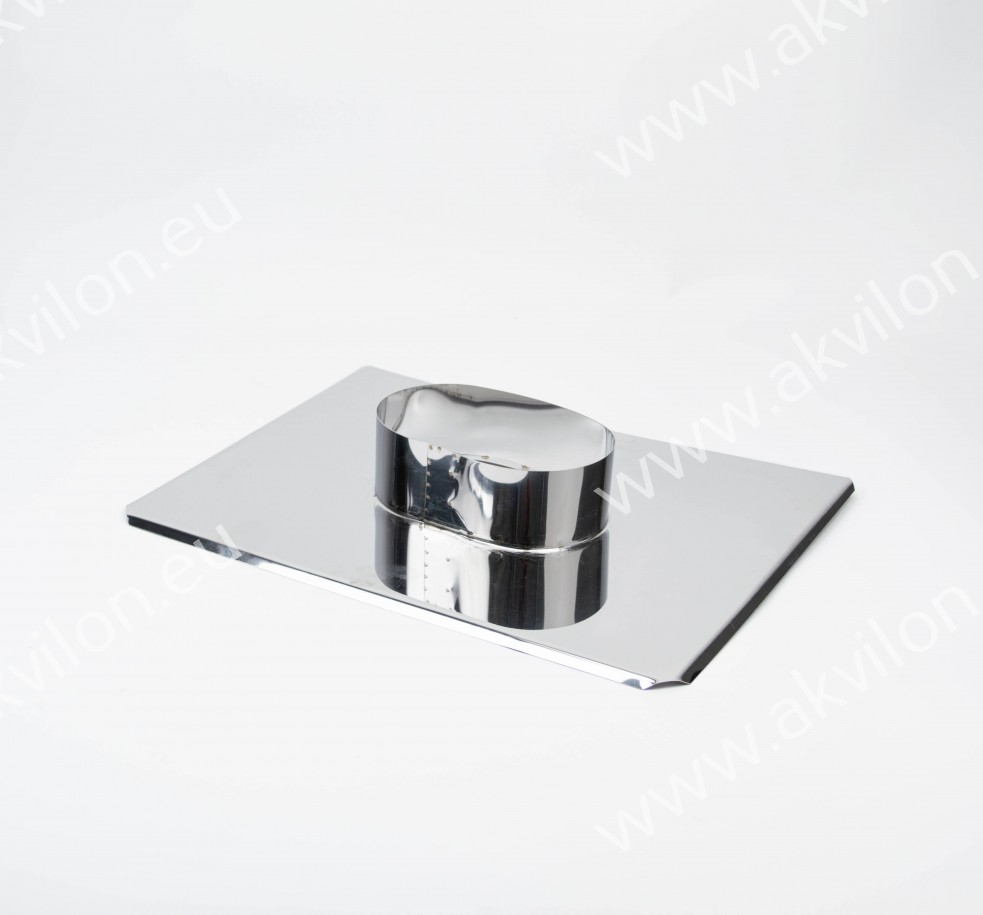

This element is made from high-grade stainless steel (AISI 304L/316L), offering exceptional durability and resistance to weather and corrosion. The metal plate features a precisely cut elliptical opening, allowing the oval flue pipe to pass through securely and tightly. This design ensures a reliable seal at the chimney’s upper edge and provides a clean, professional finish to the installation.

To prevent rainwater from flowing down the walls of the oval insert and to ensure ventilation, an additional fitting called an «Oval storm collar» is installed on the oval pipe above the chimney cap.


Key features and benefits

• Weather protection: Prevents rainwater, snow, and debris from entering the flue and causing damage or blockages.
• Seamless fit: The oval opening is precisely cut to match the dimensions of the elliptical flue pipe for a tight and secure fit.
• Durable material: Constructed from corrosion-resistant stainless steel AISI 304L/316L for long-term performance in outdoor conditions.
• Improved chimney lifespan: Reduces moisture infiltration, helping to preserve brickwork and other structural elements of the chimney.
• Clean visual finish: Enhances the appearance of the chimney system and provides a neat, professional termination.

Manufacturer: SIA Akvilon

Material: Stainless steel AISI 304L/316L, wall thickness from 0,6mm

Diameters: 180x115 and 220x115 mm, other dimensions by order

Certificate: CE

Manufacture of non-standard parts: 3-10 working days
