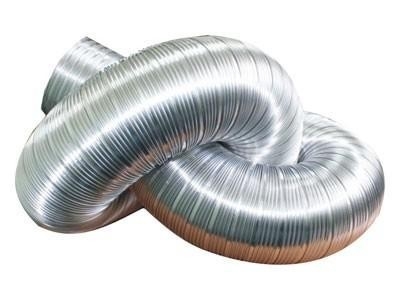

Flexible flue pipe
The indicated price is valid ordering till 05.09.2025.
Flexible corrugated chimney is a flexible pipe made of acid-resistant sheet metal, which is used in exhaust gas extraction systems of heating appliances.
Flexible corrugated pipe is particularly useful in situations where traditional rigid chimney liners cannot be used due to bends or other obstacles in the chimney. It is also designed for efficient modernisation of existing chimney systems. Optimally suited for connection to gas, oil and combination heaters with flue gas temperatures up to 600 °C.
Main features and applications:
Flexibility:
-
Due to its design, the pipe can easily adapt to non-standard chimney shapes and bends.
Acid resistance:
-
Manufactured from acid-resistant sheet metal grade 1444.04 with a thickness of 0.12 mm, it provides corrosion resistance, which is crucial for flue gas discharge from gas and oil boilers where acid condensate is formed.
Usage:
-
For gas and oil boilers with open combustion chamber.
-
Modernisation of existing chimneys where rigid linings are difficult to mount.
-
Wherever where flexible connection of chimney system elements is required.
Features:
-
Quick mounting without special tools
-
High resistance to corrosion
-
Reliable operation in a wide temperature range (-60 to +800 °C)
-
Compliance with European quality and safety standards (EC)

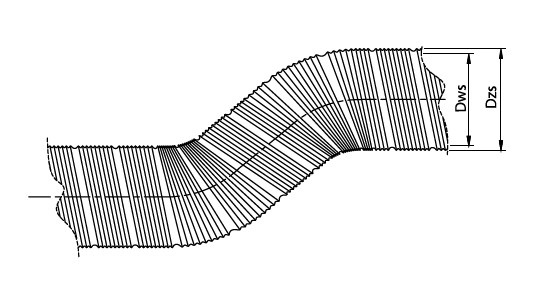

| D (mm) | 80 | 100 | 120 | 125 | 130 | 150 | 160 | 180 | 200 | 250 | 300 | 350 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| L=1000mm | ||||||||||||
| Article | VASLG083 | VASLG103 | VASLG123 | VASLG126 | VASLG133 | VASLG153 | VASLG163 | VASLG183 | VASLG203 | VASLG250 | VASLG300 | VASLG350 |
| Availability | available | available | available | available | available | available | available | available | available | available | available | available |
Specifications:
Material: stainless steel grade 1444.04
Maximum operating temperature: up to 800 °C
Standard length (mm): 1000
Wall thickness: 0,12 mm
Diameter range (mm): 80-350
Certificate: CE
