Wall support bracket
€783Without VAT 6.47 €
Choose a size
Price includes VAT 21%.
The indicated price is valid ordering till 05.09.2025.
The indicated price is valid ordering till 05.09.2025.

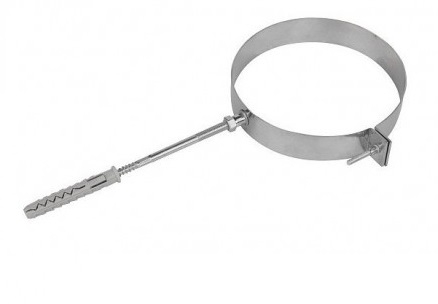

Wall bracket for single-wall flue pipes made of stainless steel
The wall bracket is a mounting component designed for single-wall flue pipes made of stainless steel. It ensures secure and stable installation of the chimney to walls, flue channels, and other structures.
Main Features:
- Material: Made from high-quality stainless steel, resistant to corrosion.
- Stability: Designed to securely hold flue pipes, preventing movement and deformation.
- Easy Installation: The design allows for simple mounting on various surfaces, including brick and concrete walls.
- Adaptability: Available in various sizes and configurations to meet different requirements.
- Compatibility: Compatible with other stainless steel chimney systems.
Applications:
Wall brackets are used for both new chimney system installations and upgrades of existing systems, providing additional support and safety.

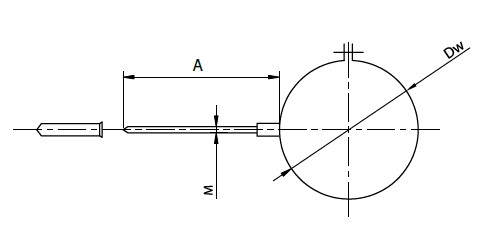

| D (mm) | 80 | 99-105 | 113-118 | 125-130 | 133-137 | 138-142 | 148-152 | 159-166 | 170-195 | 199-212 | 215-226 | 250 | 280 | 300 | 350 | 400 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Article | DNSGN080 | DNSGN100 | DNSGN115 | DNSGN125 | DNSGN130 | DNSGN140 | DNSGN150 | DNSGN160 | DNSGN180 | DNSGN200 | DNSGN220 | DNSGN250 | DNSGN280 | DNSGN300 | DNSGN350 | DNSGN400 |
| Availability | on request | on request | on request | available | on request | on request | on request | on request | on request | on request | on request | available | available | on request | on request | on request |
Chimney system components with a diameter over 200 mm are manufactured within 3–10 working days upon request
Manufacturer: SIA Akvilon
Material: Stainless steel AISI 304, wall thickness from 0.6 mm
Diameter range (mm): 80-800
Certification: CE
