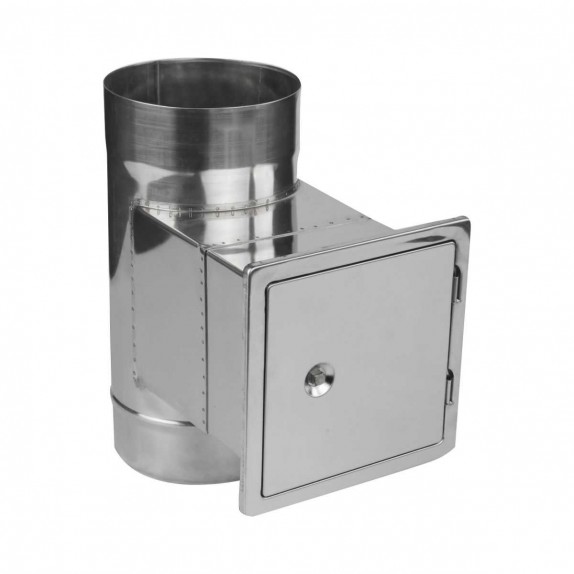

Inspection tee with the rectangular door 140x210
The indicated price is valid ordering till 05.09.2025.
Inspection tee (with cleaning doors) is an essential component of the chimney system, providing easy access to the flue for inspection and soot removal. Regular cleaning and inspections are crucial for maintaining the efficiency and safety of the chimney system, reducing blockages, and minimizing fire risks.
Key Benefits of the Inspection Tee:
Convenient cleaning access:
The tee with rectangular cleaning doors ensures easier and faster access to the flue compared to round doors.
Safety and efficiency:
Regular access to the chimney helps prevent problems and ensures system safety.
Various sizes:
Cleaning doors are available in multiple sizes, such as 140x210 mm, 140x140 mm, and 140x270 mm, to meet different chimney system standards.
Custom manufacturing:
We can manufacture custom tees according to the client’s specific dimensions and requirements.

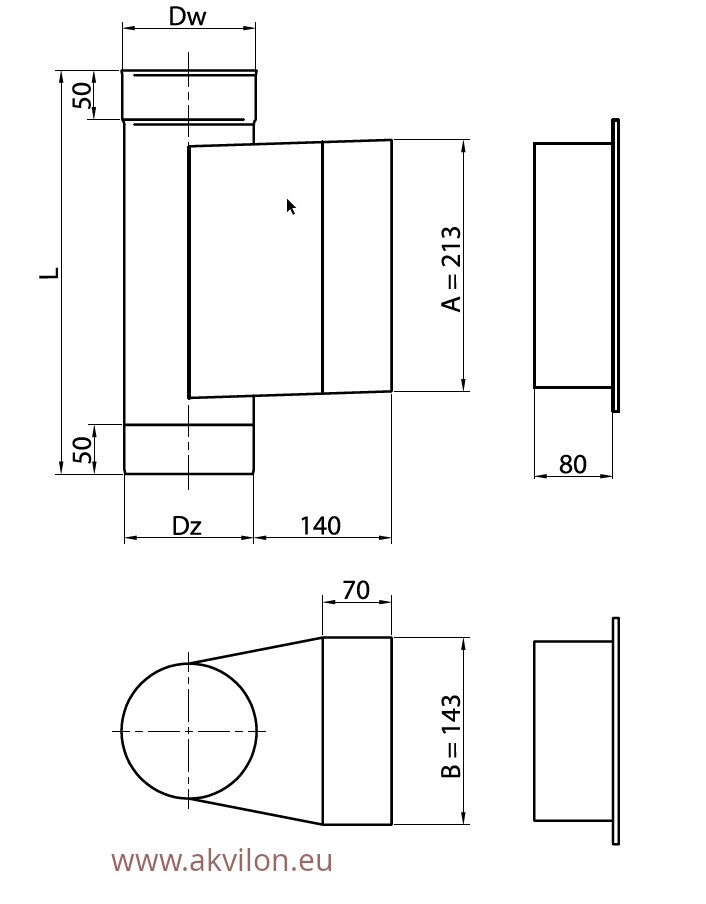

| D (mm) | 120 | 130 | 150 | 160 | 180 | 200 | 225 | 250 | 300 | 350 | 400 |
|---|---|---|---|---|---|---|---|---|---|---|---|
| H | 260 | 270 | 290 | 310 | 320 | 340 | 375 | 375 | 375 | 375 | 375 |
| Article | DVTVK120 | DVTVK130 | DVTVK150 | DVTVK160 | DVTVK180 | DVTVK200 | DVTVK225 | DVTVK250 | DVTVK300 | DVTVK350 | DVTVK400 |
| Availability | on request | on request | on request | on request | on request | on request | on request | on request | on request | on request | on request |
Diameters over 200mm can be produced within 3-10 working days upon request
Manufacturer: SIA Akvilon
Door size: 140x210 / 140x140 / 140x270 / mm.
Material: Stainless steel AISI 304L/316L, wall thickness from 0,6 mm
Diameter range (mm): 80-800
Certificate: CE. EN-1856-2
