Round double wall flues SAUNASKORSTEN 600

• Made of stainless steel, grade 304L, wall thickness 0.8 mm.
• Temperature class T600 (heating appliance exhaust gas temperature up to 600°C).
• Outer casing: stainless steel AISI 430 BA polished, 0.5-0.6 mm, longitudinal seam welded.
• Technical insulation: 50 mm 100 kg/m³; operating temperature up to 680 °C
• Manufacturer's possibilities - non-standard solutions for everyone.

SAUNASKORSTEN 600

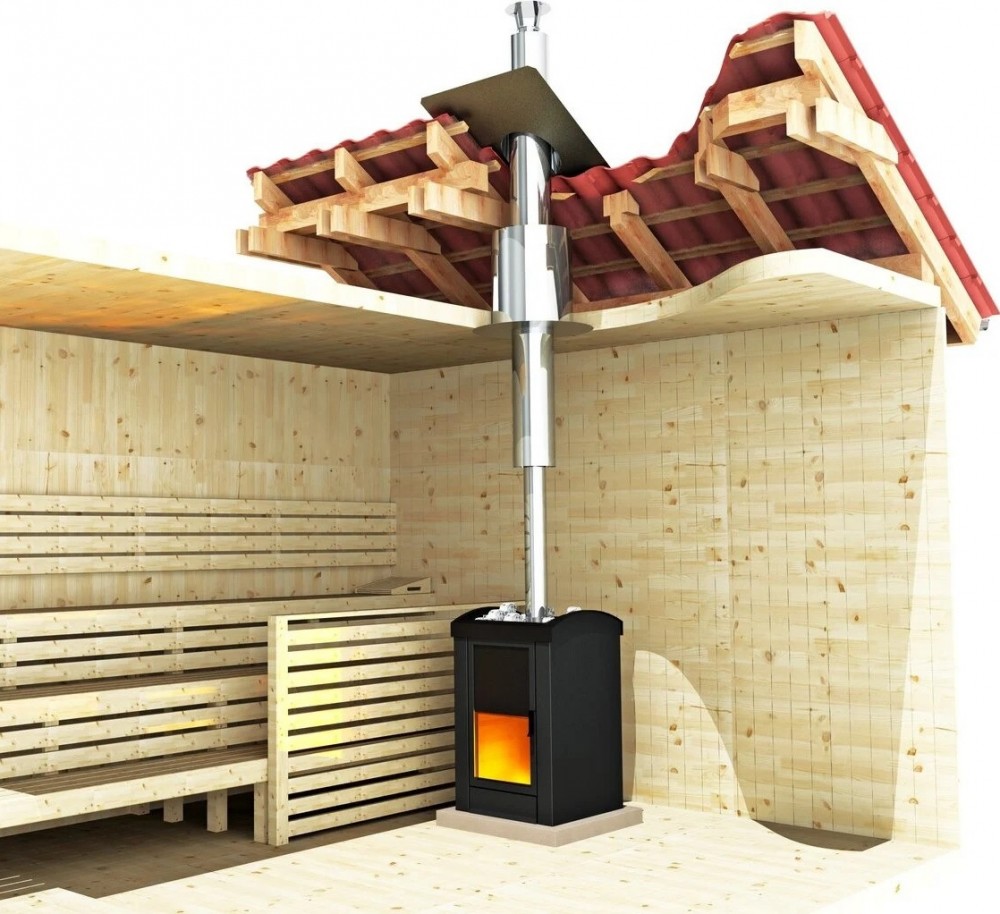

SAUNASKORSTEN 600 system suitable for sauna stoves.

IZOKOMPAKT 600    DN (80-130)      EN1856-1-T600-N1-D-Vm-L20080-G(100)

IZOKOMPAKT 600    DN (150-800)    EN1856-1-T600-N1-D-Vm-L20080-G(100)

   SAUNASKORSTEN 600 - double wall flue system for gas, liquid and solid fuel heating appliances with dry working condition (D). The system is made of stainless steel EN 1.4301/ AISI304, ensuring durability and corrosion protection. SAUNASKORSTEN 600 is manufactured from 0.8 mm thick steel and T600 grade stone wool, which provides high temperature resistance and is able to operate at flue gas temperatures up to 600°C (T600 grade). Separately available with powder coated outer casing in RAL9005 (black).
