Nordic pipe cone - flue upper end
The indicated price is valid ordering till 05.09.2025.

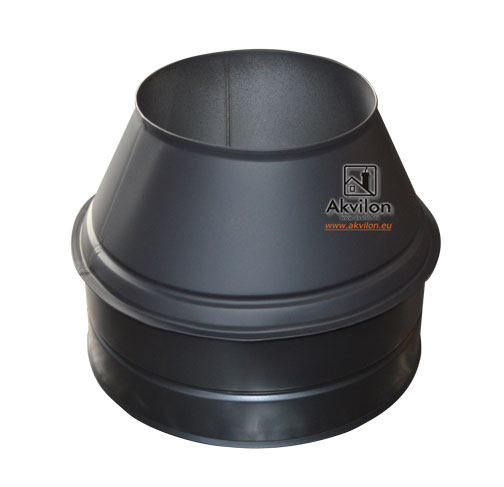

Nordic pipe flue end (cone) - conical end element of an insulated flue. It protects the chimney (insulated flue) structure from precipitation and protects the insulation. It is a necessary end element when installing a stainless steel flue system. A flue roof can be mounted in the cone of an insulated flue.
Alternatively, a "flue end with roof" can be used.
The IZOKOMPAKT insulated flue system is safe and convenient to use, and is certified, CE-marked and complies with the requirements of the current EU standard LVS EN-1856-2.
| D (mm) | 100/200 | 120/220 | 130/225 | 150/250 | 160/250 | 180/280 | 200/300 |
|---|---|---|---|---|---|---|---|
| Article | DNBN10 | DNBN12 | DNBN13 | DNBN15 | DNBN16 | DNBN18 | DNBN20 |
| In stock | on request | on request | on request | on request | available | on request | on request |
Order lead time: 7-10 working days.
Manufacturer: SIA Akvilon
Material and main features:
-
inner pipe: stainless steel AISI 304L/316L, wall thickness from 0,6 mm, longitudinal seam welded, connection with extension
-
insulation: technical 50 mm 100 kg/m³; operating temperature up to 680 °C
-
temperature class T=600°C or T=450°C
-
outer casing: DX51+Z275 galvanised, 0.5 mm, longitudinal seam welded, powder-coated black (matt)
Standard lengths (mm): 1000; 500; 250 or other lengths on request
Diameter range (Dn): 100-300 mm
Certificate: CE, according to EN-1856-2
