Nordic pipe rafter/ceiling support bracket
Choose a size
Price includes VAT 21%.
The indicated price is valid ordering till 05.09.2025.
The indicated price is valid ordering till 05.09.2025.
Nordic pipe rafter support bracket - bracket used to fix the flue pipe to the beams. Consists of a clamp and one profiled pipe.

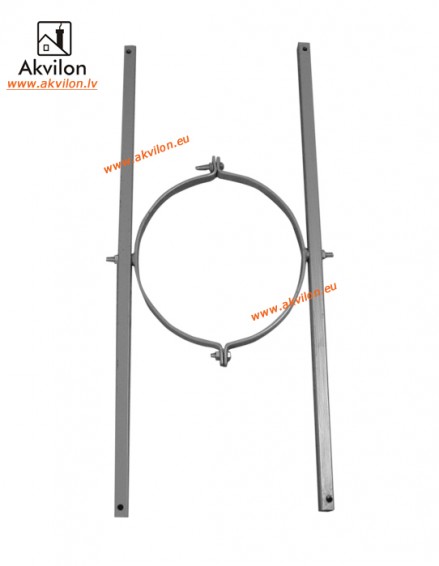

Ceiling bracket - used for fixing the flue pipe at its exit points through the ceiling. Consists of a clamp and 2 profiled pipes.
" Legs" lengths standard 800 mm; 1000 mm or other to order.

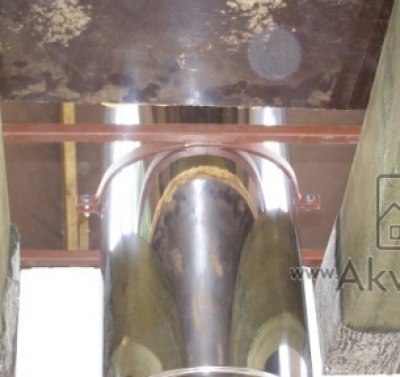

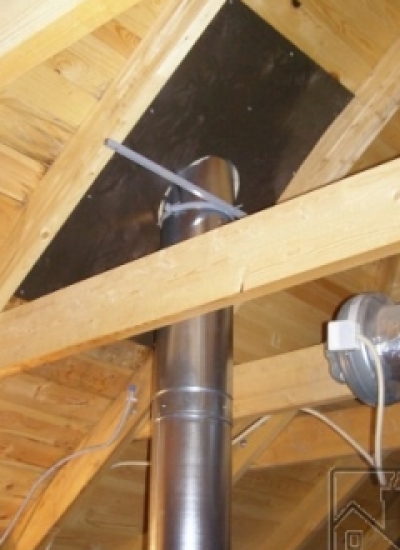

Examples of beam and ceiling mounting:
Stock assortment:
| D (mm) | 225 | 250 | 280 | 280 | 300 | 325 | 350 | 400 | |
|---|---|---|---|---|---|---|---|---|---|
| L | 800mm | 800mm | 800mm | 800mm | 800mm | 800mm | 800mm | 800mm | 800mm |
| Article | DN1DMP800 | DN1DMP8013 | DN1DMP8016 | DN1DMP8018 | DN1DMP8018 | DN1DMP8020 | DN1DMP8022 | DN1DMP8025 | DN1DMP8030 |
| In stock | on request | on request | on request | on request | on request | on request | on request | on request | on request |
Support leg::
| D (mm) | |||
|---|---|---|---|
| L | 800mm | 800mm | 1000mm |
| Article | DN1DMG0800 | DN1DMG08001 | DN1DMG01000 |
| In stock | on request | on request | on request |
Manufacturer: SIA Akvilon
Material and main characteristics:
- temperature class T=600°C or T=450°C
- material: S235 or stainless steel 304. Profiled pipes (depending on bracket size): 20x20x1,5; 20x20x2,0; 25x25x2,0; 30x30x2,0
- post-processing
- powder coating RAL9005
Diameter range (Dn): 10-300 mm
Certificate: CE, according to EN-1856-1 and EN-1090-2 (welded construction)
