Fixing clamp
€605Without VAT 5.00 €
Choose a size
Price includes VAT 21%.
The indicated price is valid ordering till 05.09.2025.
The indicated price is valid ordering till 05.09.2025.

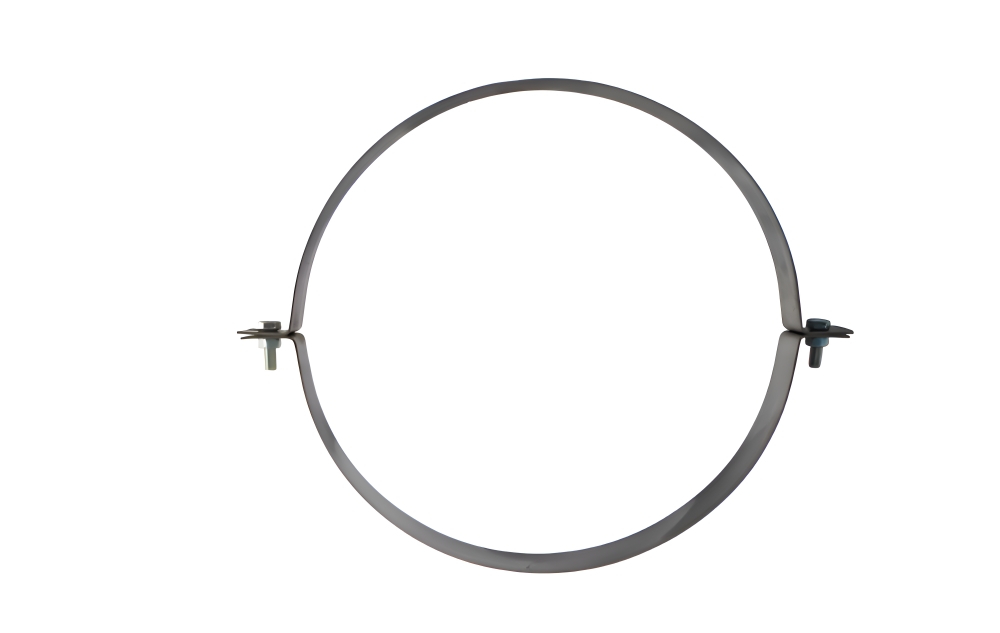

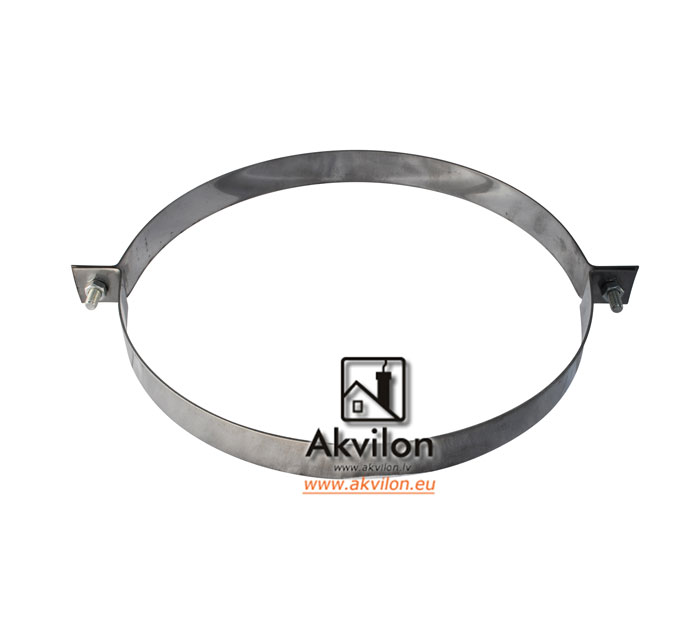

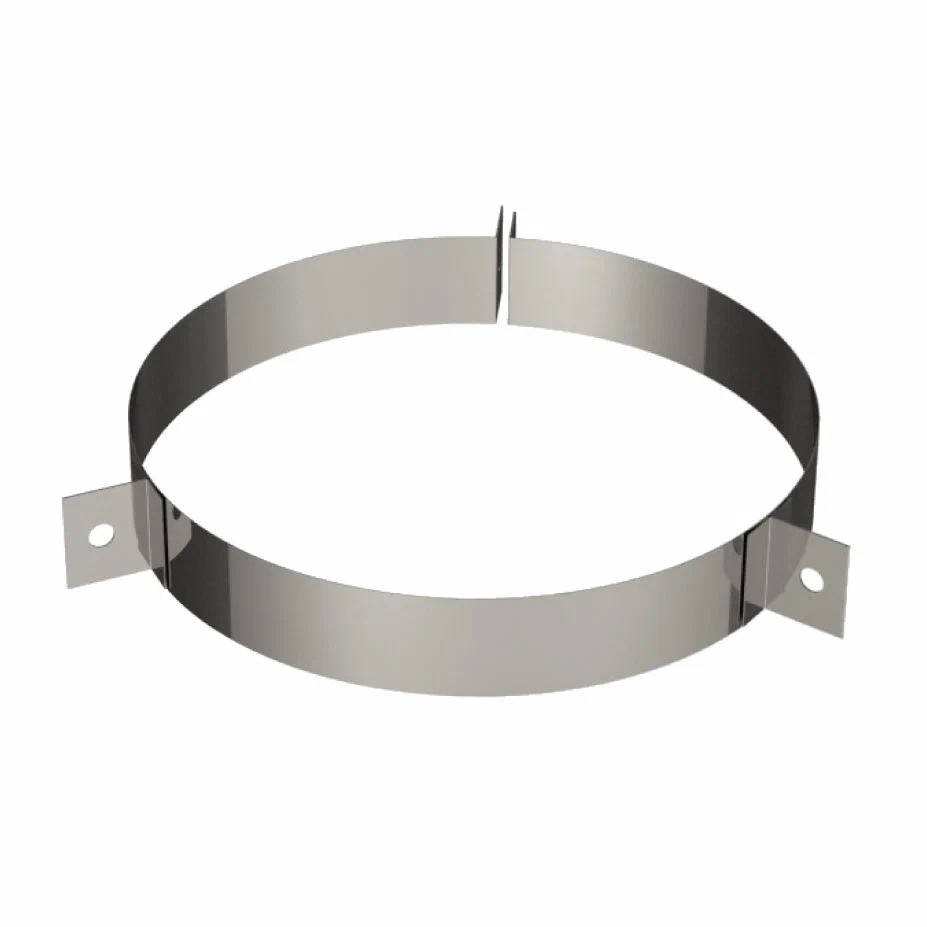

Fixing clamps for insulated flues - this is the mounting element used to fix the pipe. It can be used to make a non-standard bracket on site or to suspend the horizontal flue section from the ceiling using threaded rods.
The flue fixing clamp can be of various modifications:
- with two "ears" , the clamp consists of two parts
- with one 'ear', the clamp consists of one part
- with welded angles for ropes, or feet for close couplings
Stock assortment:
| D (mm) | 200 | 220 | 225 | 250 | 280 | 300 |
|---|---|---|---|---|---|---|
| Article | DN1DNA020 | DN1DNA022 | DN1DNA0225 | DN1DNA025 | DN1DNA028 | DN1DNA030 |
| In stock | on request | on request | yes | yes | yes | yes |
Manufacturer: SIA Akvilon
Materials and main characteristics:
- temperature class T=600°C or T=450°C
- material: stainless steel 430, strip 30x1,5
Diameter range (Dn): 200-900 mm
Certificate: CE, according to EN-1856-1 and EN-1090-2 (welded construction)
