Roof outlet, angled 35°-50°
The indicated price is valid ordering till 05.09.2025.

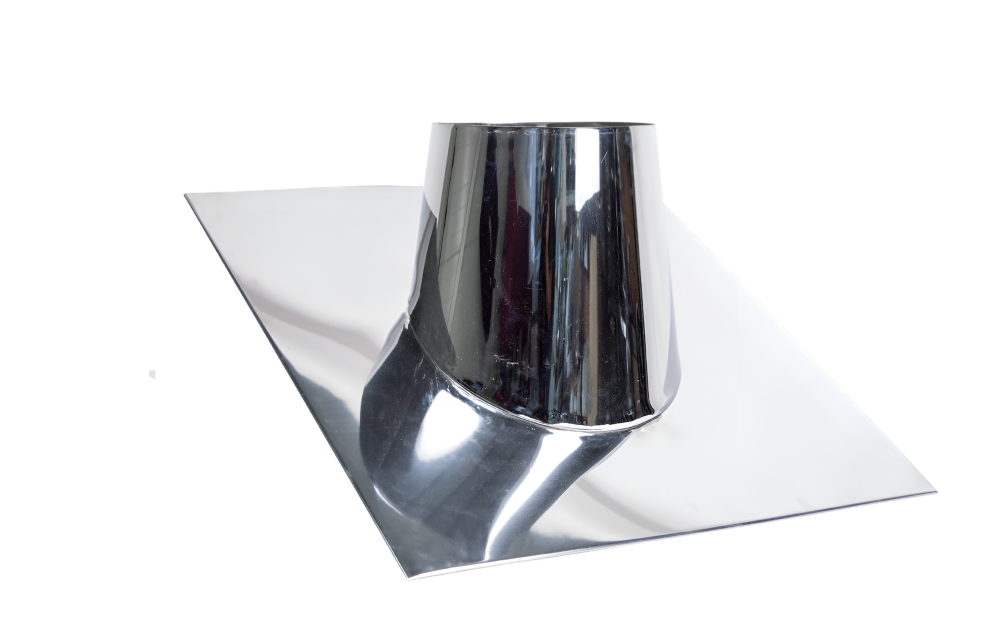

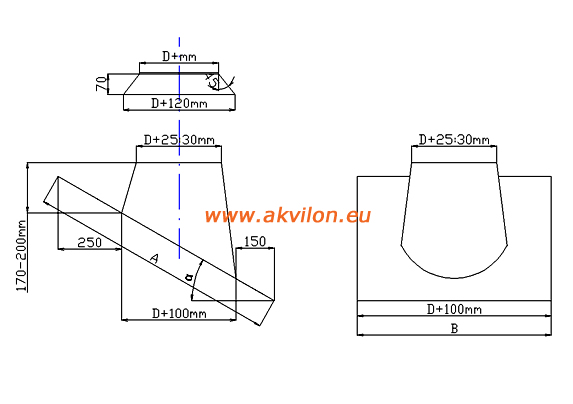

Roof outlet for insulated stainless steel flues (0°-5°; 5°-20°; 20°-35° or to individual order) - used to ensure a hermetic flue pipe exit through the roof. A rain cover (cuff) is mandatory to ensure water tightness between the roof outlet and the flue pipe. The roof outlet can be made to individual order and dimensions, taking into account the pitch of the customer's roof. This fascia consists of two elements: a cone mechanically rolled (on double flanges) into the plate and a plate.
0° - 5° - means that this roof outlet can be installed on roofs with a pitch between 0° and 5°
5° - 20° - means that this roof outlet can be installed on a roof with a pitch between 5° and 20°
20° - 35° - means that this roof outlet can be installed on a roof with a pitch between 20° and 35°
35° - 50° - means that this roof outlet can be installed on a roof with a pitch between 35° and 50°
made to order - made to customer's measurements
The IZOKOMPAKT insulated flue system is safe and convenient to use, and is certified, CE-marked and complies with the requirements of the current EU standard LVS EN-1856-1.
| Angle | Diameter | Article | In stock |
|---|---|---|---|
| 35° - 50° | 100/200 | DN1JI5010 | on request |
| 35° - 50° | 120/220 | DN1JI5012 | on request |
| 35° - 50° | 130/225 | DN1JI5013 | on request |
| 35° - 50° | 160/250 | DN1JI5016 | on request |
| 35° - 50° | 180/280 | DN1JI5018 | on request |
| 35° - 50° | 200/300 | DN1JI5020 | on request |
| other | till D-1000 | not standart | on request |
Dn>300 mm on order within 3-10 working days
Manufacturer: SIA Akvilon
Material and main characteristics:
- temperature class T=600°C or T=450°C
- material: stainless steel AISI 430 BA polished, from 0.5 mm, longitudinal seam welded or industrial rolled
- material: DX51+Z275 galvanized steel, painted steel (PE, PUR. PURMAT), powder coated
- possible angles: from 0° to 60° (product to be selected)
Diameter range (Dn): 100-800 mm
Certificate: CE, according to EN-1856-1
