Roof Flashing 5°-20°
code: dn1ji2010
manufacturer: AKVILON
In stock, cnt.
€7080Without VAT 58.51 €
Choose a size
Price includes VAT 21%.
The indicated price is valid ordering till 12.09.2026.
The indicated price is valid ordering till 12.09.2026.
Insulated Chimney Roof Flashing 5°-20°
Description and Purpose
The Roof Flashing with a slope of 5°–20° is a waterproofing element designed to seal the chimney exit point through a pitched roof with a low slope.

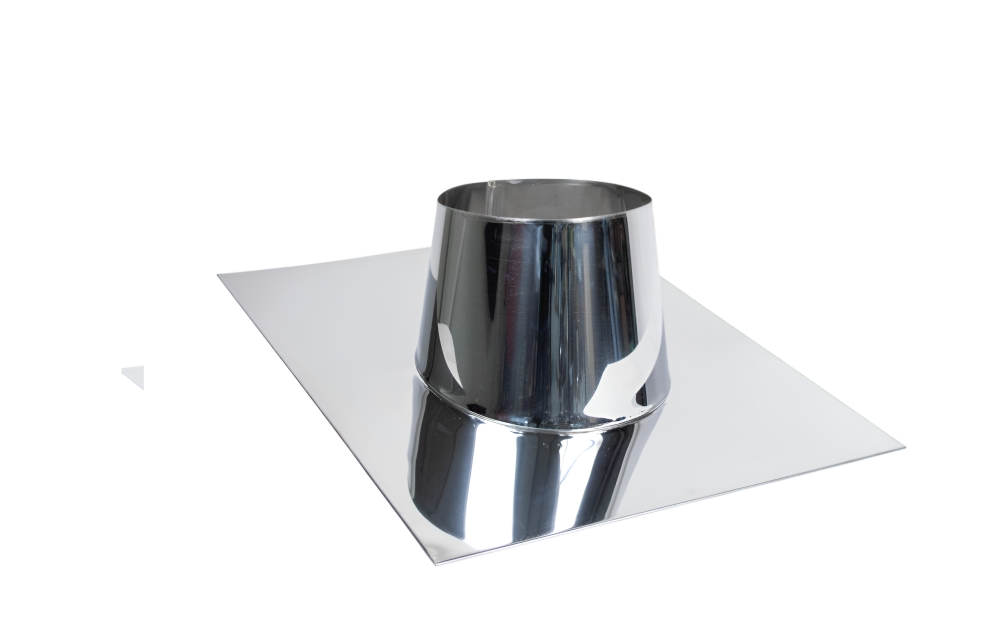

The element consists of a metal base plate and a cone welded to it. The cone is positioned at a specific angle to the base, which allows the chimney to be installed strictly vertically, despite the roof pitch.
Key Features
- For low-pitch roofs: The geometry is specifically calculated for gentle slopes (e.g., verandas, sheds, lean-to roofs, or modern single-pitch roofs).
- Precipitation protection: The wide base securely covers the roof opening, preventing moisture from entering the under-roof space.
- System approach: This element does not seal the gap between the pipe and the cone by itself. For complete waterproofing, a storm collar must be used.
Technical Specifications
| Product type | Roof Flashing |
| Roof slope | 5 – 20 degrees (Low pitch) |
| Available diameters (mm) (inner / outer) |
100/200, 120/220, 130/225, 160/250, 180/280, 200/300 |
| Material | Stainless steel (Painted/Galvanized on request) |
| Compatibility | For Izokompakt insulated chimneys |
Important Installation Recommendations
- Joint sealing: A technological gap remains between the chimney and the flashing cone. This gap must be covered from above by a storm collar, and the joint sealed with heat-resistant silicone. Without the storm collar, water will leak into the house along the pipe wall!
- Water shedding: The top edge of the base plate must be tucked under the roofing material (towards the ridge), while the bottom edge should lie over the roofing. This ensures proper rainwater runoff ("shingle effect").
Other Slope Options
If your roof pitch is different, select the corresponding variant:
