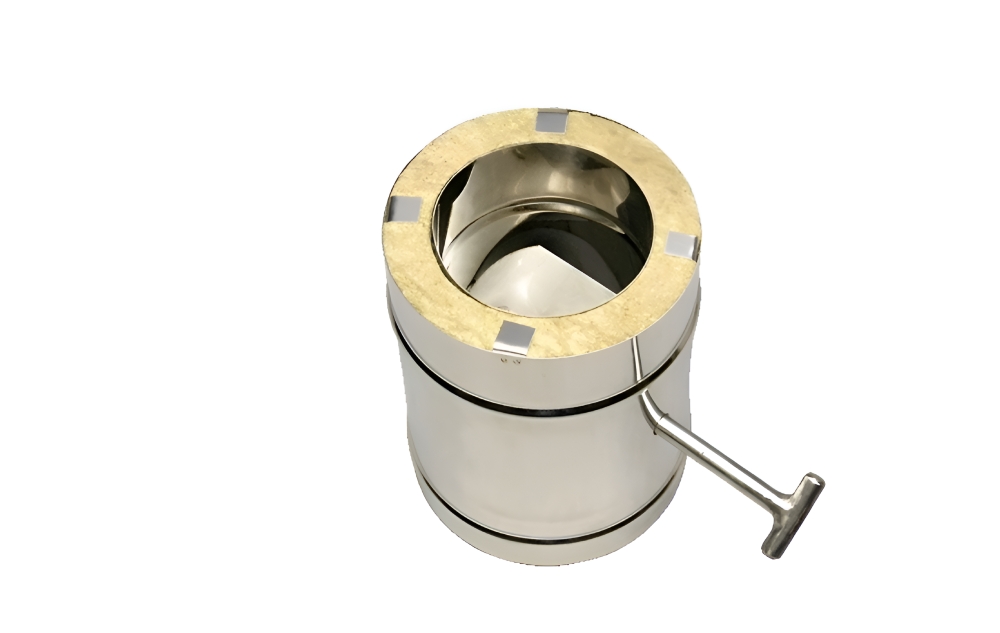

Insulated flue damper
The indicated price is valid ordering till 05.09.2025.
Insulated flue damper (insulated flue shutter, insulated flue gate valve) - a flue system element used to regulate draught by partially covering the flue, and also used as a valve to prevent warm air from escaping the room.
The element shall be designed in accordance with LVS EN 16510-1:2023 to provide an opening area of not less than 20 cm² or 3 % of the cross-section of the chimney blade.
The IZOKOMPAKT insulated flue system is safe and convenient to use, and is certified, CE-marked and complies with the requirements of the current EU standard LVS EN-1856-1.
| D (mm) | 100/200 | 120/220 | 130/225 | 150/250 | 160/250 | 180/280 | 200/300 |
|---|---|---|---|---|---|---|---|
| H | |||||||
| Article | DNADD10 | DNADD12 | DNADD13 | DNADD15 | DNADD16 | DNADD18 | DNADD20 |
| In stock | * pas | ** pas | pas | *** pas | pas | pas | pas |
Dn>200 mm on order within 3-10 working days
Adapters available in stock:
* From D-100 mm to D-130 mm
** From D-120 mm to D-130 mm
*** From D-150 mm to D-160 mm
Manufacturer: SIA Akvilon
Materials and main features:
- inner tube: stainless steel AISI 304L/316L, wall thickness from 0,6 mm, longitudinal seam welded, connection with extension
- insulation: technical 50 mm 100kg/m³; operating temperature up to 680 °C
- temperature class T=600°C or T=450°C
- outer casing: stainless steel AISI 430 BA polished, 0,5 mm, longitudinal seam welded or industrial rolled
- outer casing to order: DX51+Z275 galvanised steel, painted steel (PE, PUR. PURMAT), powder-coated
Standard lengths (mm):
Diameter range (Dn): 100-800 mm
Certificate: CE, according to EN-1856-1
