Rafter/ceiling support 1000 mm
€2856Without VAT 23.60 €
Choose a size
Price includes VAT 21%.
The indicated price is valid ordering till 21.10.2025.
The indicated price is valid ordering till 21.10.2025.

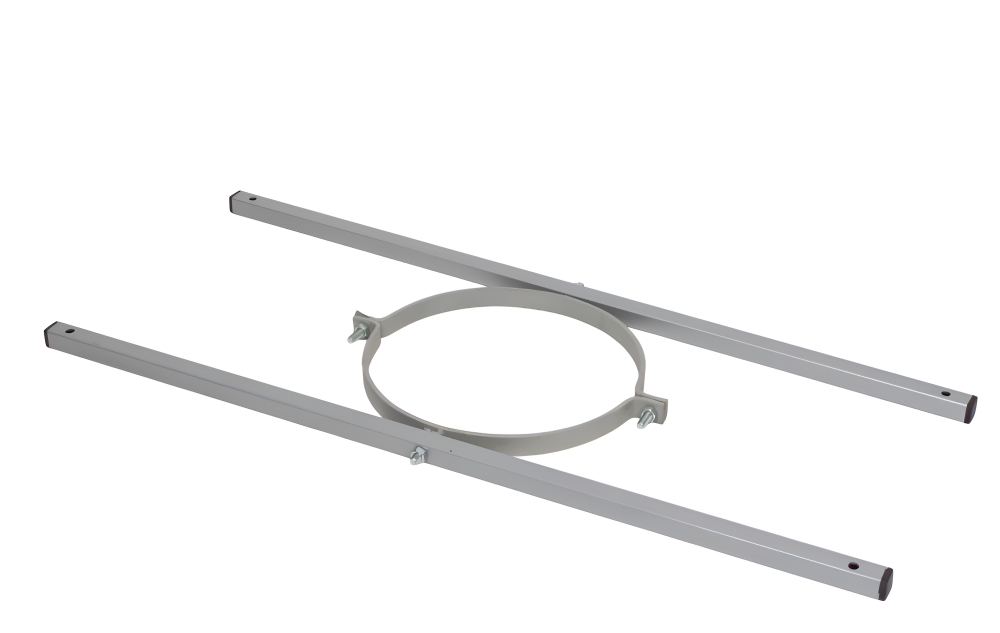

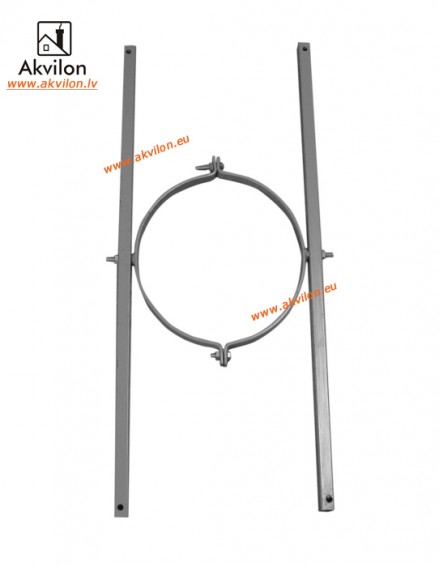

Insulated chimney fixing to rafter - a bracket used to fix the chimney pipe to the rafters. It consists of a clamp and one profiled pipe.
Insulated chimney fixing to ceilings - used to fix the chimney where it exits through the ceilings. It consists of a clamp and 2 profiled pipes.

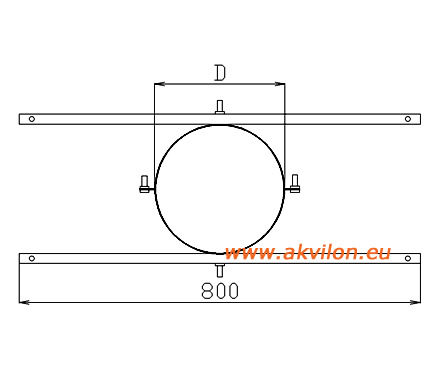

The standard length of the "legs" is 1000 mm or other to order.
Examples of fixings:
Stock range:
| D (mm) | 225 | 250 | 280 | 300 |
|---|---|---|---|---|
| L=1000mm | ||||
| Article | DN1DMP8013100 | DN1DMP8016100 | DN1DMP8018100 | DN1DMP8020100 |
| In stock | on request | on request | on request | on request |
Manufacturer: SIA Akvilon
Material and main characteristics:
- temperature class T=600°C or T=450°C
- material: S235 or 304 stainless steel. Profiled tubes (depending on bracket size): 20x20x1,5; 20x20x2,0; 25x25x2,0; 30x30x2.0
- post-processing
- powder coating RAL9006;
- grinding of stainless steel welded seams
- zinc galvanizing
Diameter range (Dn): 225-900 mm
Certificate: CE, according to EN-1856-1 and EN-1090-2 (welded construction)
