Wall support bracket for flue till 450 mm
The indicated price is valid ordering till 05.09.2025.

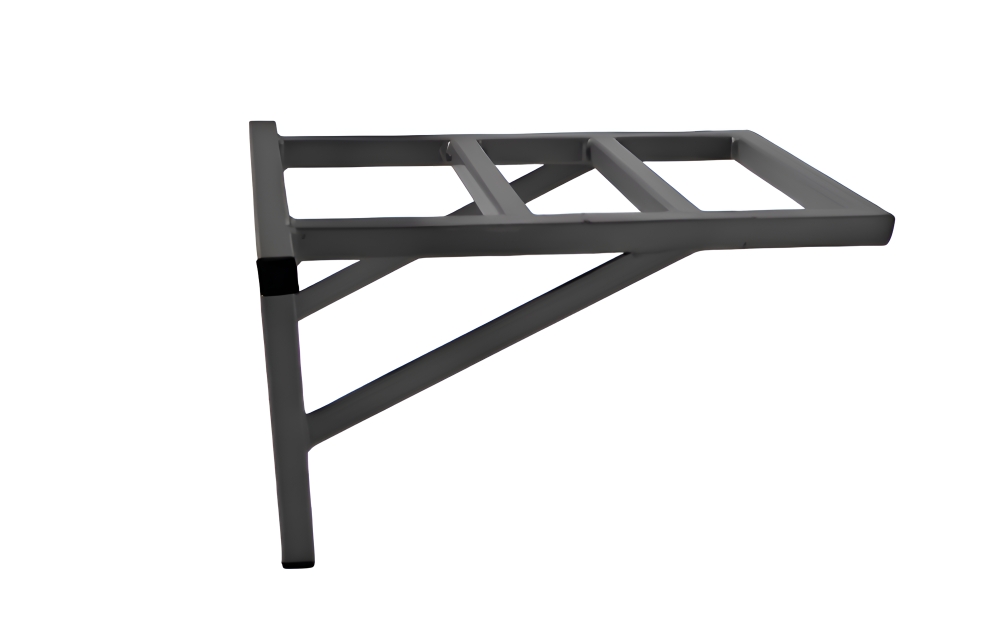

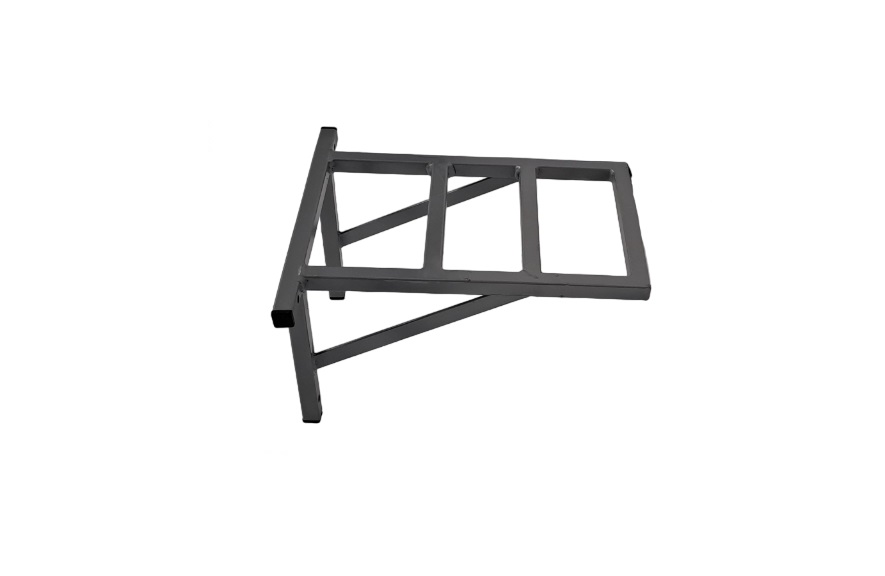

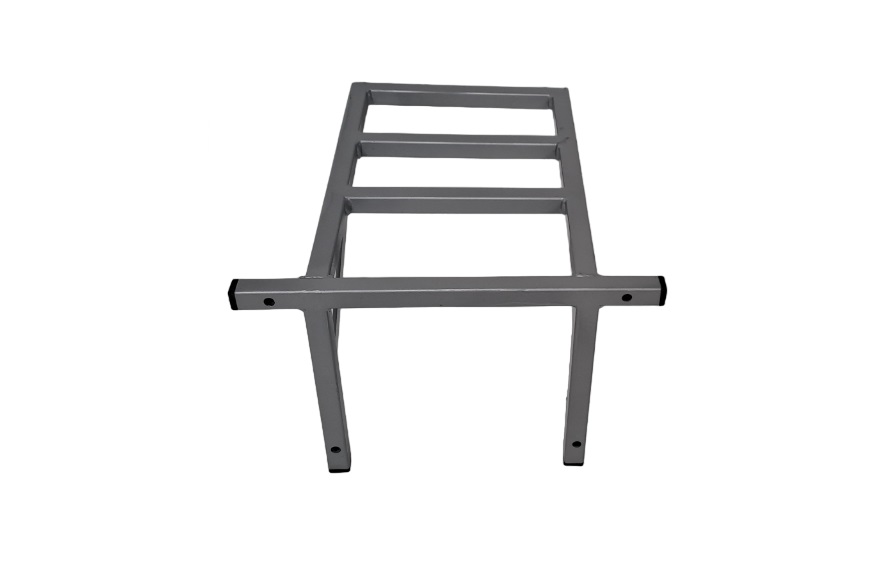

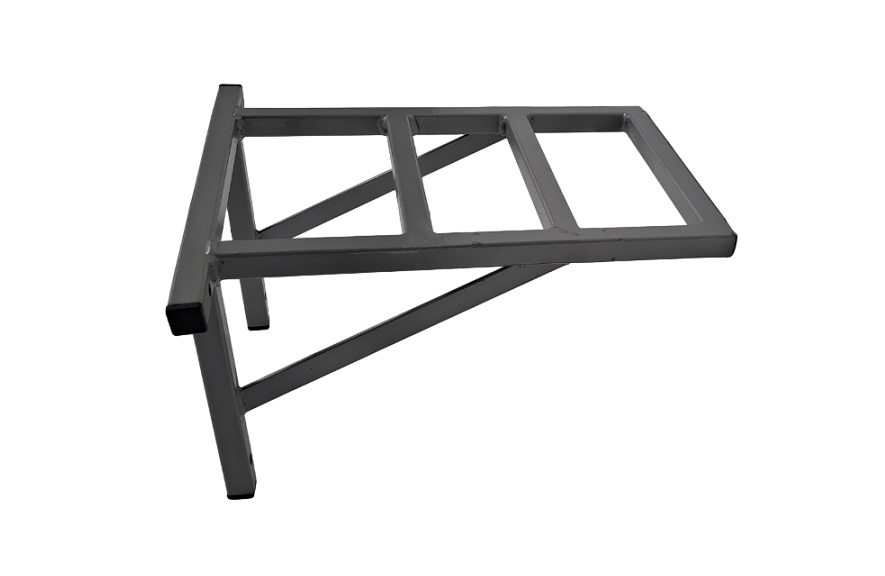

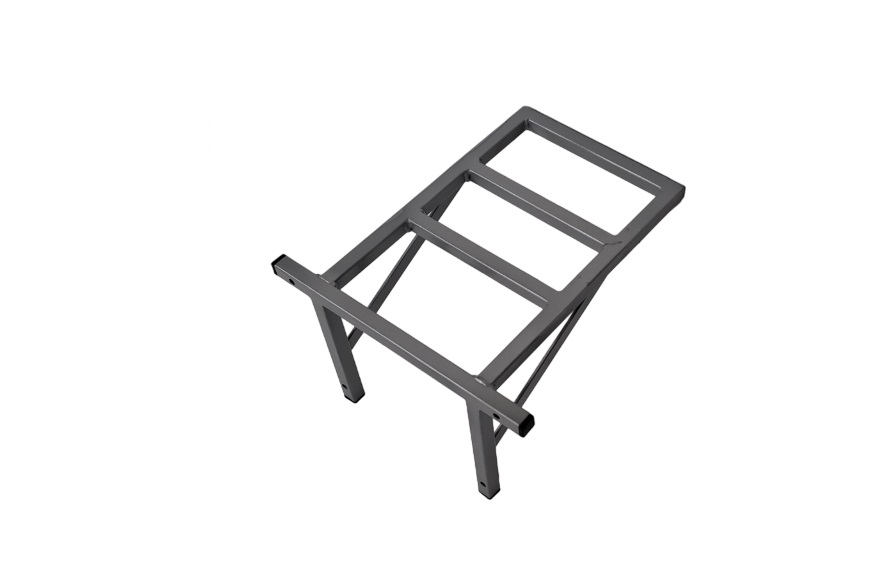

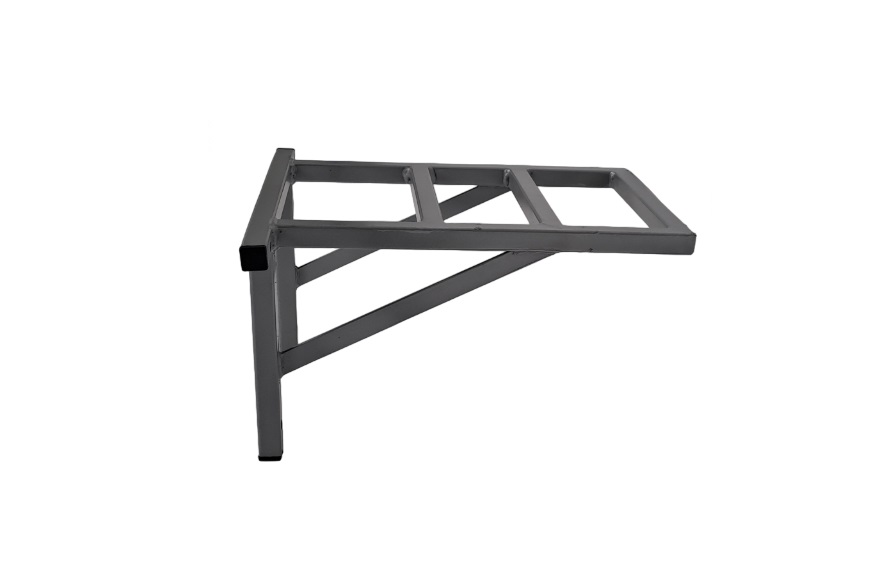

Insulated flue wall support bracket till 450 mm - used to support the flue riser (at longer distances from the wall).
Manufactured to customer's dimensions (required flue to wall distance).

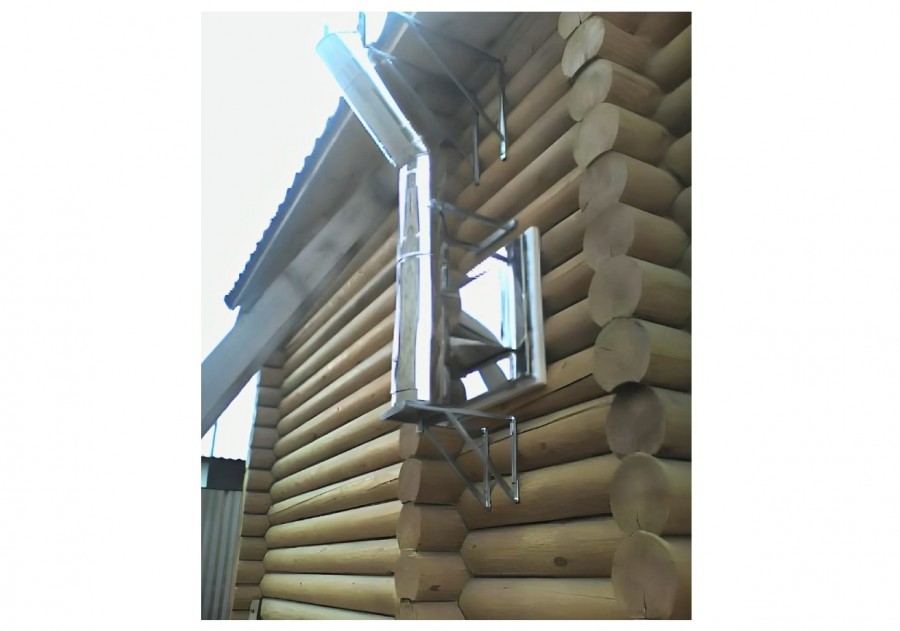

The modular insulated flue system allows the flue to be supported according to the classical scheme, where the three-piece condensate outlet is supported on this type of bracket (in this case the condensate outlet cannot be removed), or the fitting "mounting platform" with condensate outlet can be used (in this scheme the lower condensate outlet can be removed during operation and the flue can be cleaned).
The use of welded adjustable flue wall brackets manufactured by SIA Akvilon at wall distances up to 600 mm can dispense without supporting the flue.
| D (mm) | 225 | 250 | 280 | 300 |
|---|---|---|---|---|
| L(mm) from wall till | 450 | 450 | 450 | 450 |
| Article | DN1DMM4513 | DN1DMM4516 | DN1DMM4518 | DN1DMM4520 |
| In stock | on request | on request | on request | on request |
Manufacturer: SIA Akvilon
Materials and main features:
- temperature class T=600°C or T=450°C
- material: S235 black metal + powder coating or stainless steel 304 / 430
- post-processing
- powder coating RAL9006
- stainless steel welded seam grinding
- galvanising
Diameter range (Dn): 225-900 mm
Certificate: CE, according to EN-1856-1 and EN-1090-2 (welded construction)
