Chimney Rain Cap
code: dvjv0100
manufacturer: AKVILON
In stock, 40+ cnt.
€2304Without VAT 19.04 €
Choose a size
Price includes VAT 21%.
The indicated price is valid ordering till 12.09.2026.
The indicated price is valid ordering till 12.09.2026.

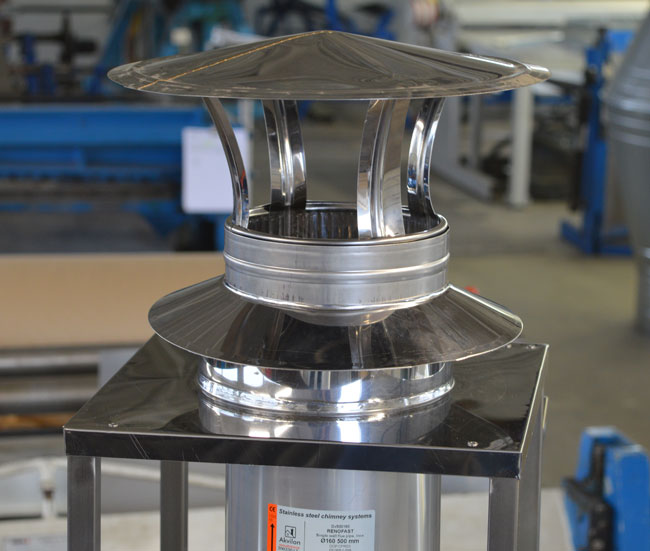

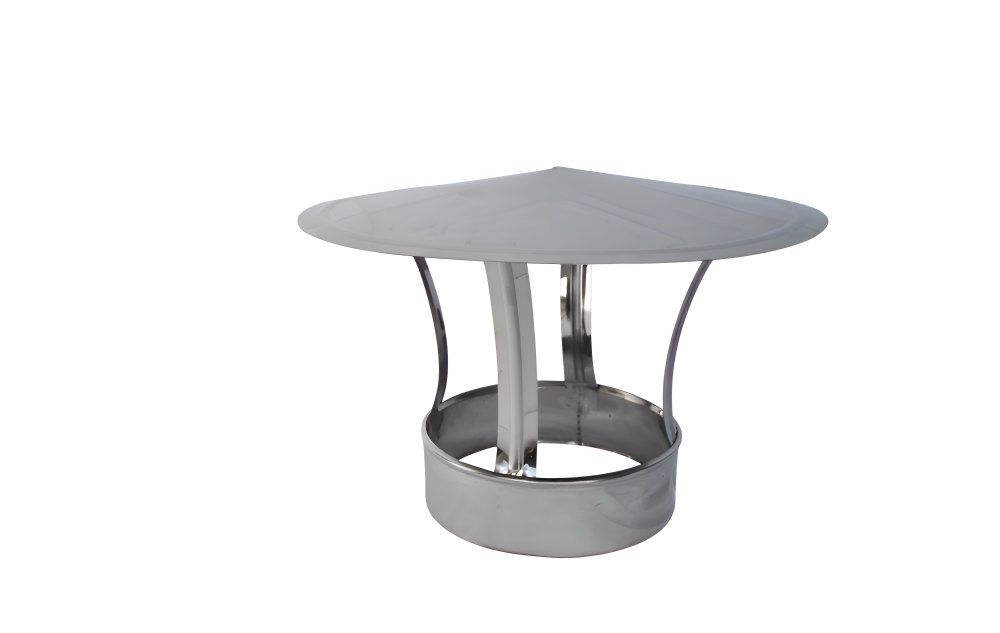

Chimney Rain Cap
Description and Purpose
The Chimney Rain Cap (also called a cowl or visor) is the finishing element of the chimney system, installed at the very top of the pipe. Its main task is to protect the flue channel from atmospheric precipitation, debris, and birds.
The product is made of high-quality stainless steel, resistant to corrosion and exposure to flue gases.
Key Advantages
- Moisture protection: The wide dome reliably covers the pipe mouth, preventing rain and snow from entering the chimney, which protects the boiler and internal walls from moisture destruction.
- Stable draft: The height of the supports and the diameter of the cap are engineered so as not to create resistance to the escaping smoke.
- Versatility: The connection design (Male / Spigot) allows the cap to be inserted both inside a standard pipe and into the cone-finish of an insulated chimney.

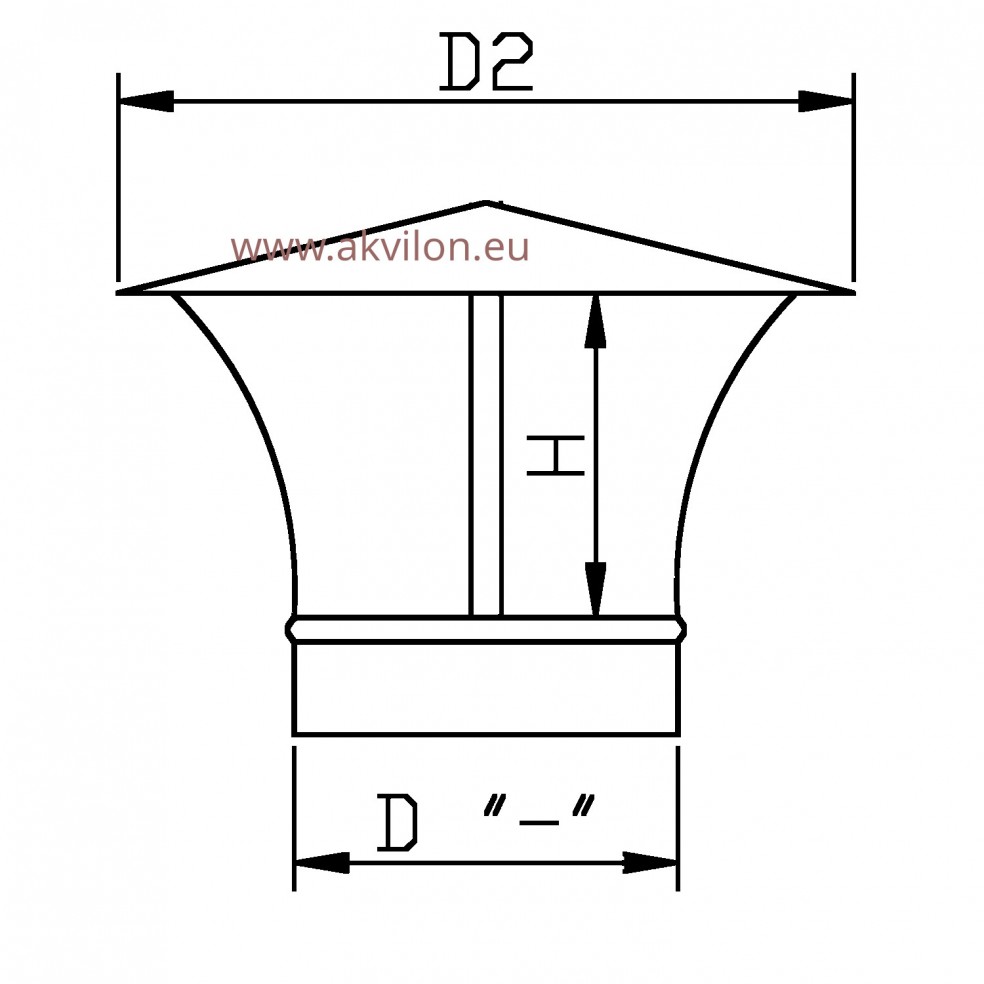

Technical Specifications
| For Pipe Ø (Dn) | Dome Diameter (D2) | Support Height (H) |
|---|---|---|
| 100 mm | 230 mm | 100 mm |
| 120 mm | 290 mm | 120 mm |
| 130 mm | 290 mm | 120 mm |
| 150 mm | 325 mm | 145 mm |
| 160 mm | 325 mm | 145 mm |
| 180 mm | 330 mm | 150 mm |
| 200 mm | 360 mm | 160 mm |
Important Recommendations
- Installation: The cap is inserted inside the pipe or cone. For secure fixation against wind, it is recommended to additionally fasten the connection with stainless steel screws or rivets.
- Spark arresting: The standard cap does not stop sparks. If you have a sauna, a house with a soft roof (bitumen), or trees nearby, we strongly recommend using a cap with spark arrestor (mesh).
