Insulated bend 90° with inspection door
code: dnalr9010
manufacturer: AKVILON
production 2-7 working days
€10872Without VAT 89.85 €
Choose a size
Price includes VAT 21%.
The indicated price is valid ordering till 12.09.2026.
The indicated price is valid ordering till 12.09.2026.

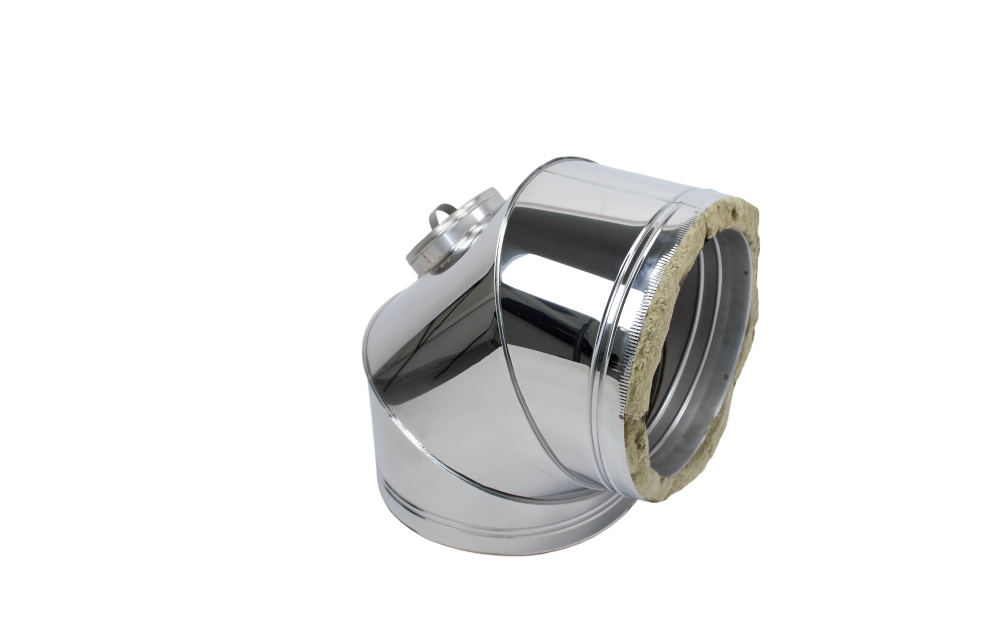

Insulated Chimney Bend 90° with Inspection
Description and Purpose
The Insulated Bend 90° with Inspection is an upgraded version of the standard bend. It is designed to change the direction of the chimney at a right angle while maintaining access for channel maintenance.
Why built-in inspection is needed:
A standard 90° angle creates a difficult-to-reach zone for cleaning, where soot accumulates most actively. The built-in hatch on the outer radius of the turn solves this problem, providing direct access to both horizontal and vertical pipe sections for easy cleaning without dismantling the chimney.
Key Features
- Compactness: Allows combining a turn and a maintenance point in one node. This saves space compared to the bulky combination of a "Tee + Cap".
- Safety: The inspection opening is closed by a hermetic insulated cap, which prevents freezing and smoke leakage into the room.
- Durability: The inner liner and the inspection spigot are made of acid-resistant stainless steel AISI 304L/316L.
Technical Specifications
| Product type | Bend 90° with Inspection |
| Angle | 90 degrees |
| Available diameters (mm) (inner / outer) |
100/200, 120/220, 130/225, 150/250, 160/250, 180/280, 200/300 |
| Inner material | Stainless steel AISI 304L / 316L (0.6 mm) |
| Outer casing | Stainless steel or Galvanized / Painted (RAL) |
| Insulation | Rock wool 50 mm (density 100 kg/m³) |
Installation Tips
- Accessibility: When installing, orient the elbow so that there is free access to the inspection cover. Do not brick up the hatch in the wall.
- Alternative: If you have enough space and the turn does not require maintenance (for example, immediately after a tee), you can use a regular 90° elbow without inspection, which will be cheaper.
- Support: Like any elbow, this element must not bear the weight of the entire vertical chimney. Use load-bearing brackets.
Delivery
- Pickup at our store (warehouse) ( AKVILON, Mazā Rencēnu 6, Rīga )
- Venipak (delivery 4.50 €. Free delivery above 100.00 €)
- courier
Payment
- Payment upon receiving the order in our store (by card or in cash)
- Bank transfer upon automatically issued invoice
- creditcard, Swedbank, SEB, Citadele, Luminor
