Insulated bend 90°
code: dnal9010
manufacturer: AKVILON
production 2-7 working days
€7224Without VAT 59.70 €
Choose a size
Price includes VAT 21%.
The indicated price is valid ordering till 12.09.2026.
The indicated price is valid ordering till 12.09.2026.

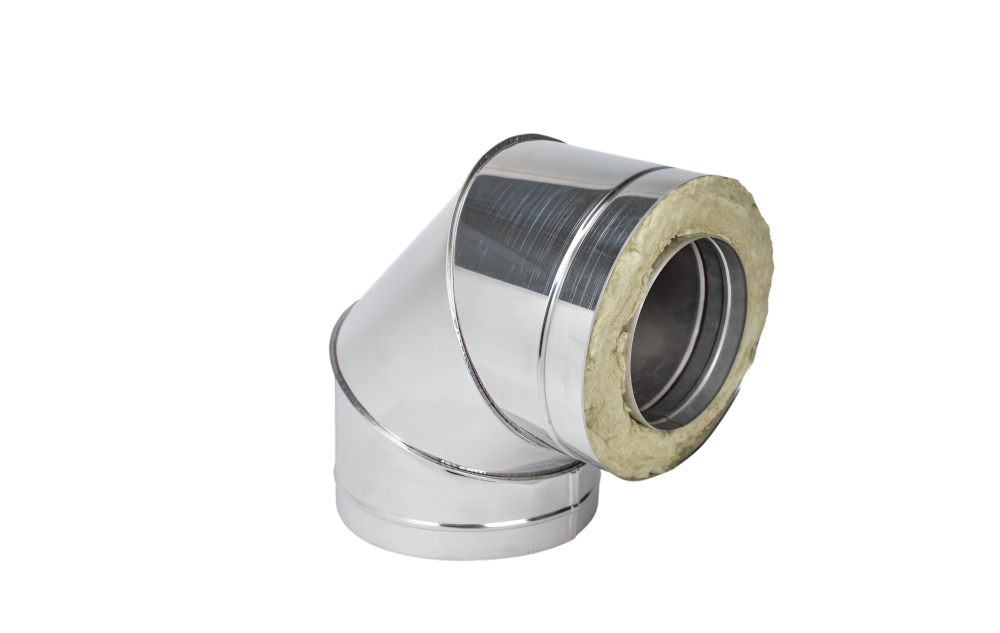

Insulated Chimney Bend 90°
Description and Purpose
The Insulated Bend 90° (often referred to as an "elbow") is a modular chimney element that allows changing the direction of the flue channel at a right angle.
Applications:
- Connection: Connecting the horizontal outlet of the boiler to the vertical chimney stack (usually via a tee).
- Bypassing obstacles: Offsetting the chimney axis to bypass beams, overhangs, or wall protrusions.
- Configuration change: Passing the chimney through a wall to the outside.
Key Features
- Thermal insulation: Turning sections are most vulnerable to freezing and soot accumulation. The layer of rock wool (50 mm) maintains gas temperature while passing through the turn, reducing the risk of clogging.
- Smooth channel: The inner pipe is butt-welded, ensuring a perfectly smooth surface and minimizing flow turbulence at the sharp turn.
- Reliability: The outer and inner contours are rigidly fixed, preventing insulation displacement.
Technical Specifications
| Product type | Bend (Elbow) |
| Angle | 90 degrees |
| Available diameters (mm) (inner / outer) |
100/200, 120/220, 130/225, 150/250, 160/250, 180/280, 200/300 |
| Inner material | Stainless steel AISI 304L / 316L (0.6 mm) |
| Outer casing | Stainless steel or Galvanized / Painted (RAL) |
| Insulation | Rock wool 50 mm (density 100 kg/m³) |
Installation Tips
- Draft Influence: A 90° turn creates significant aerodynamic resistance. Try not to use more than 2 such turns per system. If possible, it is better to use two 45° elbows for smoother gas flow.
- Cleaning: Cleaning a chimney through a 90° bend is difficult. Be sure to provide an inspection hatch near the turning point.
- Support: When transitioning from a horizontal to a vertical section (via a 90° elbow), the vertical part must have its own support — a Wall Support Console or a load-bearing plate, so that the weight of the pipe does not press on the elbow.
Delivery
- Pickup at our store (warehouse) ( AKVILON, Mazā Rencēnu 6, Rīga )
- Venipak (delivery 4.50 €. Free delivery above 100.00 €)
- courier
Payment
- Payment upon receiving the order in our store (by card or in cash)
- Bank transfer upon automatically issued invoice
- creditcard, Swedbank, SEB, Citadele, Luminor
