Bottom adapter "-"
The indicated price is valid ordering till 05.09.2025.

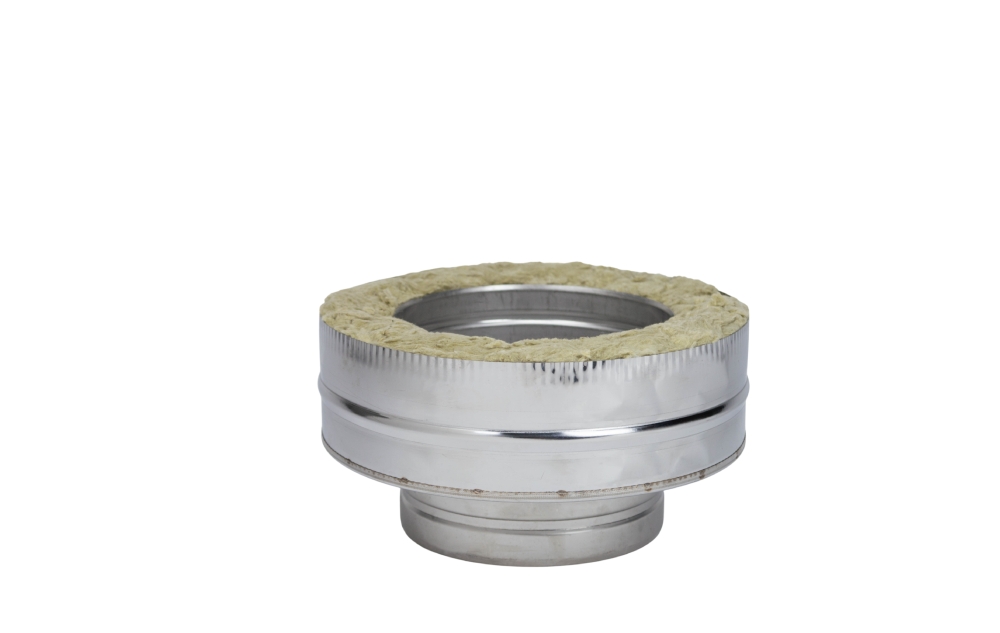

Insulated flue bottom adapter "-" - starting element of an insulated flue, transition to a single-walled flue, allowing connection of a heating device. Bottom adapter "-" - tapered at the bottom, which means that the single-walled elements are connected in the condensate direction. The bottom adapter is usually connected to the single-walled flue or straight to the heating device.
The insulated modular flue system is safe and convenient to use, and is certified, CE-marked and complies with the requirements of the current EU standard LVS EN-1856-1.

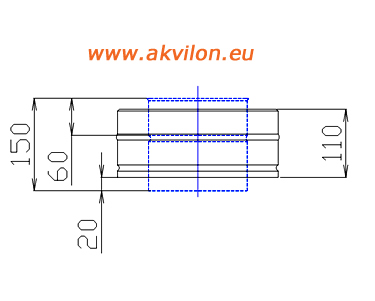

| D (mm) | 100/200 | 120/220 | 130/225 | 150/250 | 160/250 | 180/280 | 200/300 |
|---|---|---|---|---|---|---|---|
| H | |||||||
| Article | DNAADS10 | DNAADS12 | DNAADS13 | DNAADS15 | DNAADS16 | DNAADS18 | DNAADS20 |
| In stock | * pas | ** pas | yes | *** pas | yes | yes | yes |
Dn>200 mm on order within 3-10 working days
Adapters available in stock:
* FromD-100 mm to D-130 mm
** From D-120 mm to D-130 mm
*** From D-150 mm to D-160 mm
Manufacturer: SIA Akvilon
Materials and main features:
- inner pipe: stainless steel AISI 304L/316L, wall thickness from 0,6 mm, longitudinal seam welded, connection with extension
- insulation: technical 50 mm 100kg/m³; operating temperature up to 680 °C
- temperature class T=600°C or T=450°C
- outer casing: stainless steel AISI 430 BA polished, 0.5 mm, longitudinal seam welded or factory rolled
- outer casing to order: DX51+Z275 galvanized steel, painted steel (PE, PUR. PURMAT), powder-coated
Standard lengths (mm):
Diameter range (Dn): 100-800 mm
Certificate: CE, according to EN-1856-1
