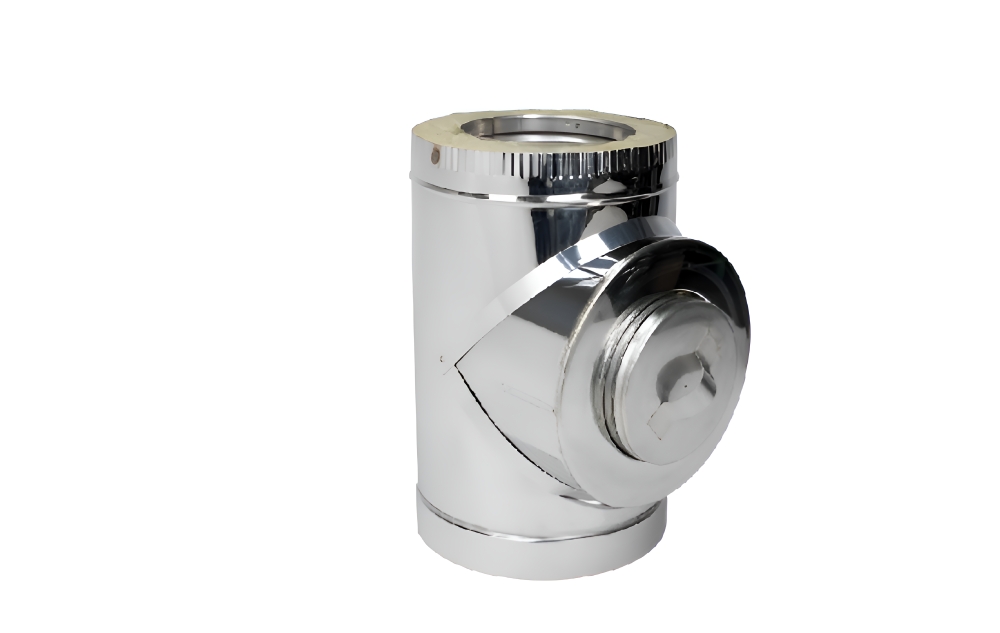

Insulated revision tee with round hatch
The indicated price is valid ordering till 05.09.2025.
Insulated revision tee (cleaning tee with cover, insulated cleaning tee) is a section of the inspection flue used to assess the condition of the flue and to remove soot from the flue. A condensate outlet (with outlet to the side or downwards) is usually added at the base of the inspection. Most often, the next stage (upwards) after the revision fitting is followed by a connection t-piece. The cleaning hatch is structurally a modification of the t-piece with a special cover (the cover may be insulated).
As an alternative to an insulated flue pipe revision tee with a round hatch, the condensate outlet can be used as a cleaning tee which is removable from below.
The insulated flue system is safe and convenient to use, and is certified, CE-marked and complies with the requirements of the current EU standard LVS EN-1856-1.

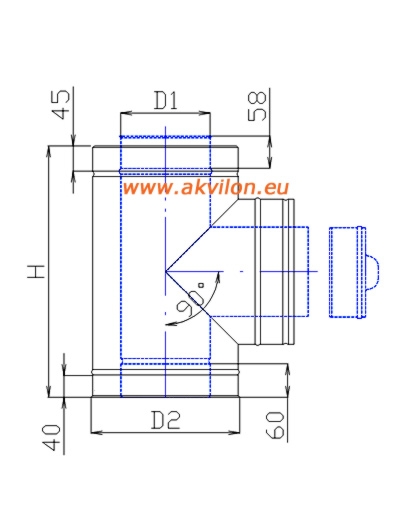

| D (mm) | 100/200 | 120/220 | 130/225 | 150/250 | 160/250 | 180/280 | 200/300 |
|---|---|---|---|---|---|---|---|
| H | 370 mm | 400 mm | 400 mm | 400 mm | |||
| Article | DNATN0010 | DNATN0012 | DNATN0013 | DNATN0015 | DNATN0016 | DNATN0018 | DNATN0020 |
| In stock | * on request | ** on request | yes | *** on request | yes | yes | yes |
Dn>200 mm on order within 3-10 working days
Adapters available in stock:
* From D-100 mm to D-130 mm
** From D-120 mm to D-130 mm
*** From D-150 mm to D-160 mm
Manufacturer: SIA Akvilon
Material and main features:
- inner tube: stainless steel AISI 304L/316L, wall thickness from 0,6 mm, longitudinal seam welded, connection with extension
- insulation: technical 50 mm 100kg/m³; operating temperature up to 680 °C
- temperature class T=600°C or T=450°C
- outer casing: stainless steel AISI 430 BA polished, 0.5 mm, longitudinal seam welded or factory rolled.
- outer casing on request: DX51+Z275 galvanized steel, painted steel (PE, PUR. PURMAT), powder-coated
Standard lengths (mm):
Diameter range (Dn): 100-800 mm
Certificate: CE, according to EN-1856-1
