Wall Support Bracket for Chimney (up to 350 mm)

Description and Purpose

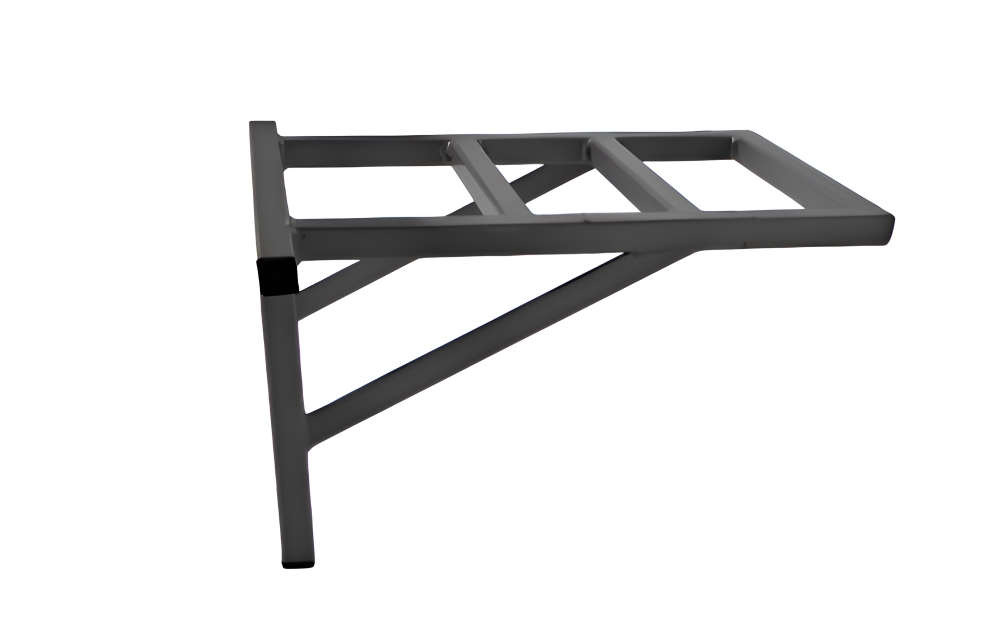

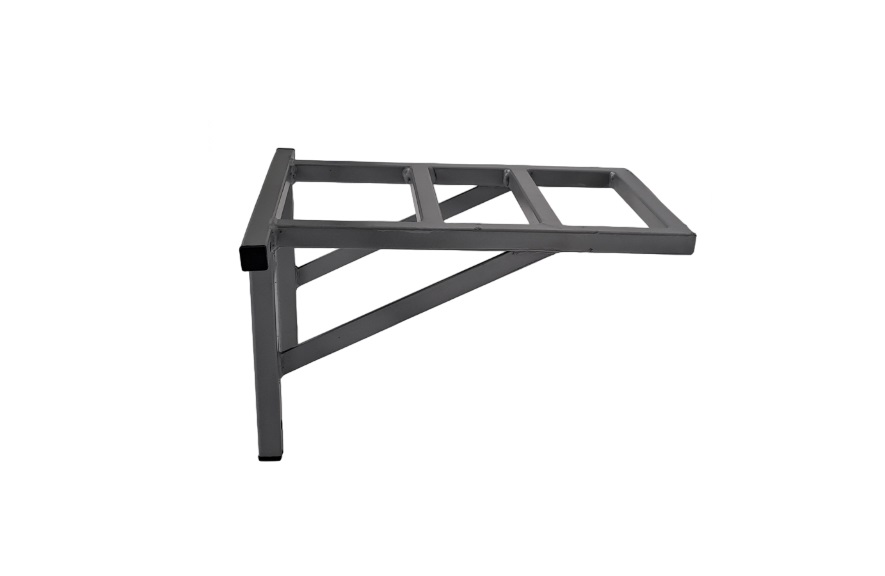

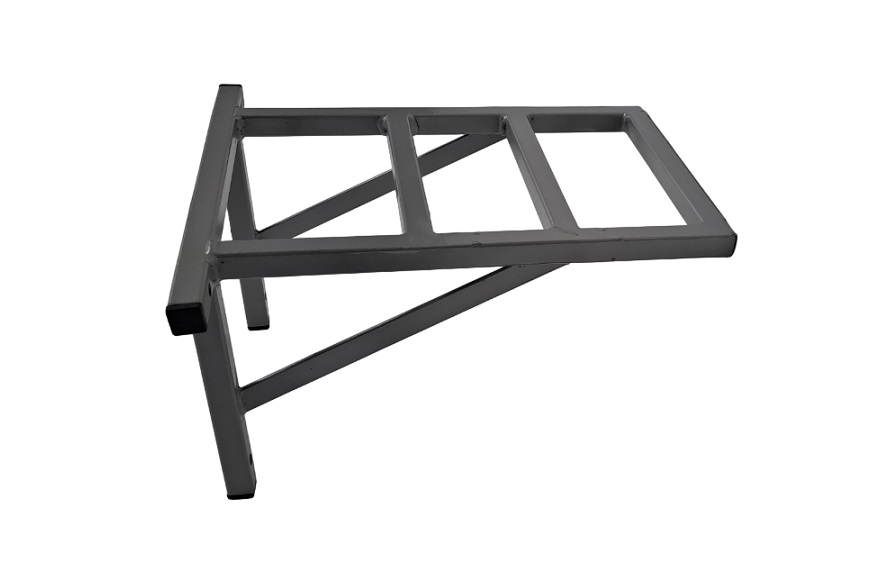

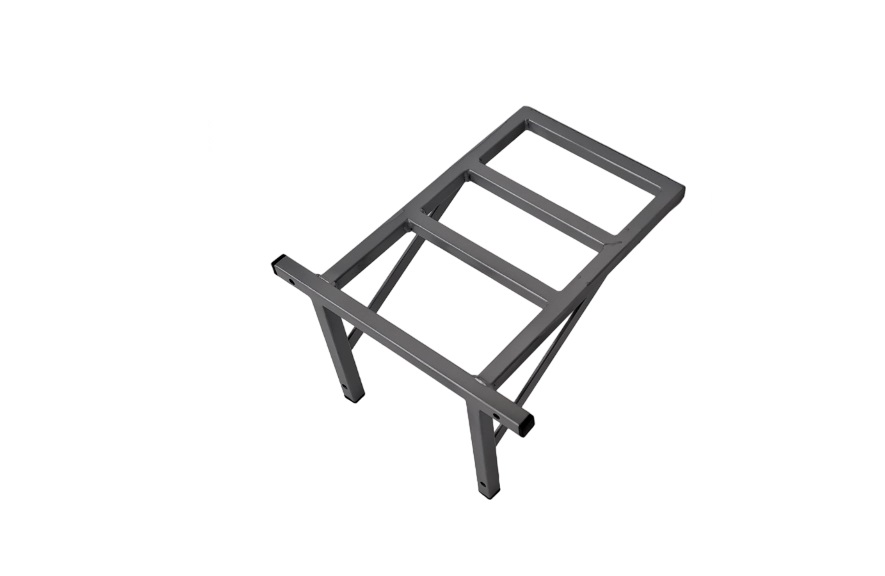

The Base Wall Support Bracket is the main load-bearing element (structural cantilever) that serves as the foundation for the vertical part of the chimney. Its task is to bear the entire weight of the chimney system and transfer the load to the building wall.

This model provides an offset (reach) from the wall of up to 350 mm. This allows for chimney installation while bypassing small eaves, projections, or facade decorative elements.

Key Advantages

• High Load Capacity: The powerful welded cantilever construction with a diagonal strut made of steel profiles is guaranteed to withstand the weight of a multi-meter insulated chimney, ensuring the stability of the entire system.

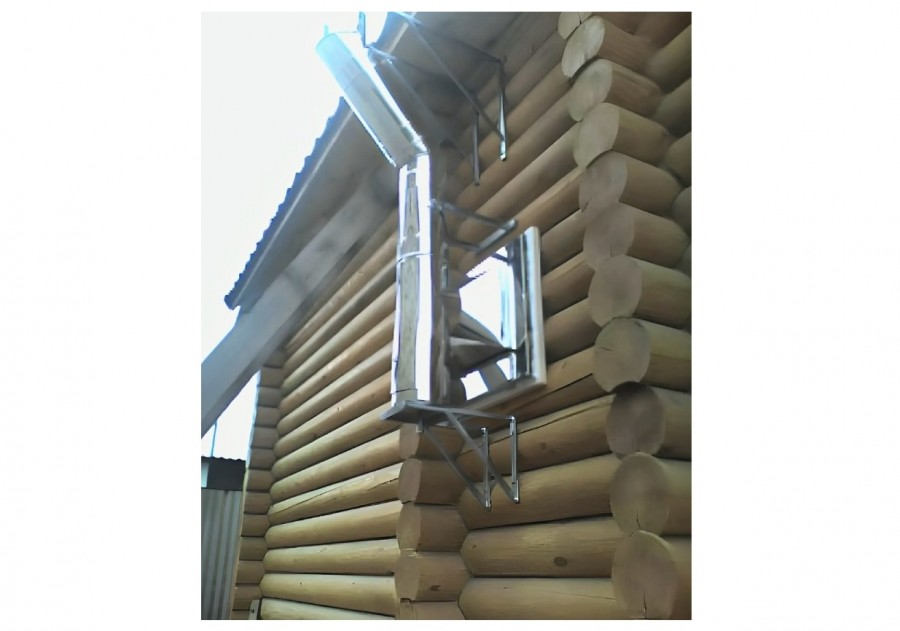

• Ease of Maintenance (Platform Scheme): This bracket acts as the base for installing the Base Support Platform. This configuration allows for a removable condensate collector system: for cleaning and inspection, you simply remove the bottom cap (tee cap) without dismantling the chimney itself.
• Aesthetics: The bracket has a neat appearance and can be painted to match the facade or roof color, blending harmoniously with the architectural look of the house.

Technical Specifications

The bracket is selected based on the required offset and the outer diameter of the chimney.

Other Offset Options

If the building architecture requires a larger distance from the wall (e.g., due to wide roof overhangs), choose the extended versions:

• Offset up to 450 mm
• Offset up to 550 mm

Important Installation Recommendations

• Wall Requirements: Given the significant weight of the chimney, the bracket must only be fastened to load-bearing walls (concrete, solid brick, timber beams). Fastening to decorative cladding or aerated concrete (foam blocks) without through-bolts is prohibited.
• Fasteners: Use heavy-duty facade anchors designed for high shear and pull-out loads.
• Alternative: For low heights and standard offsets, using multiple reinforced adjustable brackets is sometimes permissible, but this Base Support Bracket is the more reliable and professional solution for creating a true "foundation".
