Wall mount adjustable 550-650 mm
The indicated price is valid ordering till 05.09.2025.

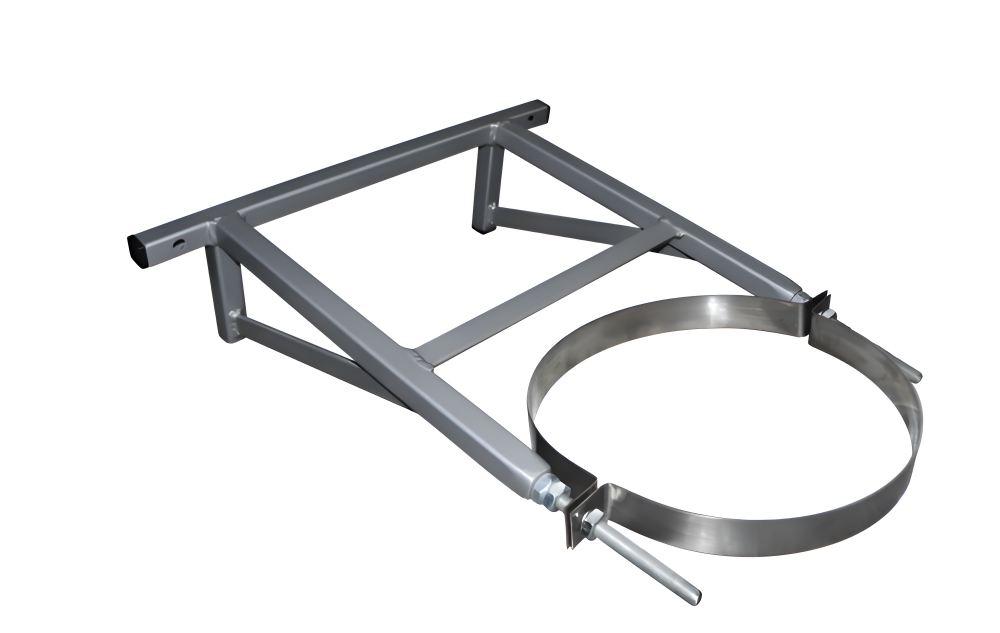

Insulated flue wall mount adjustable - used for fixing flue elements to the wall. The distance from the wall can be adjusted between 550 mm and 650 mm by means of threaded rods (which are embedded in the bracket structure). Due to the possibility of adjusting the distance from the wall, the flue pipe can be installed exactly vertically when the wall surface is uneven. We recommend installing wall mounts every 2 metres, but if the distance from the wall and/or the diameter of the flue increases, the mounting step should be reduced.
When using such mounts (at wall distances up to 500 mm) - the installation of a mounting bracket at the bottom of the flue is not necessary, as the mount is a rigid welded construction that can withstand not only the weight of the flue, but also additional loads - wind, snow.
If the distance from the wall exceeds 500 mm, we recommend installing an additional mounting bracket at the bottom of the flue riser.
Insulated flue wall mount adjustable 550- 650 mm - the distance from the wall can be adjusted between 550-650 mm
Non-standard wall mount adjustable (x - x + 100) - can be adjusted to x - x + 100 mm from the wall (on request, customer dimensions)

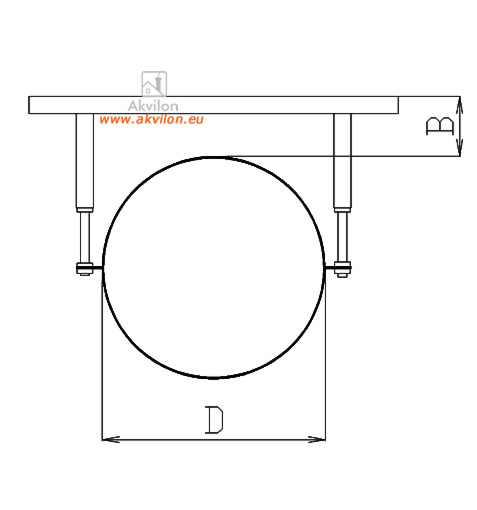

| Diameter | Regulation (B) | Article | In stock |
|---|---|---|---|
| 200 | 550-650 | DN1DMR5010 | on request |
| 225 | 550-650 | DN1DMR5013 | on request |
| 250 | 550-650 | DN1DMR5016 | on request |
| 280 | 550-650 | DN1DMR5018 | on request |
| 300 | 550-650 | DN1DMR5020 | on request |
Manufacturer: SIA Akvilon
Materials and main characteristics:
- temperature class T=600°C or T=450°C
- material: S235 or 304 stainless steel. Profiled tubes (depending on bracket size): 20x20x1,5; 20x20x2,0; 25x25x2,0; 30x30x2,0;
- Post-processing
- powder coating RAL9006
- stainless steel welded seam grinding
- galvanising
Diameter range (Dn): 200-900 mm
Certificate: CE, according to EN-1856-1 and EN-1090-2 (welded construction)
