Chimney Rain Cap with Spark Arrestor
code: dvjva0100
manufacturer: AKVILON
In stock, cnt.
€5070Without VAT 41.90 €
Choose a size
Price includes VAT 21%.
The indicated price is valid ordering till 12.09.2026.
The indicated price is valid ordering till 12.09.2026.

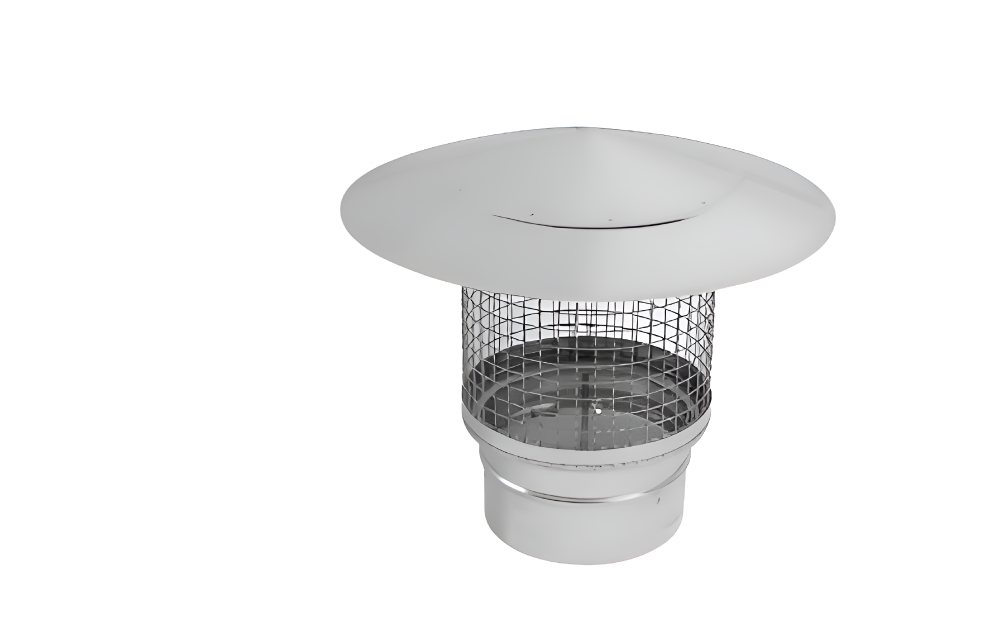

Chimney Rain Cap with Spark Arrestor
Description and Purpose
The Chimney Rain Cap with Spark Arrestor is a specialized chimney top element that performs a dual function: protecting the channel from precipitation and preventing hot particles (sparks) from flying out.
This is a mandatory element for bathhouses, saunas, houses with roofs made of combustible materials (bitumen shingles, thatch, ondulin), or if there are tall trees growing near the house.
Working Principle
- Spark extinguishing: Flue gases hit the cap lid, change direction, and pass through a fine wire mesh. Upon contact with the metal, sparks break up and cool down without leaving the pipe limits.
- Fauna protection: The mesh serves as a reliable physical barrier for birds and small animals, preventing them from building nests inside the chimney.
Technical Specifications
The item is installed inside the pipe or terminal cone (Male connection).
| Product type | Spark Arrestor Cap |
| Material | Stainless steel AISI 304 / 316L (Acid-resistant) |
| Steel thickness | 0.6 mm |
| Mesh size | 10x10 mm or 20x20 mm |
| Available diameters | 100, 120, 130, 150, 160, 180, 200 mm |
Maintenance and Usage
Installing a mesh creates additional resistance to smoke outflow. To avoid draft problems, follow these rules:
- Fuel: It is strictly not recommended to use wet wood or resinous wood species (spruce, pine). Resin and soot clog the mesh cells very quickly.
- Cleaning: The mesh must be checked and cleaned at least 1-2 times a season. A clogged mesh can cause smoke to back up into the house.
- Alternative: If you have a non-combustible roof and no special fire safety requirements, choose a standard rain cap without mesh for better draft.
