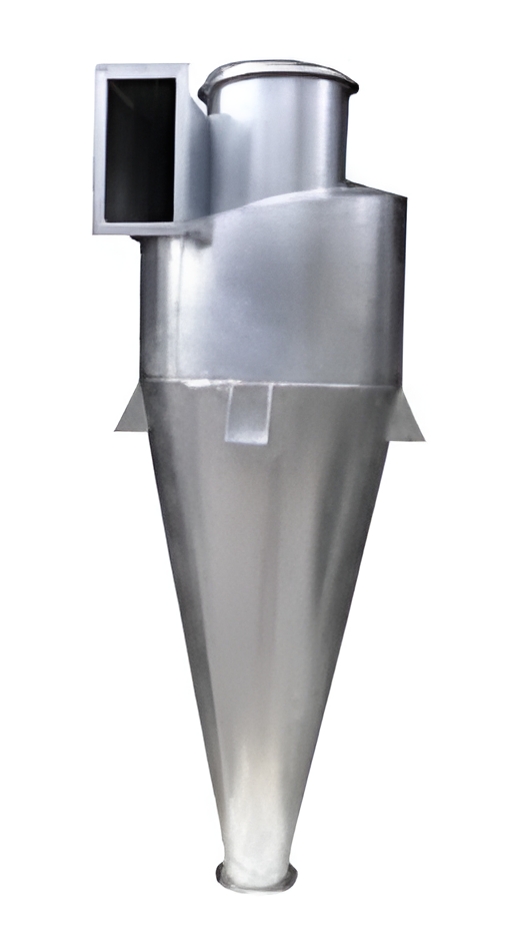

Aspiration systems Cyclone

Cyclones are centrifugal collectors of dust and fine particles. They are simple in design, economical and reliable in operation. Air cleaning efficiency in cyclones reaches 97-98%, and in modernised cyclones up to 99%.

The cyclone's operating principle is based on the transfer of rotational motion to the air flow between the outer and inner cylinders and on the use of centrifugal forces to separate dust from the flow. The use of a cyclone helps to protect the filter material, which receives the air after the cyclone, from being overloaded with large particles.

The cyclone is suitable for a capacity of 1,000-62,500 m3/h (fan not included).

Support legs and other structural elements not included, shipped separately.

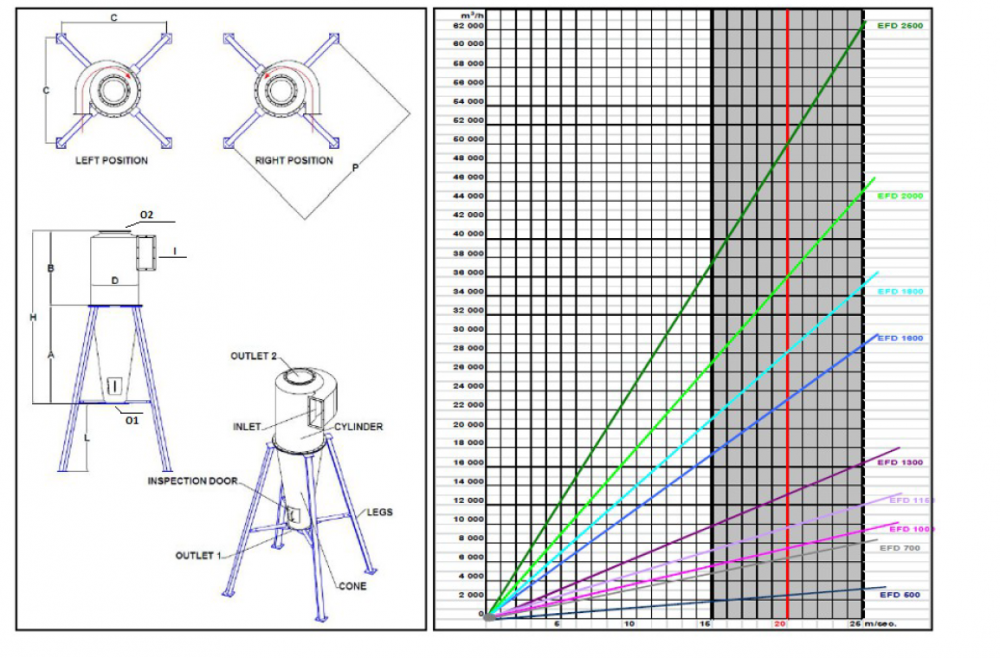

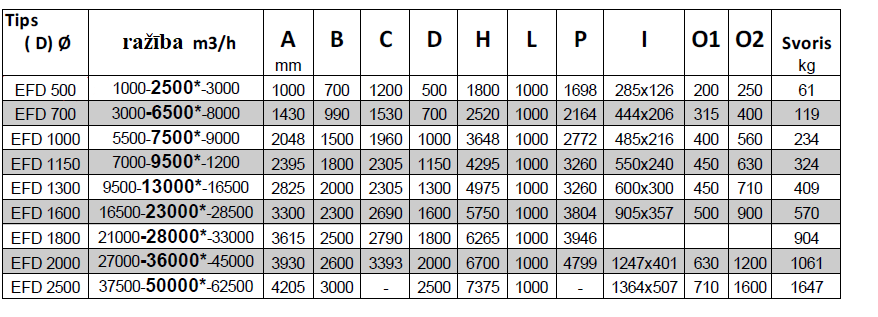

For technical description of dimensions and technology, see technical information.

For orders (article numbers):

Model

EFD500

EFD700

EFD1000

EFD1150

EFD1300

EFD1600

EFD1800

EFD2000

EFD2500

Article

In stock

Order lead time: 15-30 working days.

Manufacturer: SIA Akvilon

Material and main features:

• Material: DX51+Z275 galvanized steel (standard), S235 steel

• Thickness: 0,7-2,00 mm

• Connection: flanges, clamps (not supplied, sold separately)

Certificate:
